300 SERIES | Stonewood Industrial Machinery | Wide Belt Sanders

  • Power:
    230/460V 3PH
  • Description

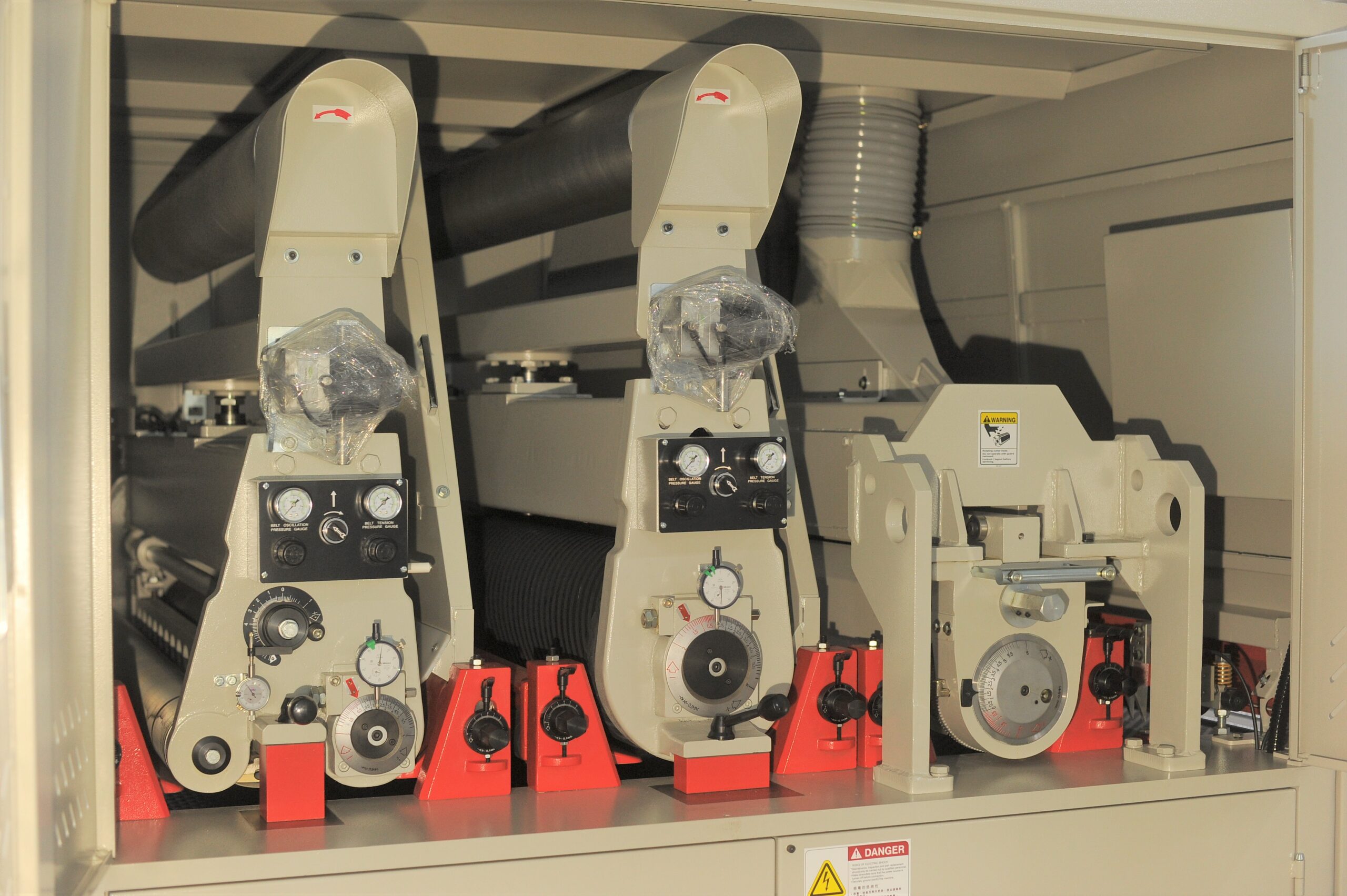

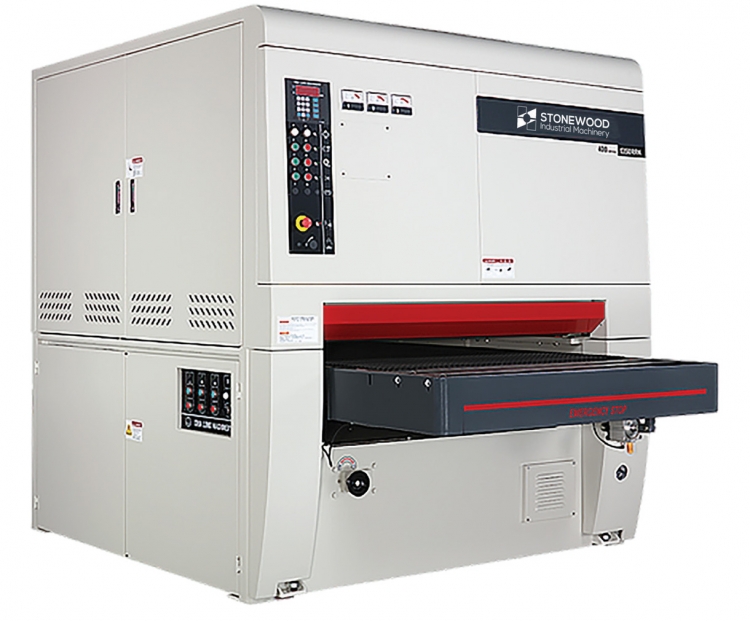

    The Stonewood 300 Series wide belt sander is available in the versions from 1 to 4 working units. There are spiral planer head, contact drum, pad unit, combined head and polishing units and various options for versatile application, from surface calibration to final polish for solid wood, veneered or lacquer sanding. STANDARD EQUIPMENT:

    *Pressure shoes to set level of pressure over feed table

    *Simple and quick seting for precise table height adjustment

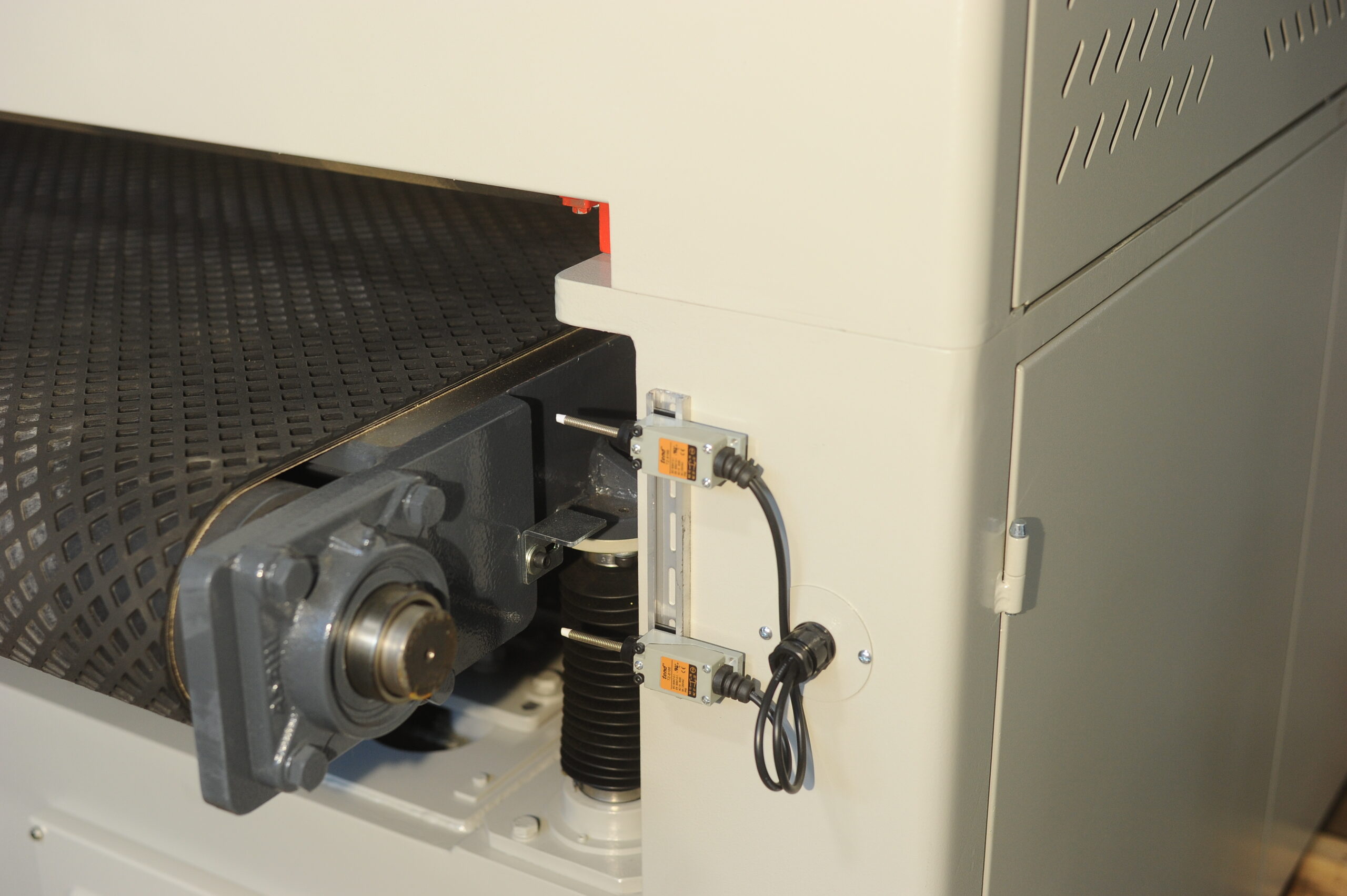

    *Pneumatic control to automatically center feed belt on feed table

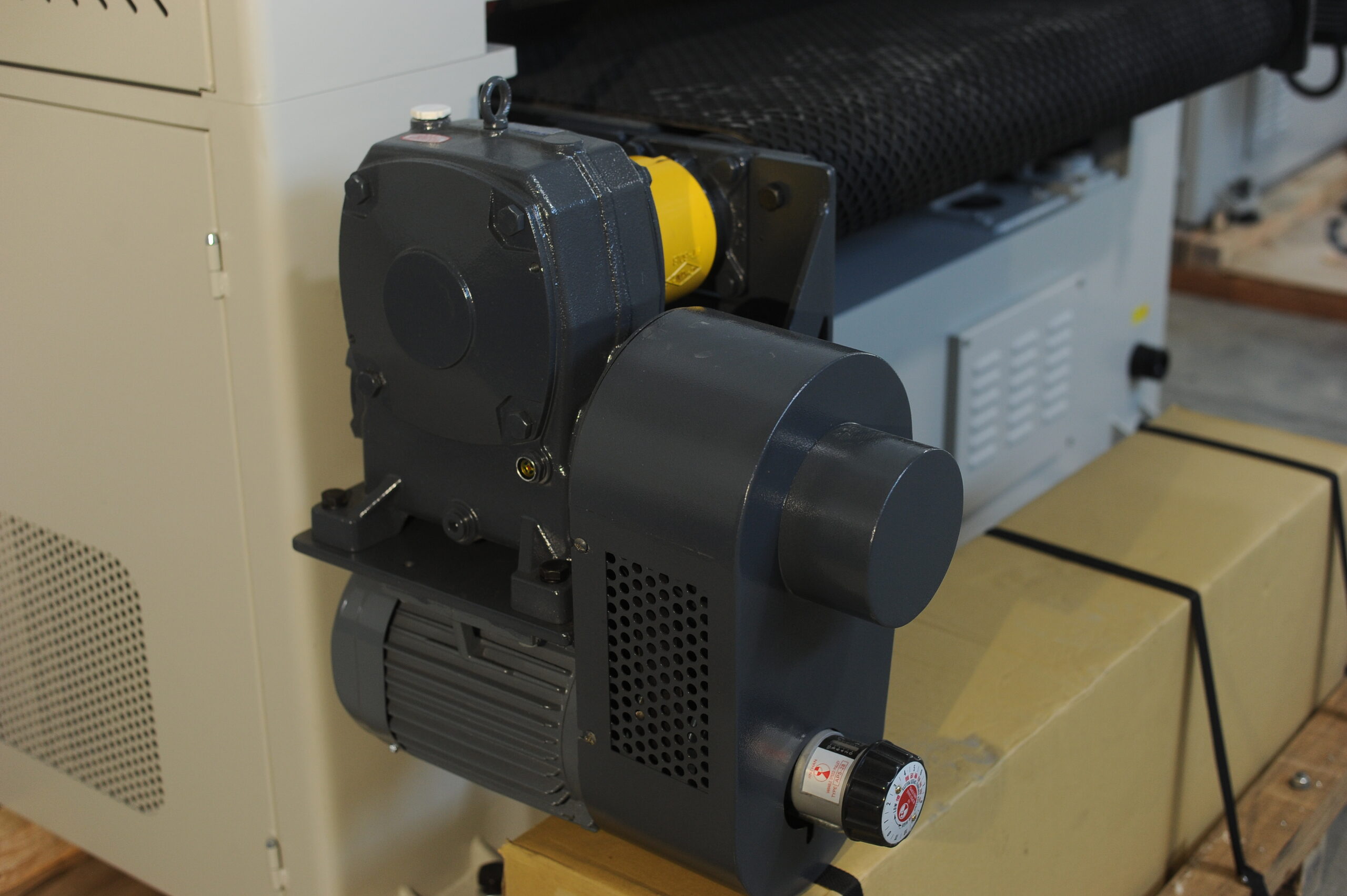

    *Variable speed drive to offer complete range of speeds for material and/or paint characteristics

    *Anti-kickback finger, grooved rubber roller and sectional pressure shoe for cutterhead pressure

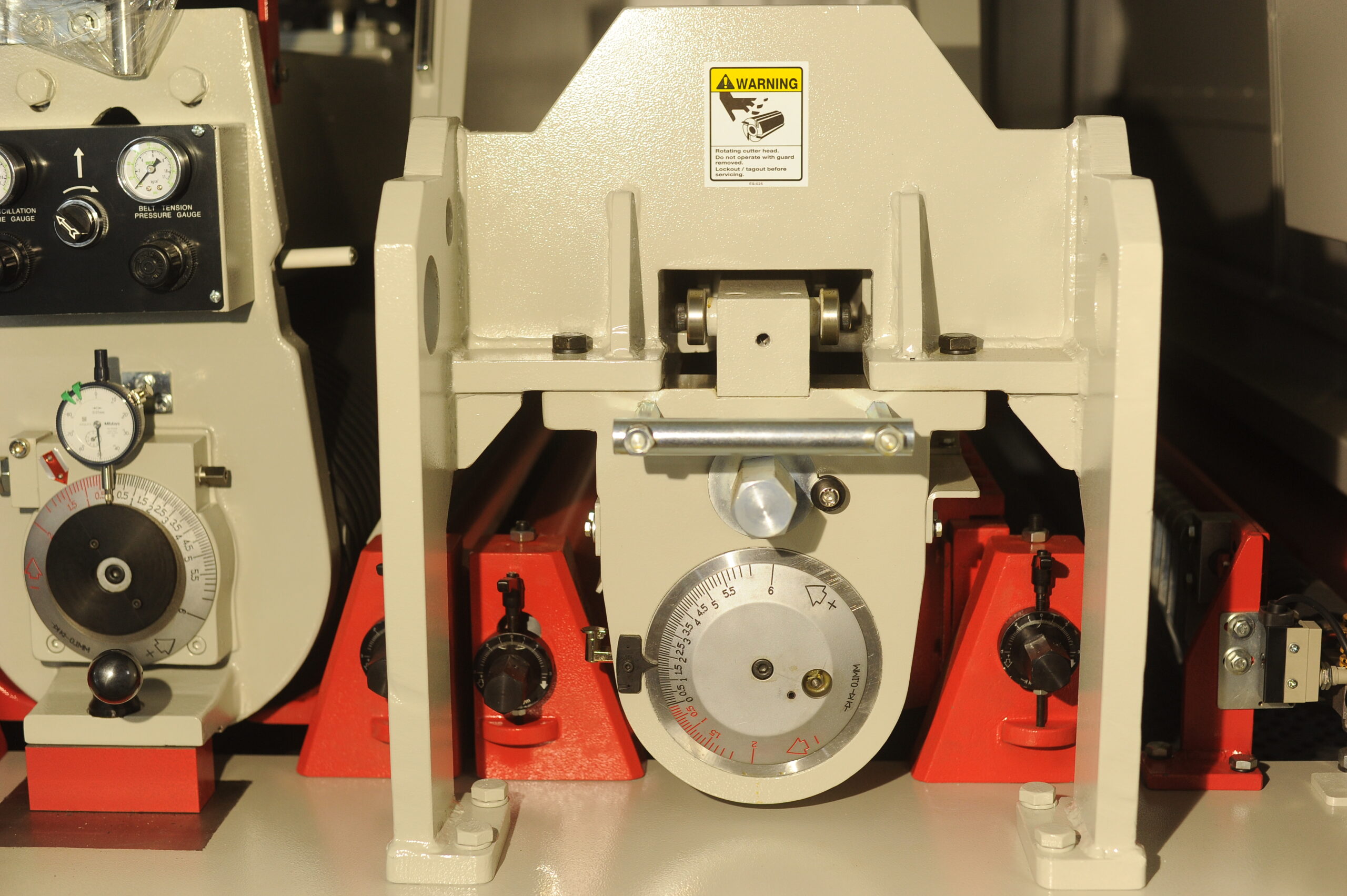

    P-HEAD Adjustable Spiral Cutterhead

    *40HP 230/460V

    *8 rows 15x15x2.5mm

    *Steel body for heavy planning

    *Low-noise, fast and efficient stock removal

    *With throw-away carbide knives

    *Anti-kickback fingers for safety operation

    *Front independent segment pressure shoes for workpiece guidance R-HEAD Contact Roller for Calibrating

    *30HP 230/460V

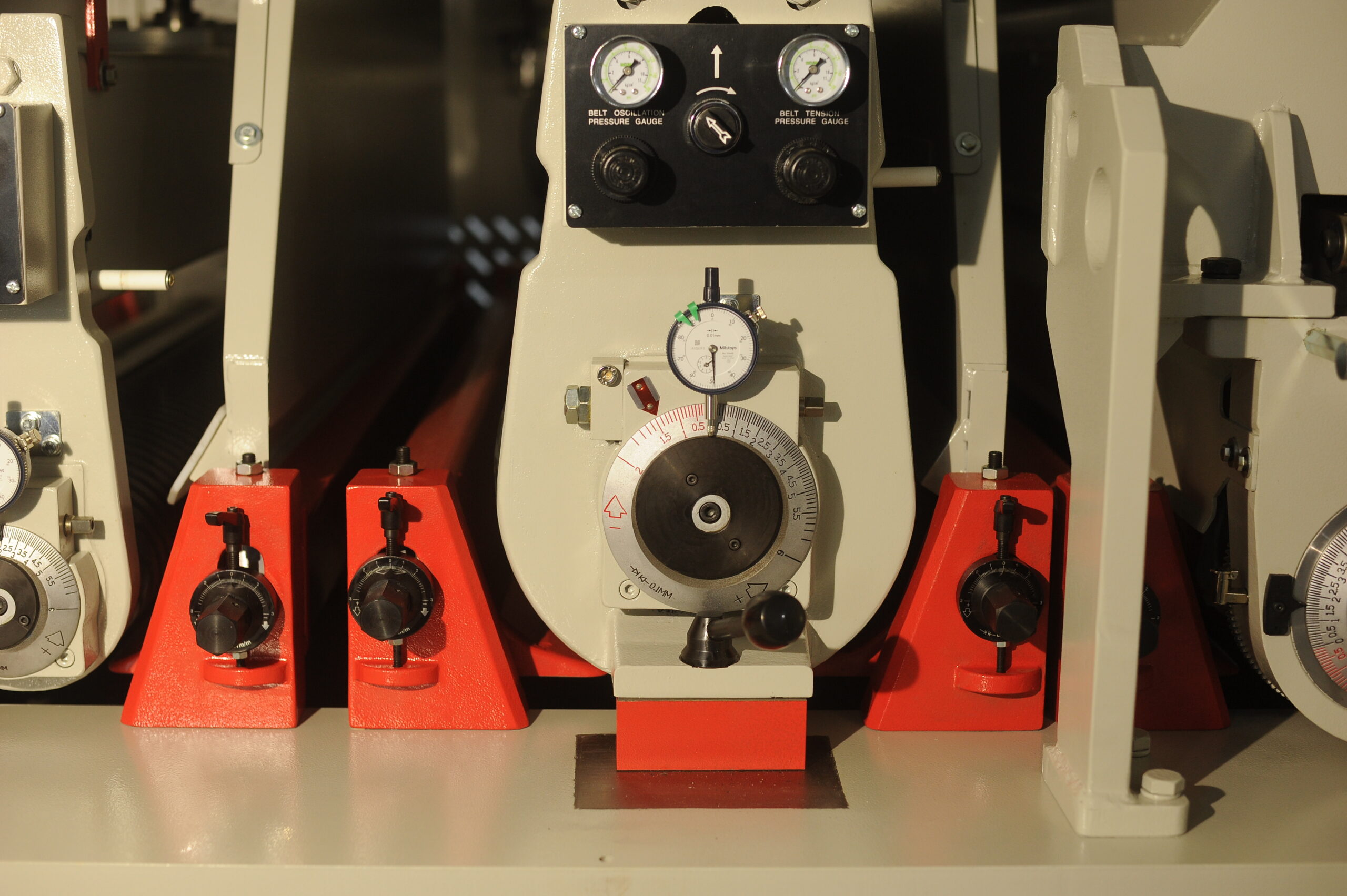

    *Contact roller with steel or rubber coating in various hardnesses, depending on the sanding job to be performed

    *Hard rubber coating for precise thickness controlling

    *Soft rubber coating for veneer and lacquer sanding

    *The contact rollers are adjustable for various abrasive applications C-HEAD Combination Head

    *20HP 230/460V

    *Incorporates a combination contact roller and finishing pad with one sanding belt

    *Allows the combined or independent use of both unit

    *Rigid pad (standard)/Air cushion pad (option)

    *Contact roller and finishing pad are height adjustable K-HEAD Pad for Finish Sanding

    *20HP 230/460V

    *Finish sanding with sanding pad produces high quality surfaces (sanding pad is height adjustable)

    *Two operating modes, rigid pad (standard) and air pad (option) with air filled into pad assembly for increasing finishing effect by the optimum sanding pressure adjusted
