Description

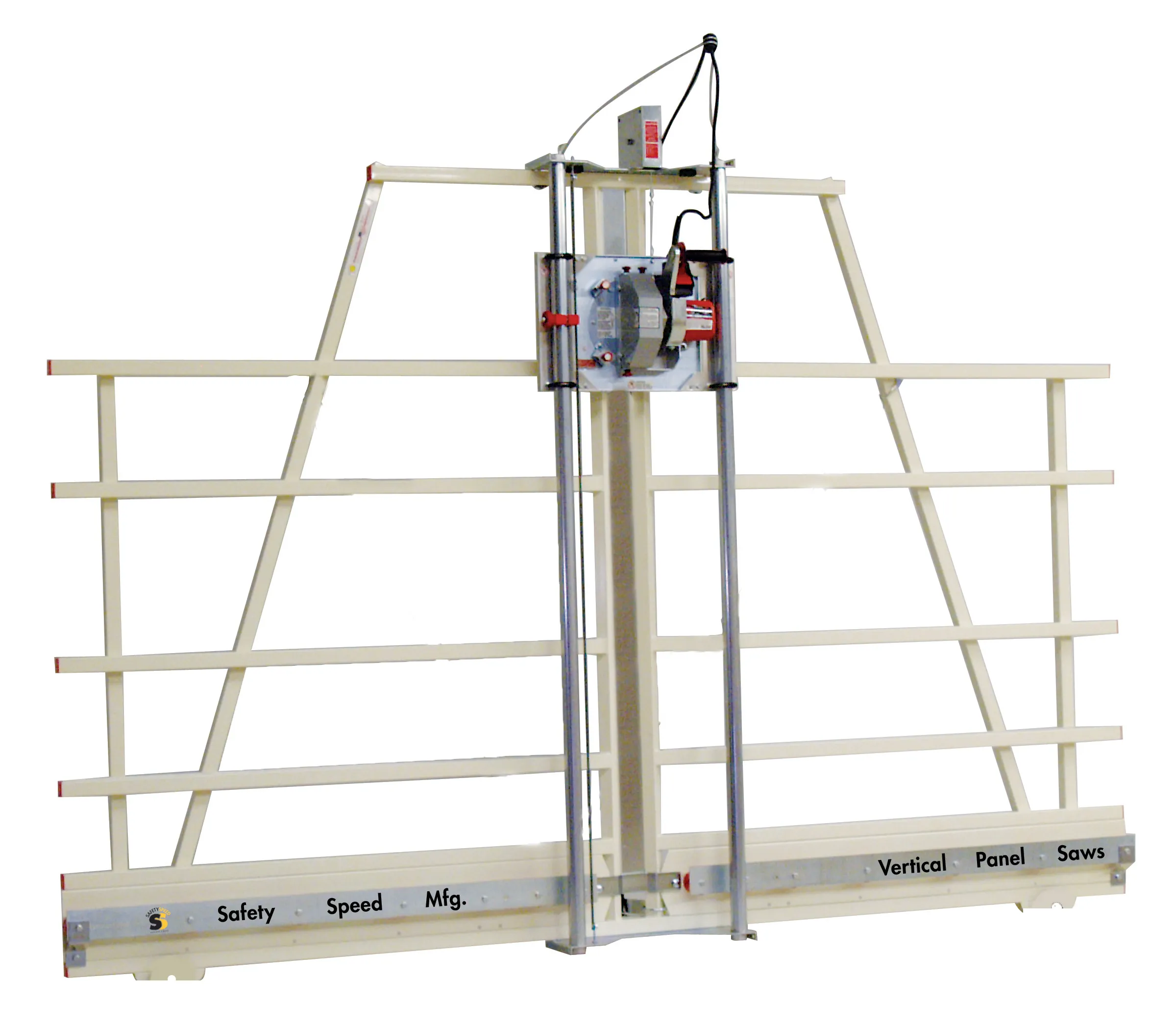

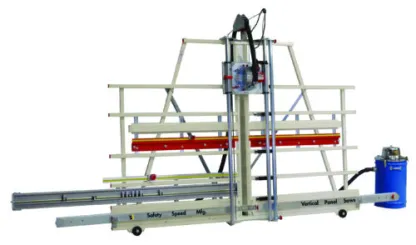

The H-Series offers 50”, 64”, or 74” maximum crosscuts. Unlimited length ripcuts are made possible by a rotating saw head allowing you to lock it in place at 90 degree increments for performing rip (horizontal) or crosscuts (vertical). The only difference between the H4, H5, and H6 models are that they provide 50″(H4), 64″(H5), and 74″(H6) maximum crosscuts. Photos are shown with a stand, and wheels which are optional accessories
-
Specs
Weight|H4-244 lbs; H5-298 lbs; H6-359 lbs
Dimensions|H4-120 × 11 × 70 in; H5- 120 × 11 × 83 in; H6-120 × 11 × 95 in
Max. Crosscut|H4-50″/1270mm;H5-64″/1625mm; H6-74″/1850mm
Max. Rip Cut|Unlimited
Cut Depth|1 ¾”/45mm
Cut Accuracy|1/32″/.8mm
Frame Length|120″/3050mm
Daily Usage|1-3 Hours
Saw Blade Diameter|8″/210mm
Rollers|14
Motor amps and volts|15 amp, 120 Volt, 7.5 amp, 220 Volt
Motor Manufacturer|Milwaukee Tool -
