CONTROL | Striebig | Panel Saws

  • Power:
    7.5HP 220/440V 3PH
  • Description

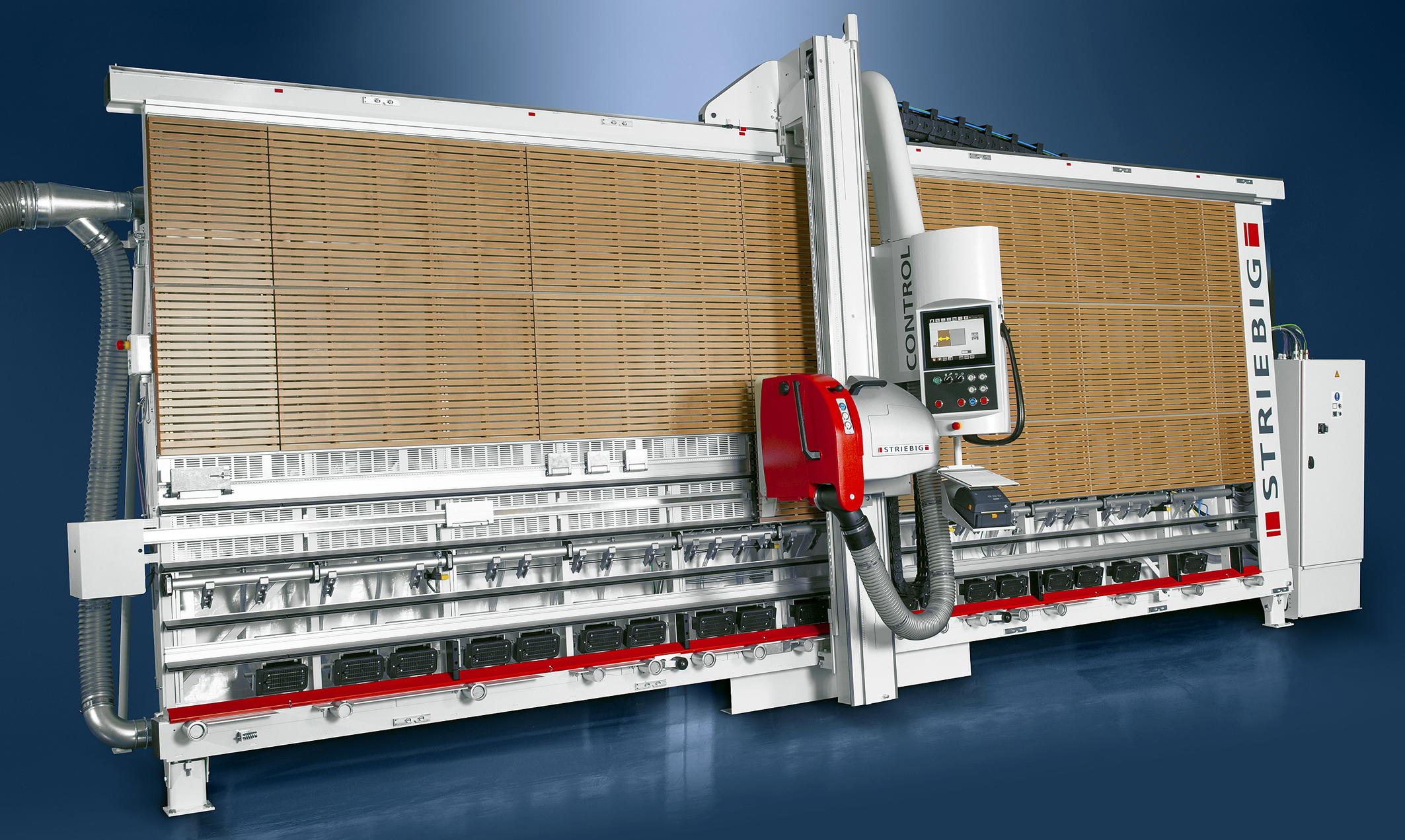

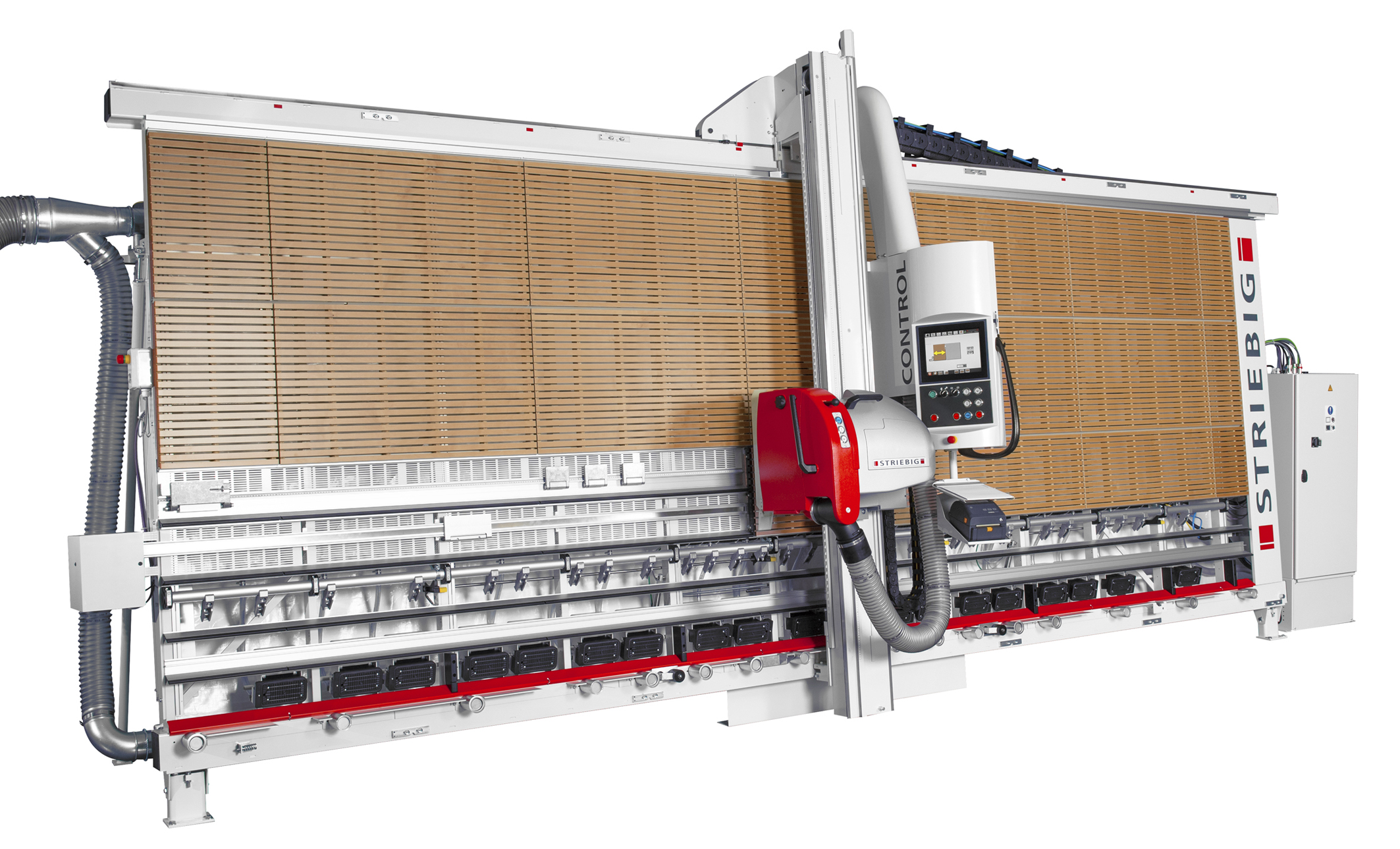

    The Control has a higher degree of automation, and is equipped with additional options. Just as the Evolution is the world’s most advanced manual panel saw, the Striebig Control is the world’s most advanced (non-CNC) automatic traveling vertical panel saw. Take all of the features and options of the Evolution; the touch screen, the full wood back support, digital measuring, the automated locking and pivoting of the saw head, locking of the saw beam and rollers, etc., and add automatic travel of the saw in both axes. But it is not just the convenience of the operator not having to move the saw manually! It will cut more parts by being more productive.

    Besides variable (and consistent) feed speed, the Control has a panel end sensor, so it stops at the end of the sheet, not at the end of the machine. Similarly, it has memory for where it started the cut and returns to that point, again, not all the way to the other end or top of the machine. It also includes a cycle selector switch so you can have it wait at the end of a cut to give you time to off-load the last piece before the saw returns.

    Two more reasons an automatic saw is more productive: on an automatic saw, the operator can be off-loading the last piece while the saw is returning. On a manual saw, that is two separate functions. Also the operator has both hands free to tend to the piece being cut, especially when the top piece of a horizontal cut may be a large, heavy piece.

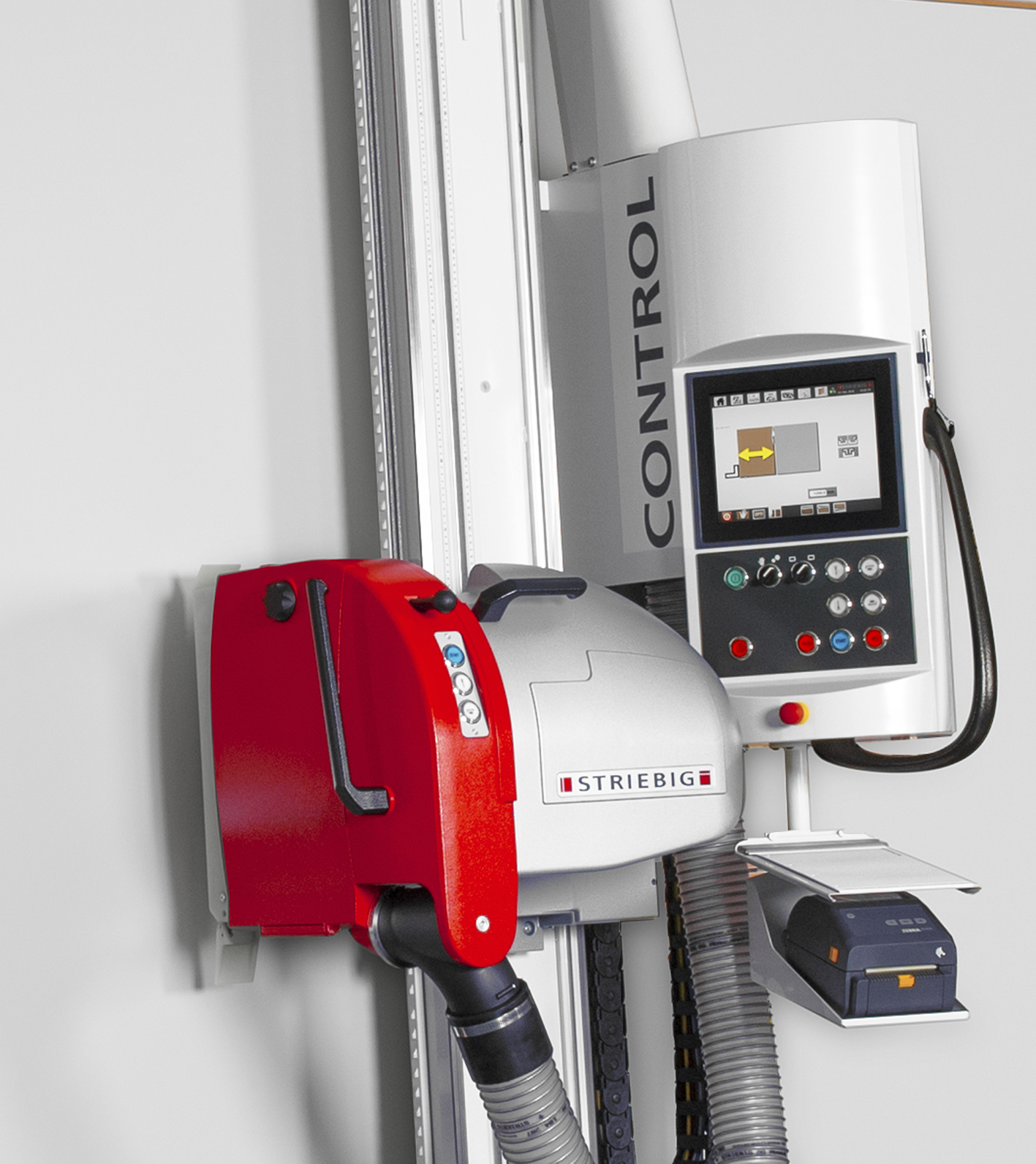

    One of the best and most productive features of the Control is the EPS.Y electronic positioning of the saw head for horizontal cuts. This is in place of the digital measuring on an Evolution. The operator enters the desired dimension of the rip cut (or chooses it from a list), whether from the top or from the bottom of the sheet, confirms, and the saw head goes to that positions and locks itself, ready to make the cut. This is especially great for doing repeat rip cuts from the top of the sheet down, as there is a “repeat” icon for the last dimension cut. The EPS.Y feature can also find the top of the panel and set the saw head for a trim cut that you’ve determined in the parameters!

  • Specs

    Cut capacities*:14’ 1”L, 5’ 6”Hvert, 5’ ½” Hhorz; Depth 3-1/8” (80 mm)
    *larger standard frame sizes with cut capacities to 7’4” x 17’4” and special frame sizes with cut capacities up to 10’ x 50’ available upon request
    Machine dimensions: 18’ 5”L, 8’ 1”H, 4’ 11” D (free-standing); plus 2’W x 1’D x 4’8”H control box at right end of machine
    Weight: 1950 lbs., (approx. 2980 lbs. shipping)
    Electrical requirements:3-phase, 220V/20 Amp or 440V/10 Amp service; right side of frame3-phase, 220V, 30A min. circuit
    Dust collection: 1000cfm (min), 140mm dia. connection
    Compressed Air: 100 psi, 3 cfm (air dryer strongly recommended)
