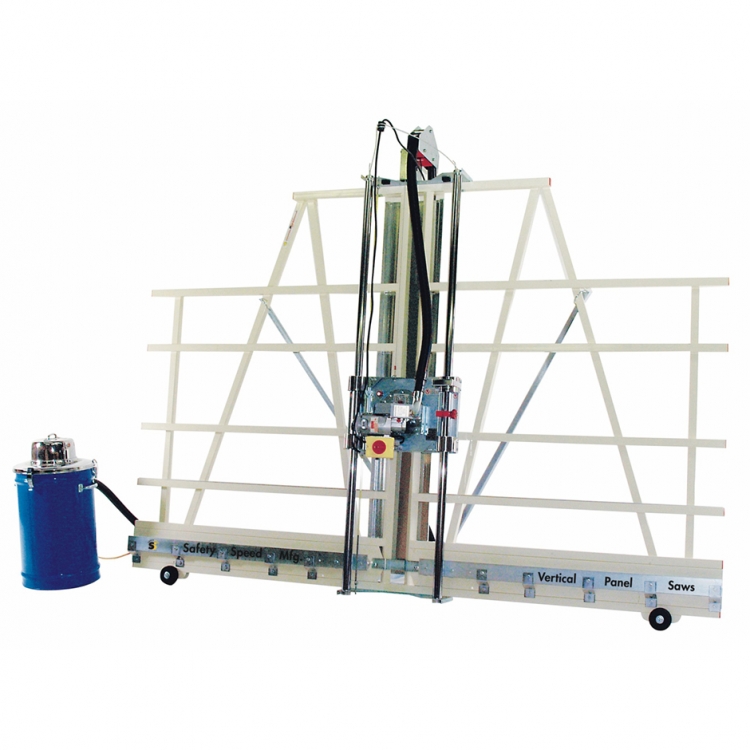

6400&6800 | Safety Speed | Panel Saws

  • Power:
    3HP
  • Description

    Featuring a heavy duty worm drive motor, additional steel welded on a diagonal plane within the frame providing additional support for cutting heavier material, aluminum rollers and double bearings, this machine will provides a cut accuracy of 1/64″, straight and square. Standard Equipment:


    *3 Hp worm driven heavy-duty saw motor.

    *10 ft. welded steel frame.

    *Chrome-plated 1 3/4″ guide tubes.

    *8 Nylatron roller bearing systems.

    *Adjustable vertical and horizontal rulers.

    *Quick change from vertical to horizontal cutting.

    *Thin material pressure guard.

    *Solid aluminum material rollers.

    *Enclosed counterweight system.

    *Integrated dust collection bonnet.

    *TUV certified to UL/CSA standards.

  • Specs

    Weight|6400-598 lbs; 6800- 660 lbs

    Dimensions|6400-124 × 17 × 92 in; 6800-124 × 17 × 98 in

    Max. Crosscut|6400-64″/1625mm; 6800-74″/1850mm

    Max. Rip Cut|Unlimited

    Cut Depth|1 ¾”/45mm

    Cut Accuracy|1/64″/.4mm

    Frame Length|120″/3050mm

    Daily Usage|3-5 Hours

    Rollers|14

    Saw Blade Diameter|8″/210mm

    Motor|13 amp, 120V
  • Download
