Description

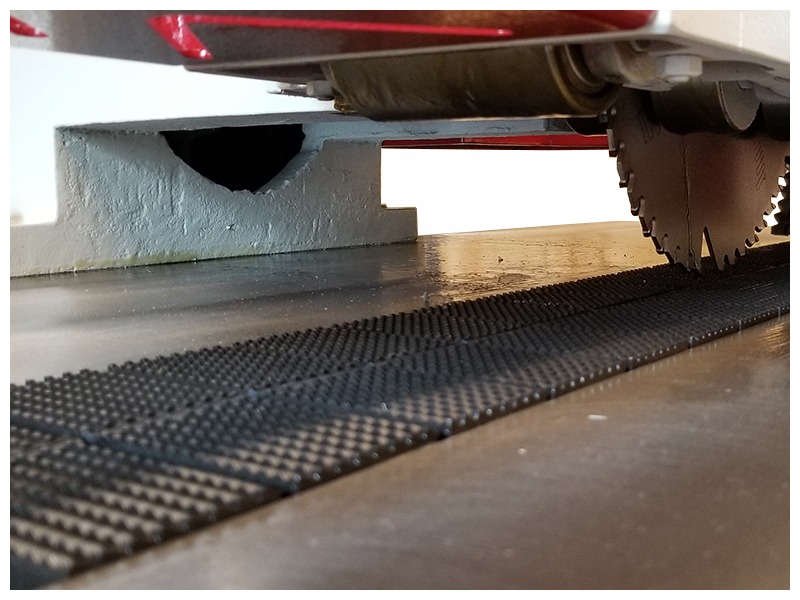

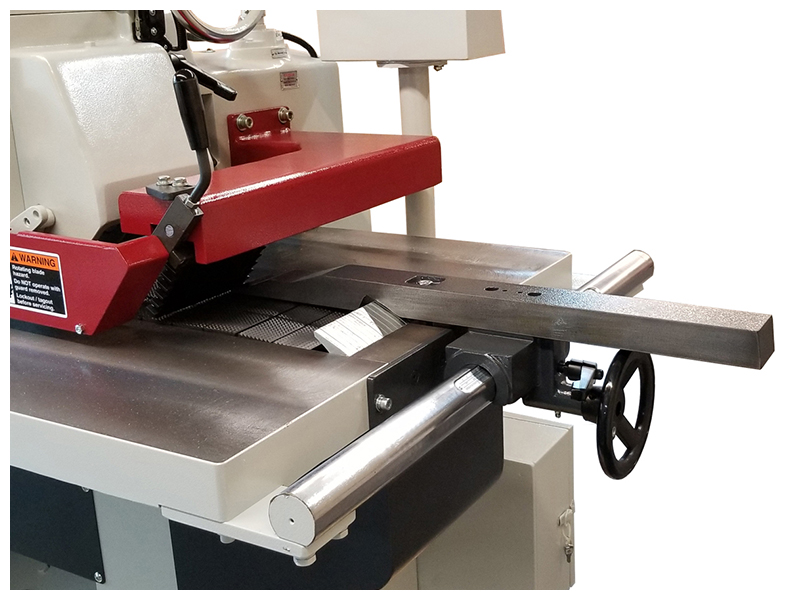

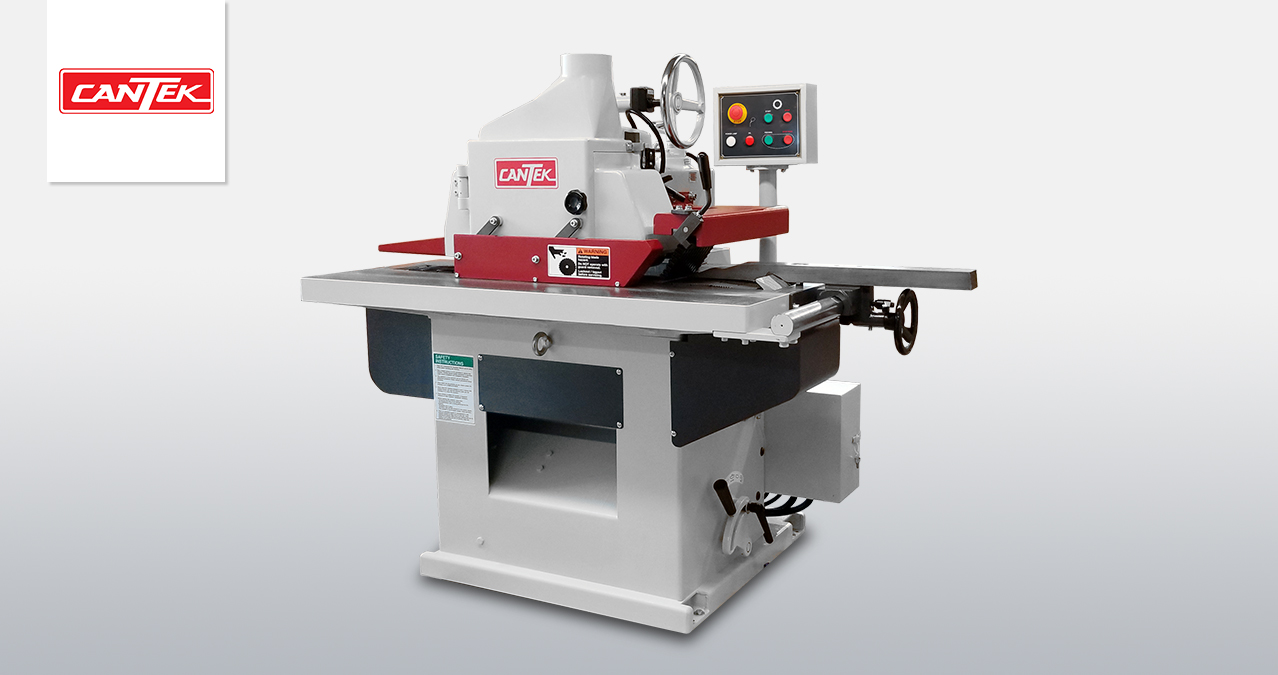

The CANTEK 303S Straight Line Ripsaw is a straight line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. The 303S automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12” blade provides a cutting depth up to 3.35”. A micro adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments.
-
Specs

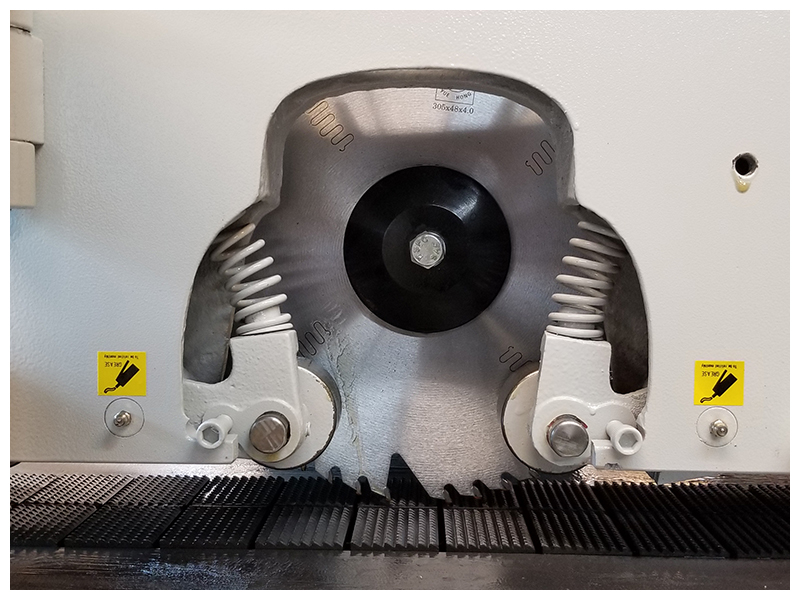

Saw arbor diameter 1″ Saw blade diameter 8 – 12″
Saw arbor speed 4500 RPM
Feed speeds 3 (50, 65, 85 FPM)
Maximum workpiece thickness 3.35″
Minimum workpiece length 8″

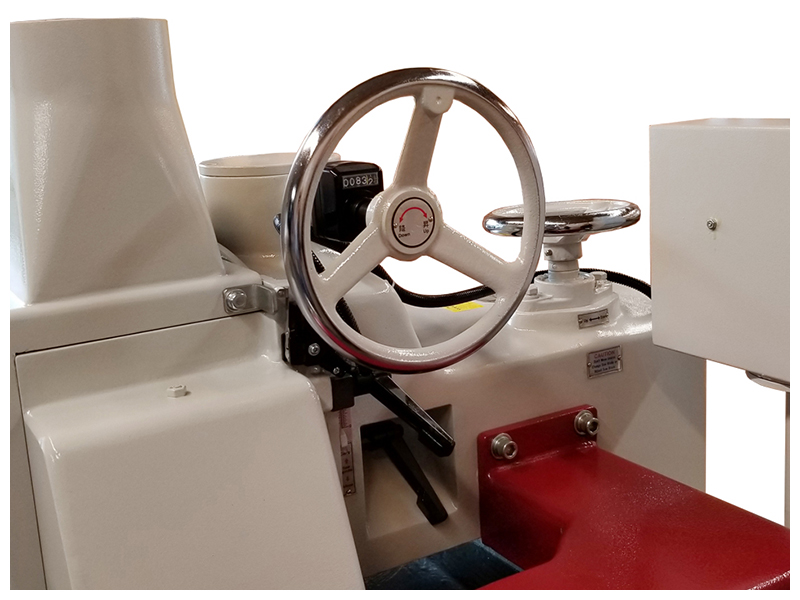

Pressure rollers 4 rows (6 rollers)
Distance between saw and column 13 ¾”
Arbor motor 10 HP
Feed motor 1 HP
Table size 30″ x 50″
Table height 31-7/8″
Net weight 1870 Lbs
Shipping weight 2310 Lbs
Machine dimensions 61″ x 38″ x 53″
Shipping dimensions 59″ x 46″ x 59″
Electrical requirements 230/3/60 = 32.2 Full Load Amps -
