Description

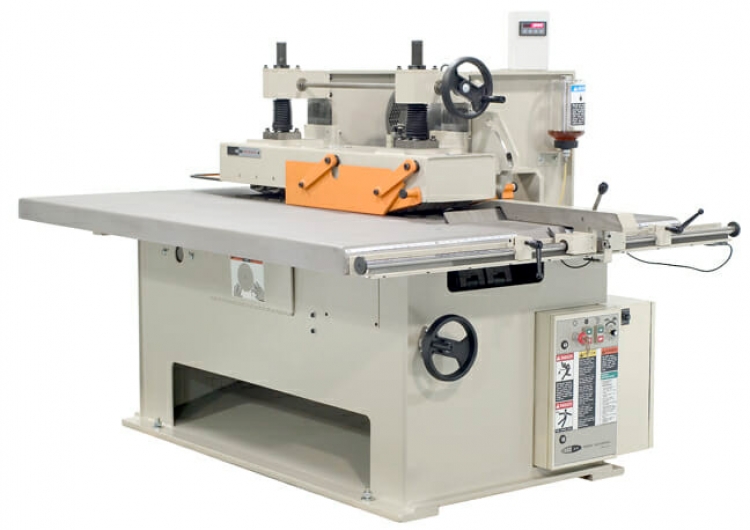

Over 85 years of rip saw manufacturing experience has been put to use developing the SL series of full-sized straight line rip saws. The SL-65 features a 20 HP arbor motor, vertical arbor adjustment, a maximum stock capacity of 4.25” and a 3 HP variable speed drive for maximum speeds with any stock. Diehl’s proven chain/race, spindle/arbor and pressure roll system make up the foundation for this saw that produces the industry’s most accurate glue line cut, guaranteed. The Diehl SL-65 is the rip saw that you can depend on for demanding production operations.
-
Specs
Arbor Motor: 20 HP (15 Kw), 25 HP (18.75 Kw)’30 HP DMD (22.5 Kw), & 40 HP DMD (30 Kw optional Feed Motor: 3 HP (2.25 Kw) Feed Speed: variable, 75 – 200 FPM (22 – 61 mpm) Minimum Thickness: 3/8” (10 mm) Maximum Thickness w/14” (355 mm) blade: 1.5” (38 mm) Maximum Thickness w/18” (457 mm) blade: 4.25” (108 mm) Minimum Length: 12” (305 mm) Saw Blade Arbor Bore: 2” (50.8 mm) Throat Capacity: 19” (482 mm) Arbor RPM Belt Driven: 3450 Accurate Glue Line Cut (either straight or hollow): up to 8’ (1.5 m) Voltages Available: 208/240/480/575, 3 phase, 60 cycle 380, 3 phase, 50 cycle w/110 control circuit Spindle Brake: Automatic Vacuum: 1 – 6” (152 mm) and 1 – 3” (76 mm) opening 1250 CFM (35 cmm) required Upper Anti-Kickback Fingers w/Cam Controlled Height Lower Anti-Kickback Fingers in Table Dimensions: 87” (2217 mm) L x 54” (1372 mm) W x 56” (1423 mm) H Weight: net 4500 lbs. (2025 kg), crated 4,900 lbs. (2222 kg), crated for export shipment 5300 lbs. (2404 kg) Worktable Height: nominal 34” (864 mm) -
