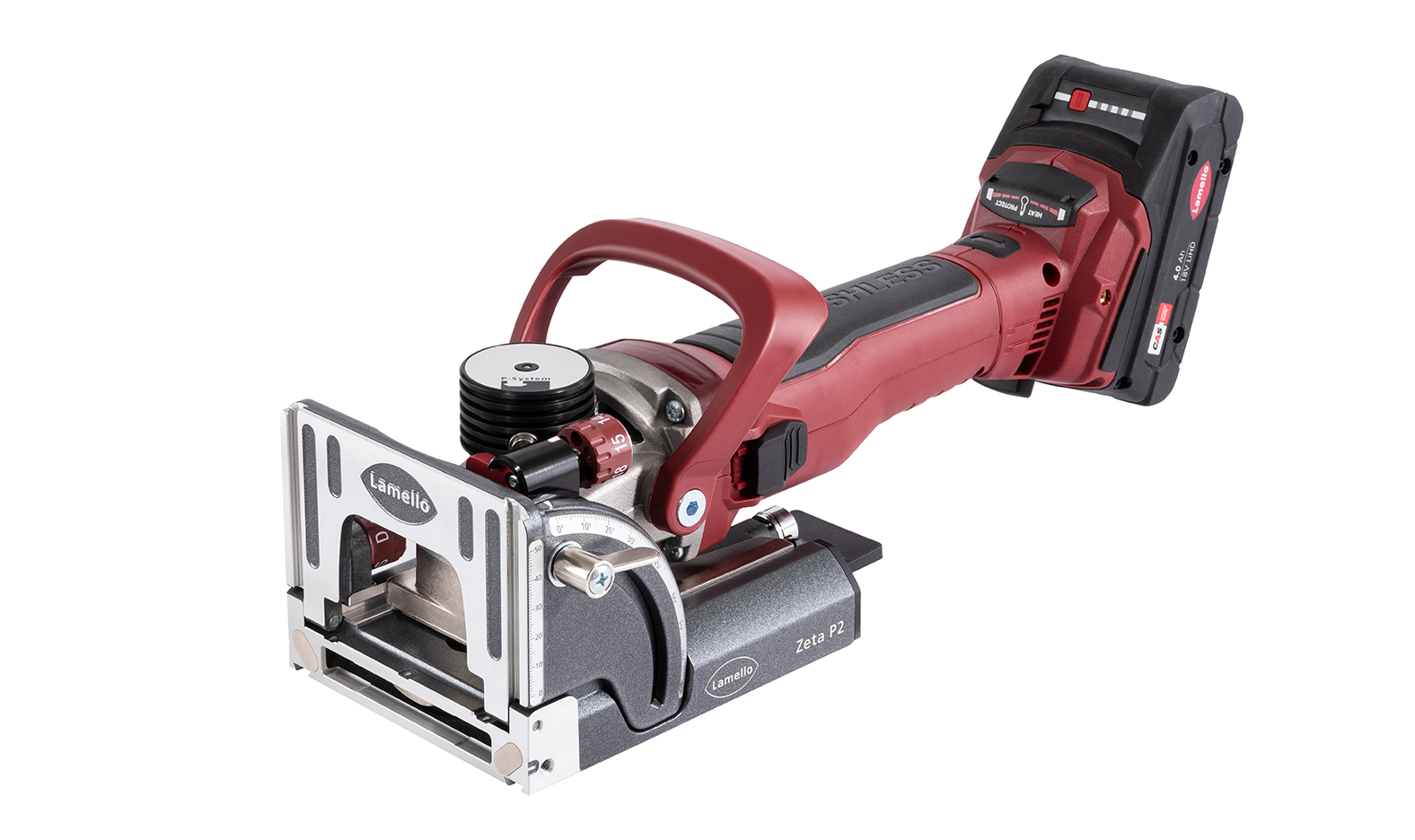

ZETA P2 CORDLESS | Lamello | Biscuit Joiners
-
Description

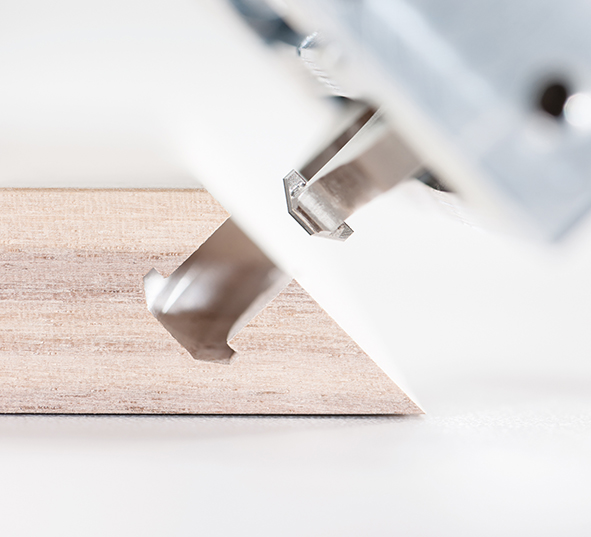

The Zeta P2 Cordless is the profile biscuit joiner for the P-System. It can be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more. The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 cordless is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 cordless can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.
Function:
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.The Zeta P2 cordless can also be employed as a standard biscuit joiner for original biscuits by deactivating the profile groove function and changing to a 4mm blade.
-
Specs
Power: 800 W Cordless Version
Voltage: 18V
Speed: 9,000
Cutter: Carbide-tipped profile groove cutter / Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.15 lbs. incl. 4.0 Ah battery / 9.03 lbs. incl. 5.5 Ah battery -
