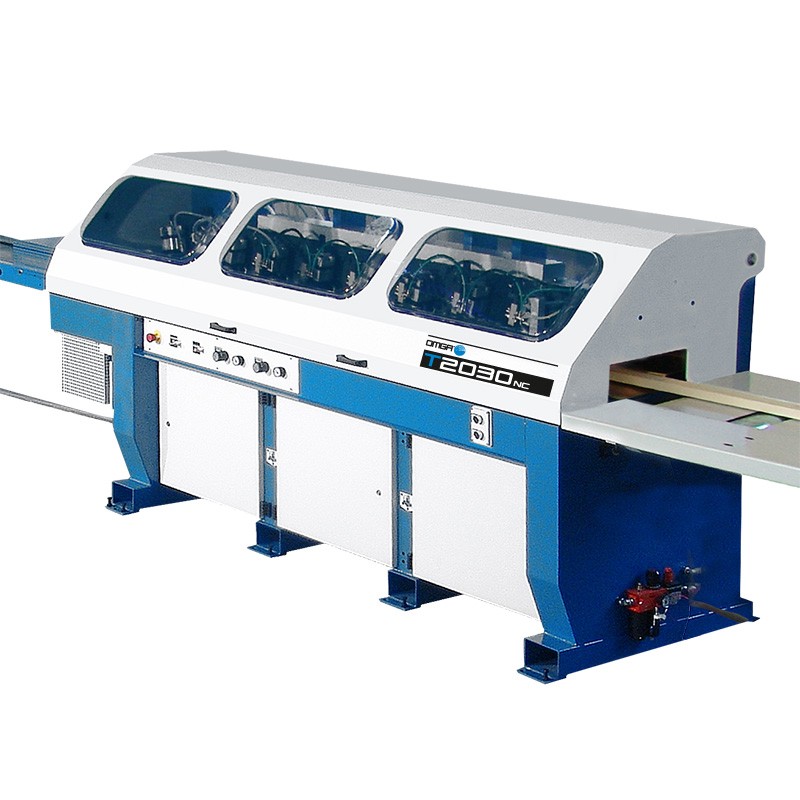

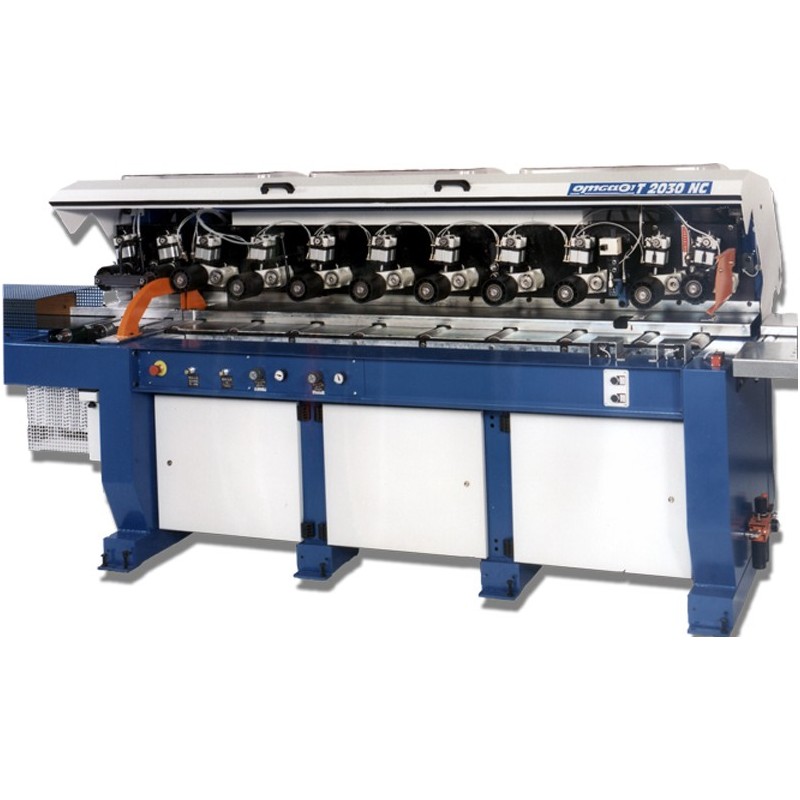

T 2030 NC | OMGA | Cutoff Saws

  • Power:
    7.5HP 230/460V 3PH
  • Description

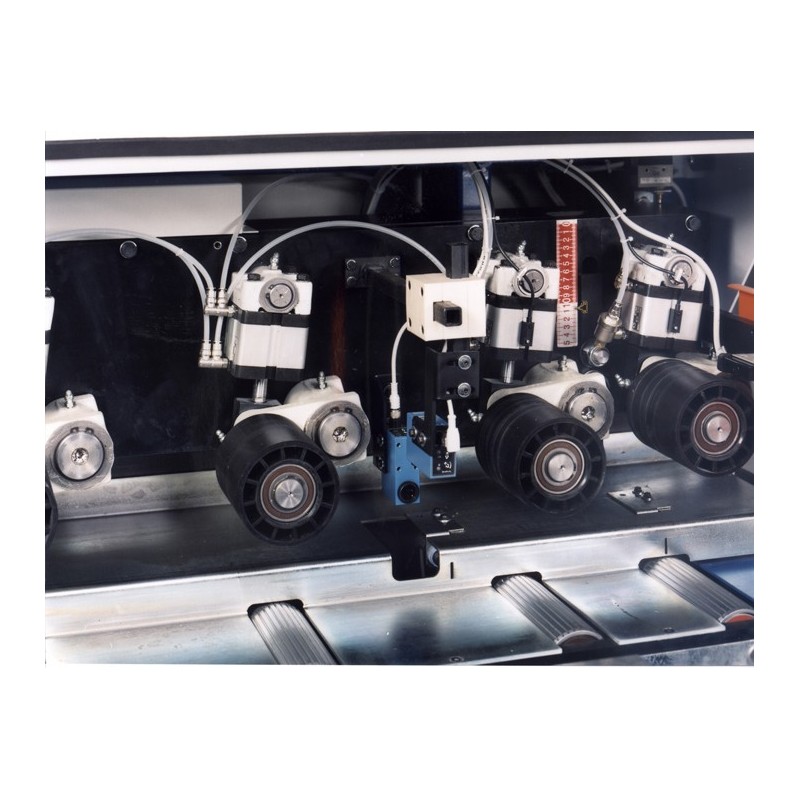

    Last Generation automatic programmable cut-off saw for optimized cutting of wood stock and defect removal. Particularly suitable for high production requirements given its very high maximum feed speed of 800 FPM. The set of 11 top pressure rollers are able to compensate for dimensional variations of rough mill stock. The machine is equipped with a PC based computer capable of performing eleven work cycle programs. The numerical control is able to store cutting lists with lengths divided in several different grades and the relevant quantity of parts. Cutting lists can be input direct from  the NC keypad or directly through the network. The onboard PC with 19″ monitor provides the following information: – Stock in cubic feet, required to produce the number of pieces in each list. – Number of pieces produced of each length. – Amount of stock in cubic feet divided into: first, second, third grade and waste – Cubic feet required to produce remaining parts. – Yield as a percentage of the total – Print out of all the above data to a parallel printer (optional). The system can perform simulated cutting to verify the result before processing the wood and allowing the user to decide whether to use the chosen parameters for the required production or change it. The T 2030 NC can cut and handle up to 3 different grades within the same cutting list or 5 grades with optional horizontal camera.

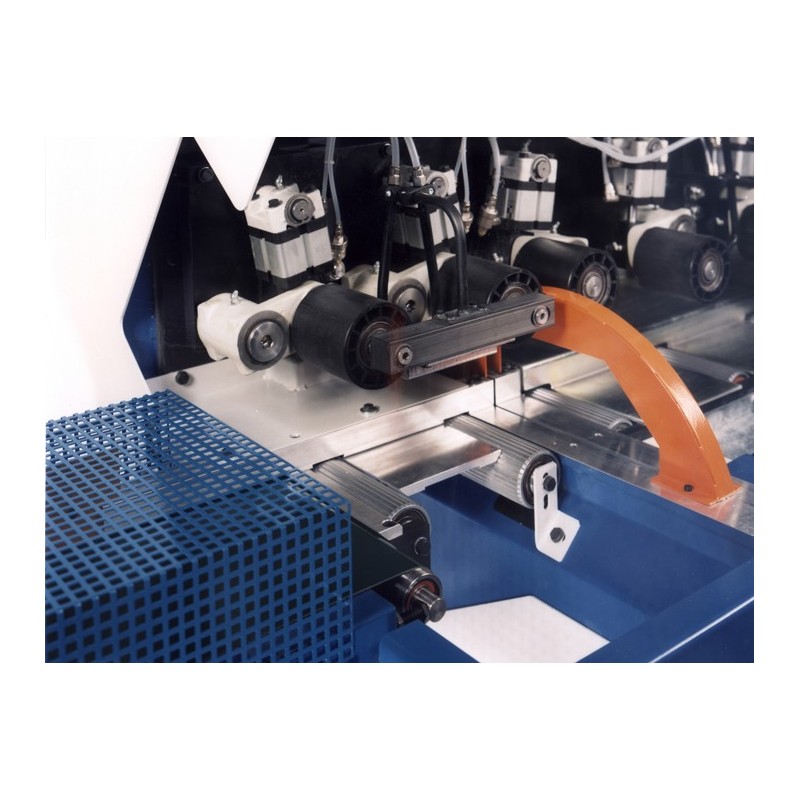

    Infeed Roller Tables. – Width Scanner. – Two Sided Grading Stations. – 2nd horizontal reading Camera. (for up to 5 grades). – Double sided CNC Workpiece Sorter. – Conveyor Belt for Off Cuts. – Motorized loading system. – Sorting systems with kickers.

  • Specs

    Max. piece thickness|4 3/4″

    Max. piece width|12 5/8″

    Min. infeed length|23 5/8″

    Max. feed Speed|800 FPM

    Saw blade motor power|7.5 HP

    Feed motor power|35 Nm

    Max. Acceleration|65 feet/sec.

    Cutting Speed|0.2 – 1 sec.

    Average number of cuts|90 – 100 min.
  • Download

Videos of Optimizing and Defecting Cut-Off Saw

T 2030 NC
