JDT65 | Stonewood Industrial Machinery | Dovetailers

  • Power:
    1HP 220V 1PH
  • Description

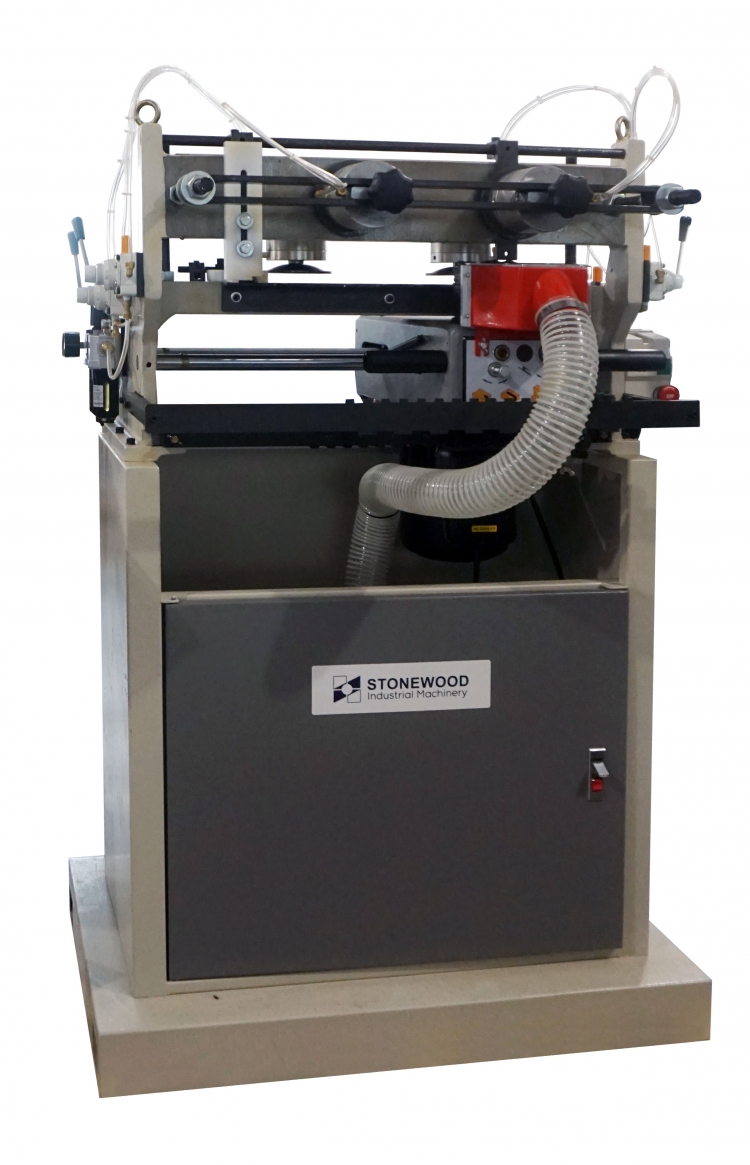

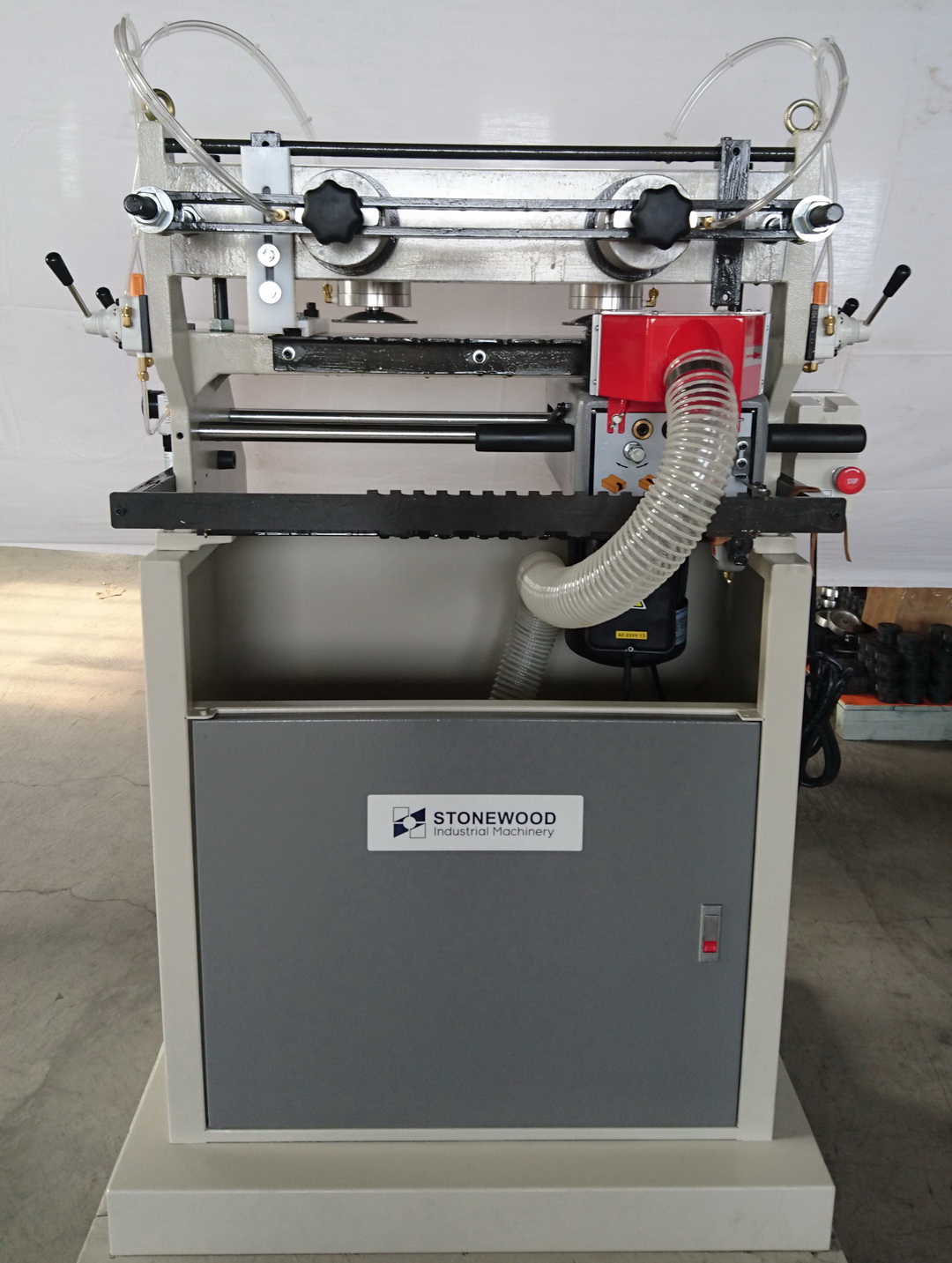

    The Stonewood JDT65 Dovetailer is a great entry level machine into the world of dovetailer drawer boxes. It produces a high quality dovetail joint and features a cast aluminum alloy carriage as well as a precision milled cast iron table frame. FEATURES: *18,500 RPM

    *Suitable for drawer production and furniture components needing high quality dovetail joints

    *Maximum workspace, 59″ x 16.5″

    *Air clamps securely hold workpieces

    *Enclosed stand

    *Indication bar to show cutting position

    *Conveniently adjust mortise & tenon depth to thickness of workpiece

    *Includes four-sided template that offers four types of pitches between dovetails

    *Standard pitches of 1″, 1.5″, 2″ & 2.5″

    *Spindle accepts 12mm T.C.T. cutter bit

  • Specs

    Min Workpiece Size|7.9″ x 2.4″ Max Workpiece Size|59″ x 16.5″ Min/Max Dovetail Height|0.2″-.71″(5-18mm) Min/Max Front Thickness|1/4″-2-3/8″(7-60mm Min/Max Side Thickness|1/4″-2-3/8″(7-60mm) Number of Spindles|1 Spindle Speed (RPM)|18,500 Dovetail Spacing|1″, 1.5″, 2″, & 2.5″ Table Height From Floor|46.5″ Dust Collection Ports|Front: 2.5″ – Rear: 4″ Air Pressure Required|6 Bar (85 PSI) Motor Power|1 HP Shipping Dimensions|42″x31″x63″ Machine/Shipping Weight|440 lbs./539 lbs.
