Description

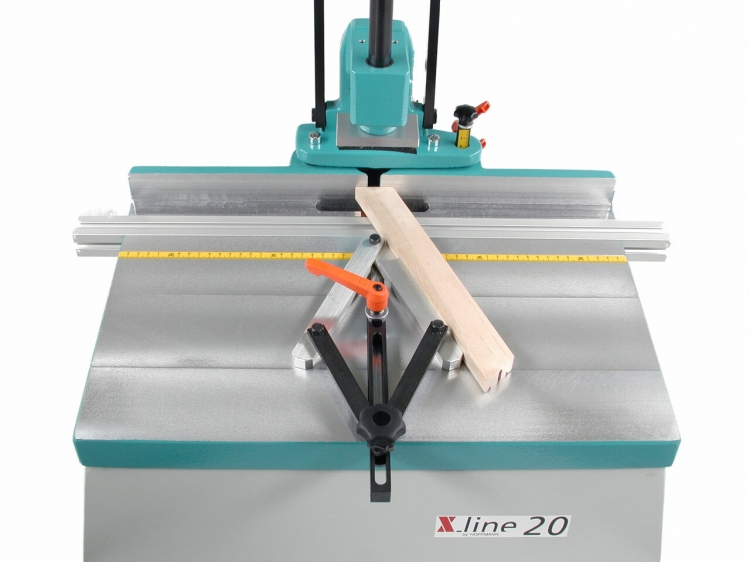

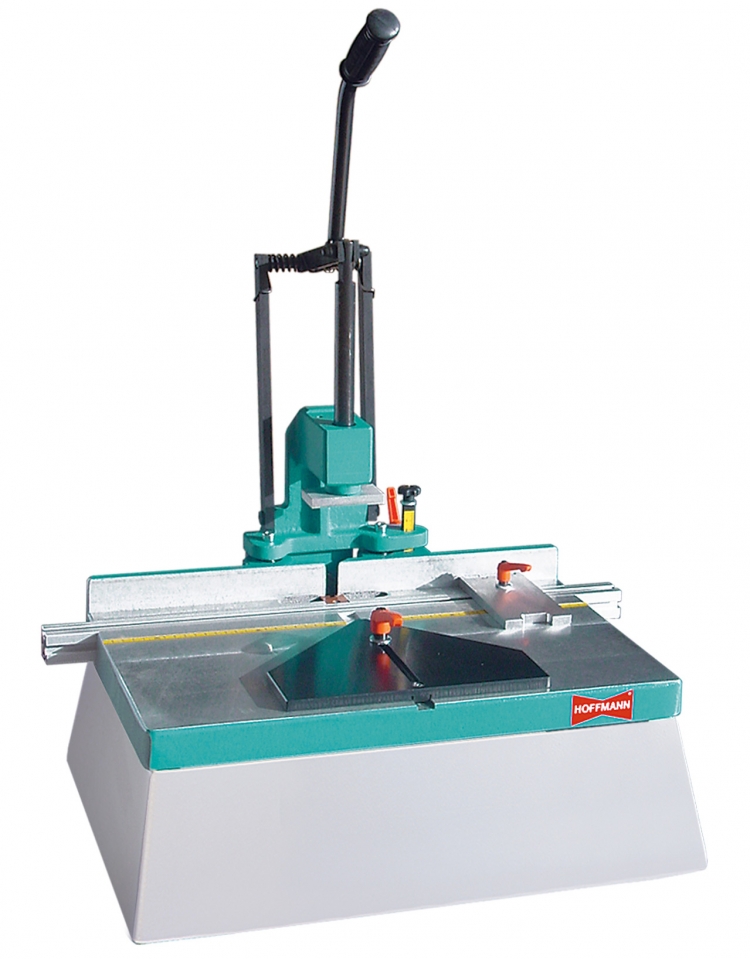

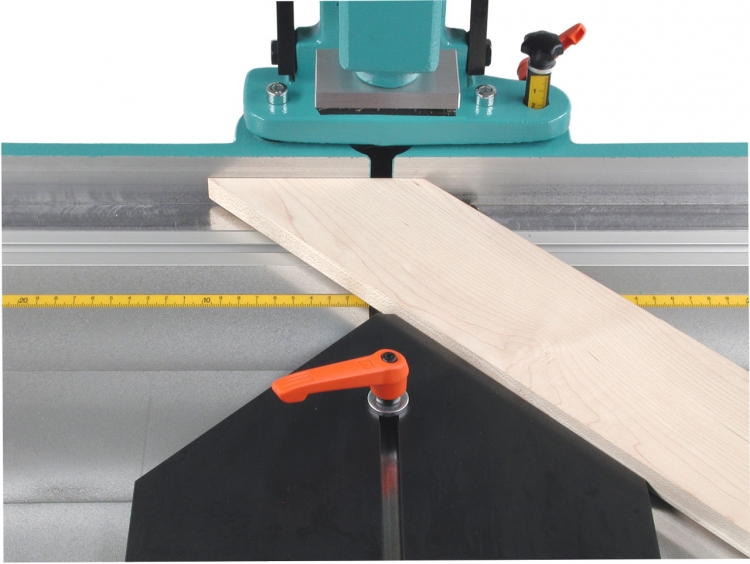

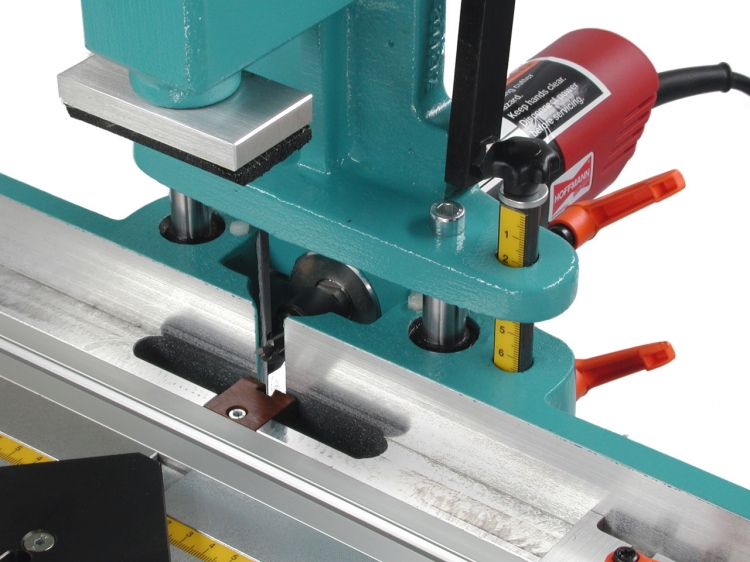

The X20 manual dovetail routing machine is a light weight, more portable model with an open base design. This machine does not require a compressed air supply. This machine is slightly larger than the X18 model, with increased routing height and a table-top mounted on three sided enclosed base. The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting. Pulling the main lever downward starts the machining cycle:
> Padded hold-down plate secures work-piece and motor is switched on
> Continued pulling advances the router head until pre-set height is reached
> Releasing the lever returns the motor to its home position and shuts off motor
> Padded hold-down plate releases work-piece -
Specs
Power Supply 120 volts – 4.4 Amps
Motor 530 Watt motor
Motor speed 29,000 rpm at idle
Collet size 1/4”
Motor carriage guides 16mm diameter guide rods, precision ground
Operation manual– dual action design
Max. height routing 3” – 76mm / moulding 4” – 101mm
Installed router bit W-2, solid carbide
Available router bits W-0, W-1, W-2 and W-3
Dimensions W/D/H 23 5/8” x 21 1/4” x 30 1/4”
Weight 42 lbs. -
