X-18 | Hoffmann | Dovetailers

  • Power:
    120V 4.4AMPS
  • Description

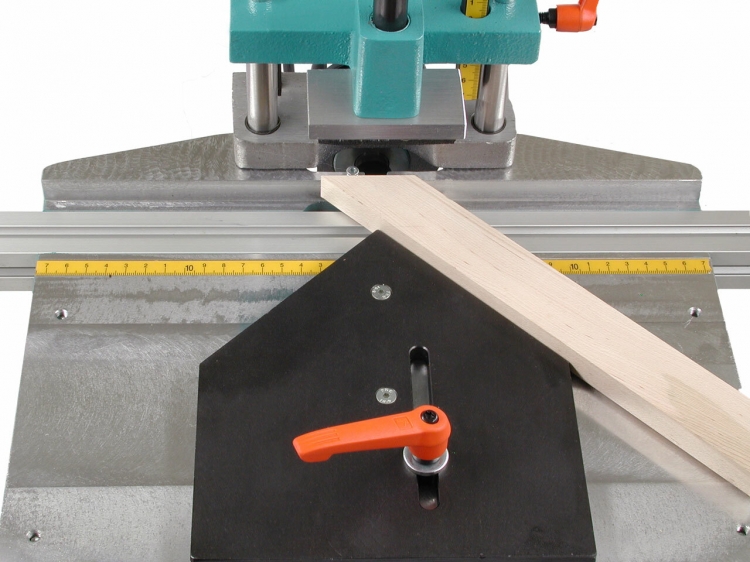

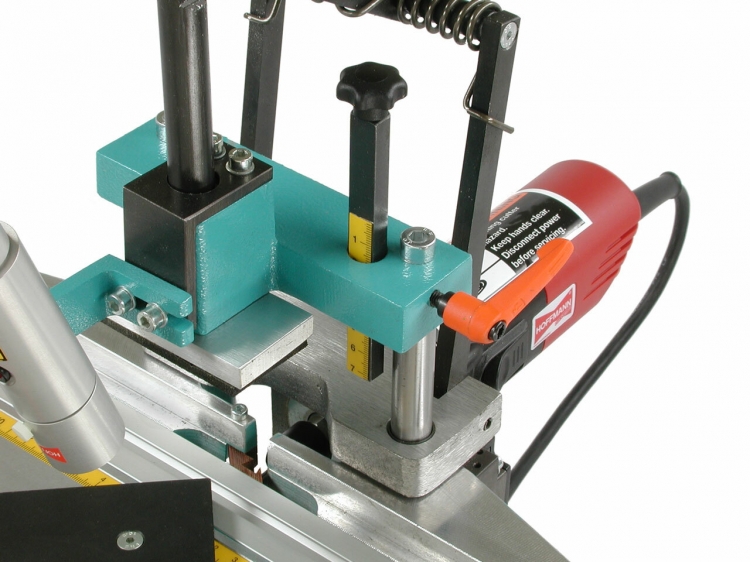

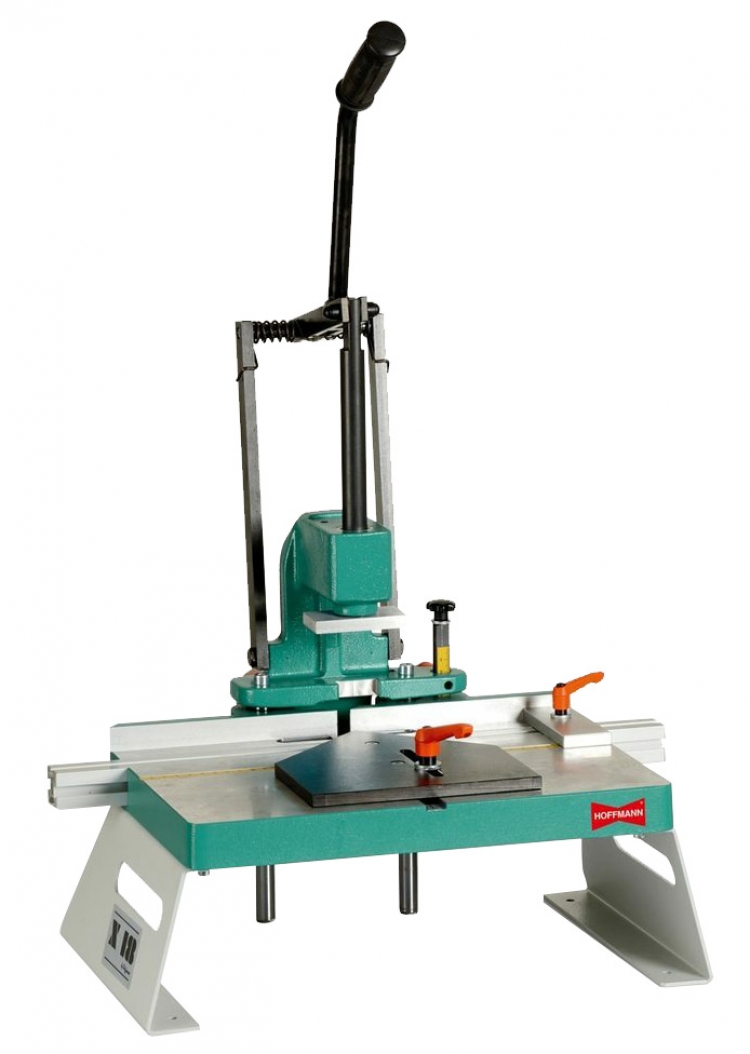

    The X18 manual dovetail routing machine is a light weight, more portable model with an open base design. This machine does not require a compressed air supply. Due to its limited routing height of 2 1/4” this machine is not suitable for joining most floater frames and shadow box moulding. The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting.

    Pulling the main lever downward starts the machining cycle:

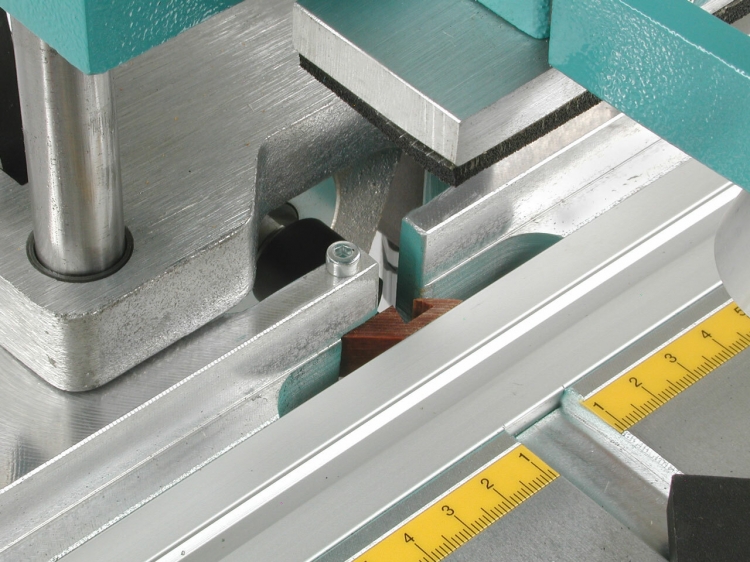

    > Padded hold-down plate secures work-piece and motor is switched on

    > Continued pulling advances the router head until pre-set height is reached

    > Releasing the lever returns the motor to its home position and shuts off motor

    > Padded hold-down plate releases work-piece

    With the operator controlling the speed of all machine movements, output is greatly depended on material flow, handling and operator performance.

  • Specs

    Power Supply 120 volts – 4.4 Amps

    Motor 530 Watt motor

    Motor speed 29,000 rpm at idle

    Collet size 1/4”

    Motor carriage guides 16mm diameter guide rods, precision ground

    Operation manual– dual action design

    Max. height routing 2 1/4” – 57mm / moulding 3 1/2” – 89mm

    Installed router bit W-2, solid carbide

    Available router bits W-0, W-1, W-2 and W-3

    Dimensions W/D/H 19 3/4” x 21 1/4” x 30 1/4”

    Weight 38 lbs.
