Description

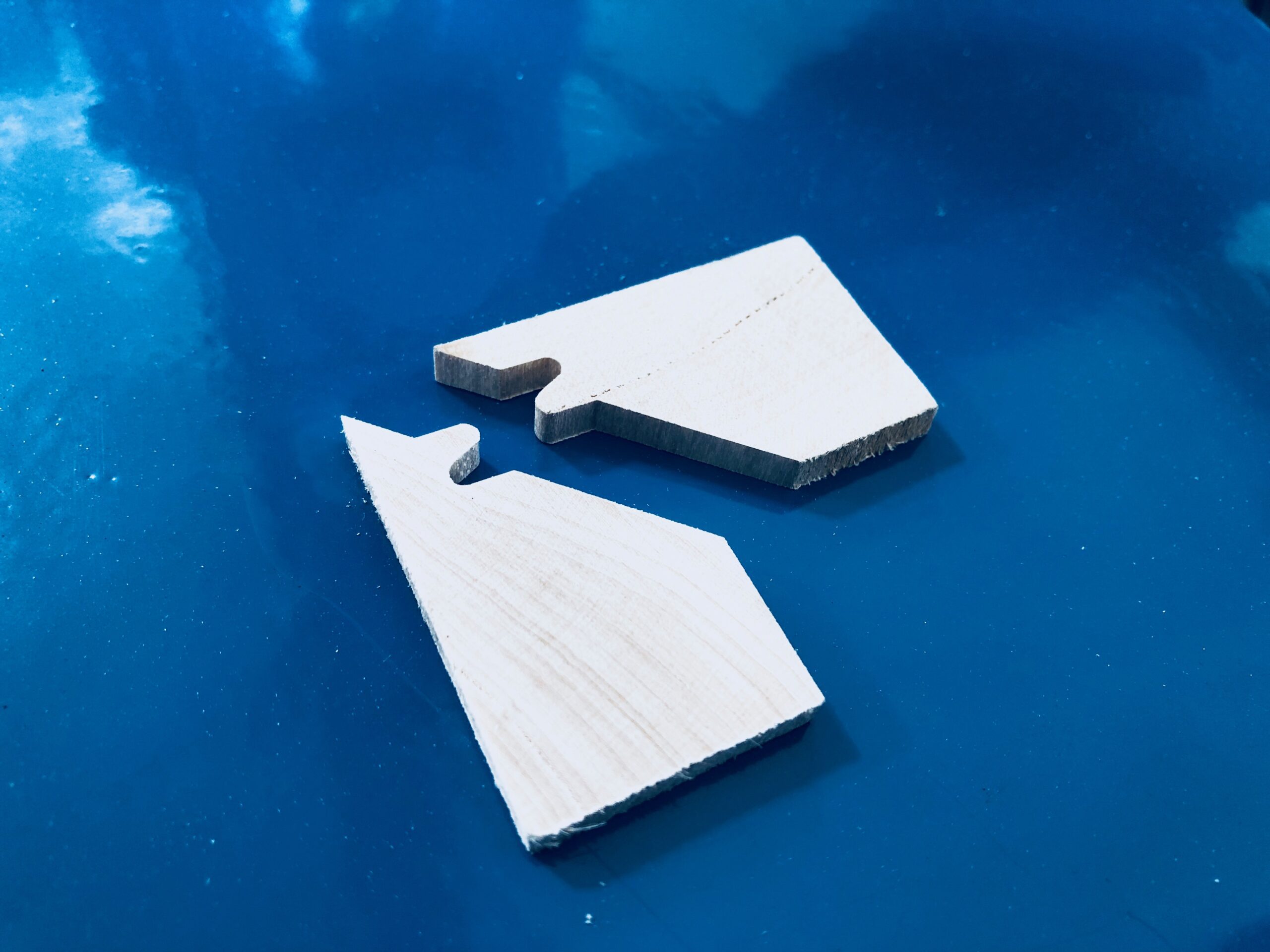

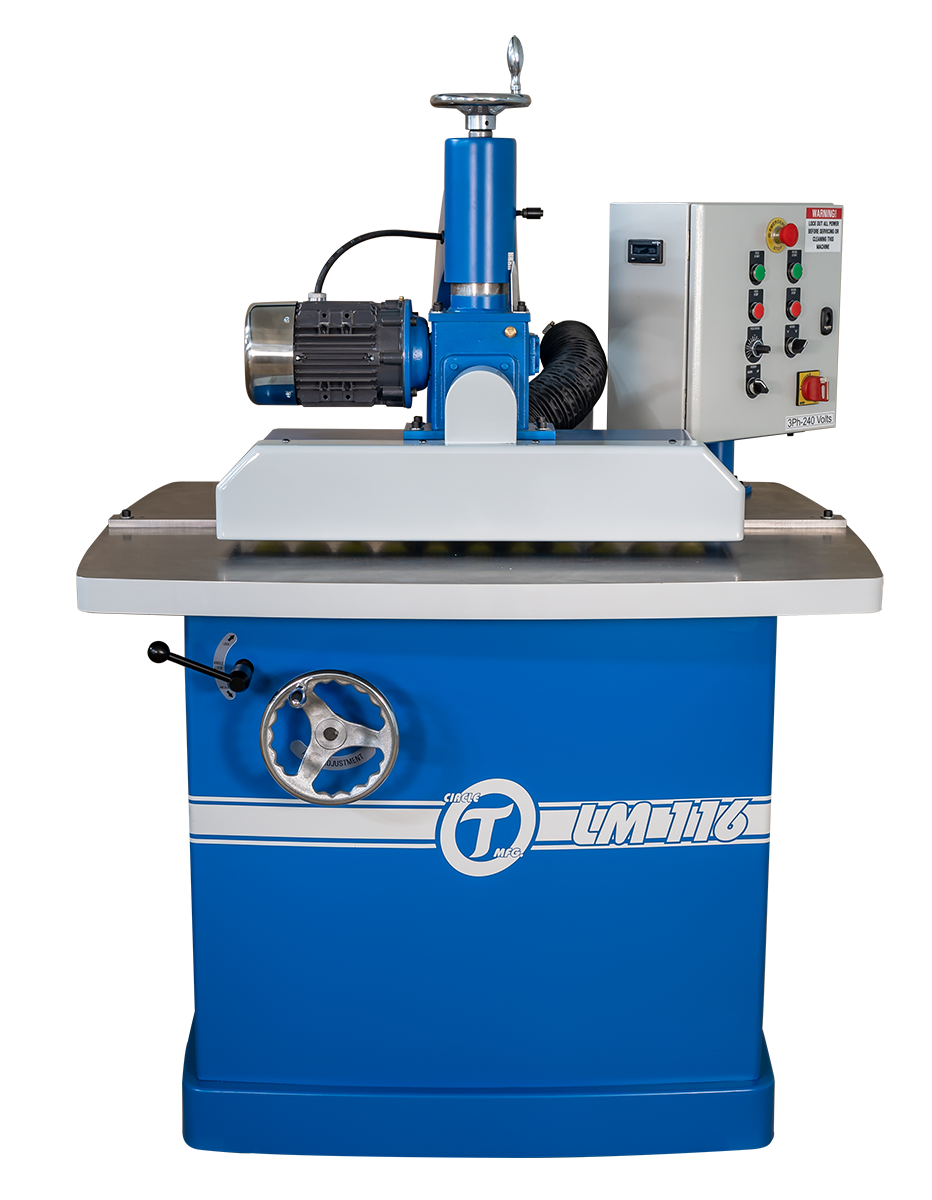

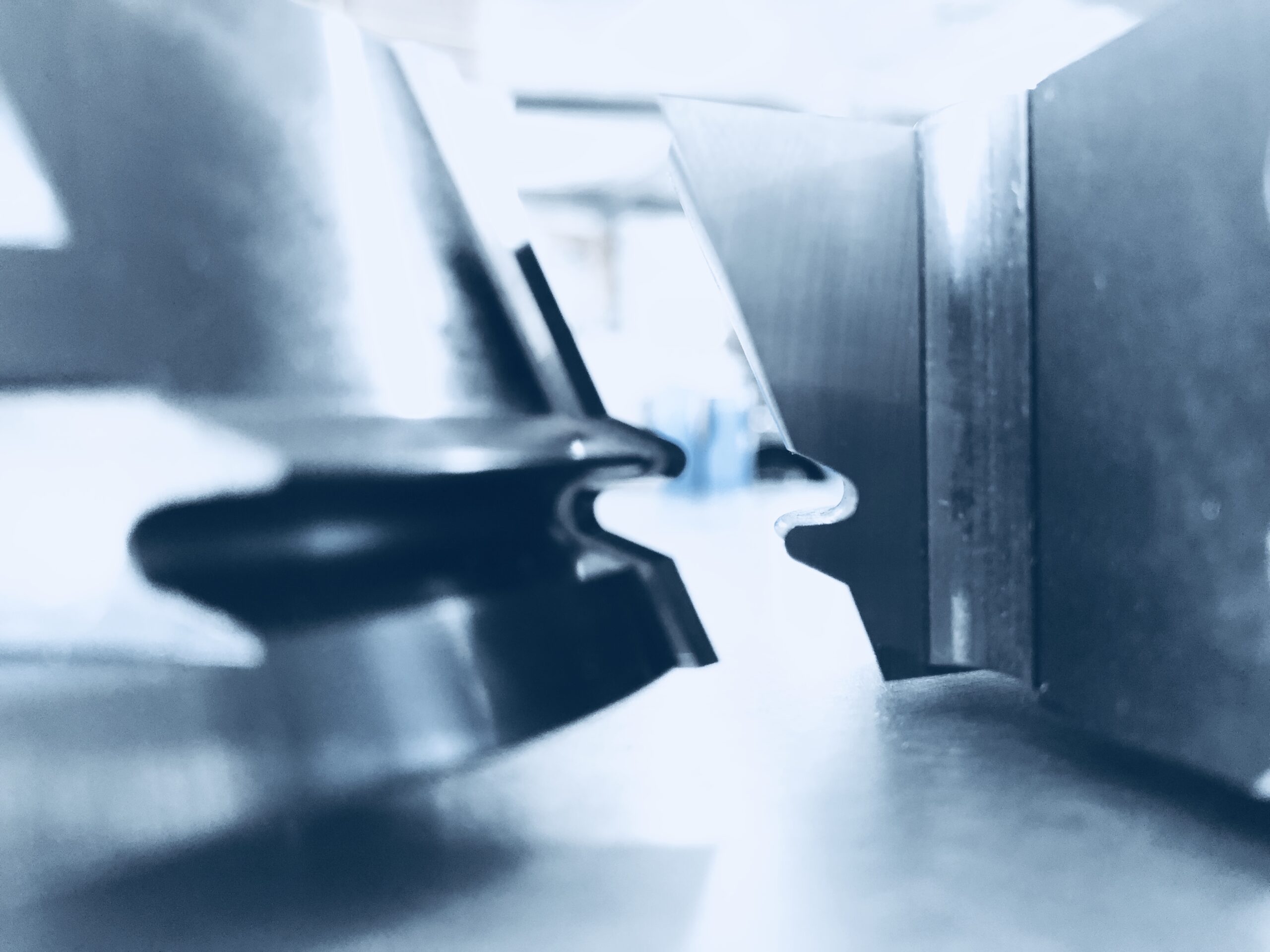

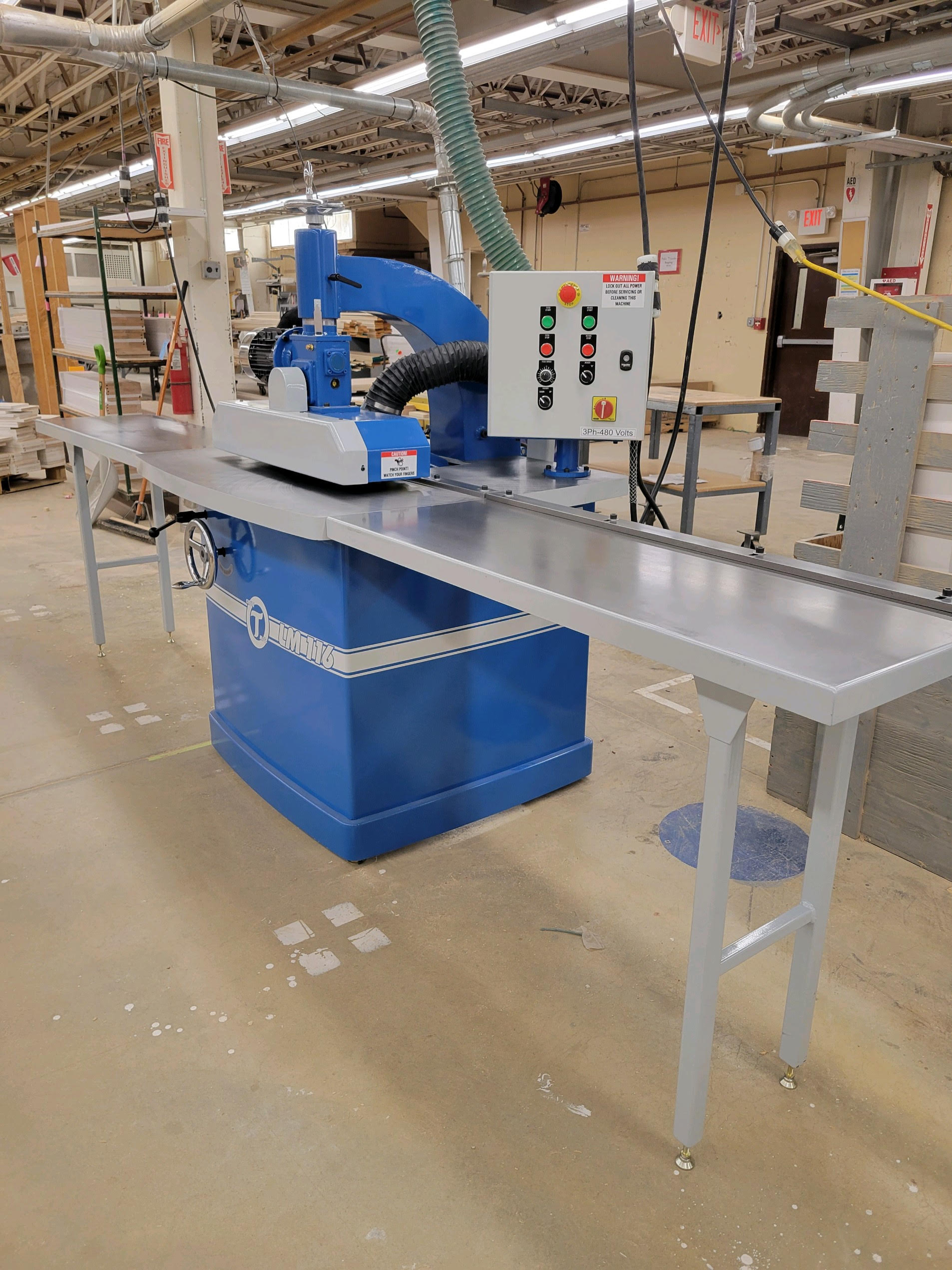

The Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more! •A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
•No more downtime setting up and changing out your shaper!!!
•No more running pieces on their side!!!
•Upgrade to the EASY LOCK MITER LM116 -
Specs
APPLICATION SPECIFICATIONS:
Maximum Material Thickness: 1″
Minimum Material Thickness: 1/2″
Minimum Material Width: 1-1/4″
Minimum Material Width (2-Sided): 2″
Minimum Material Length: 12″
Capable of Machining Angles from 90 – 30 Degrees (Finish Angle)
DRIVE PACKAGE SPECIFICATIONS:
Spindle Motor: 5 HP
Feed Motor: 0.5 HP
Spindle Diameter: 1-1/4″
Spindle Speed: 8,200 RPM

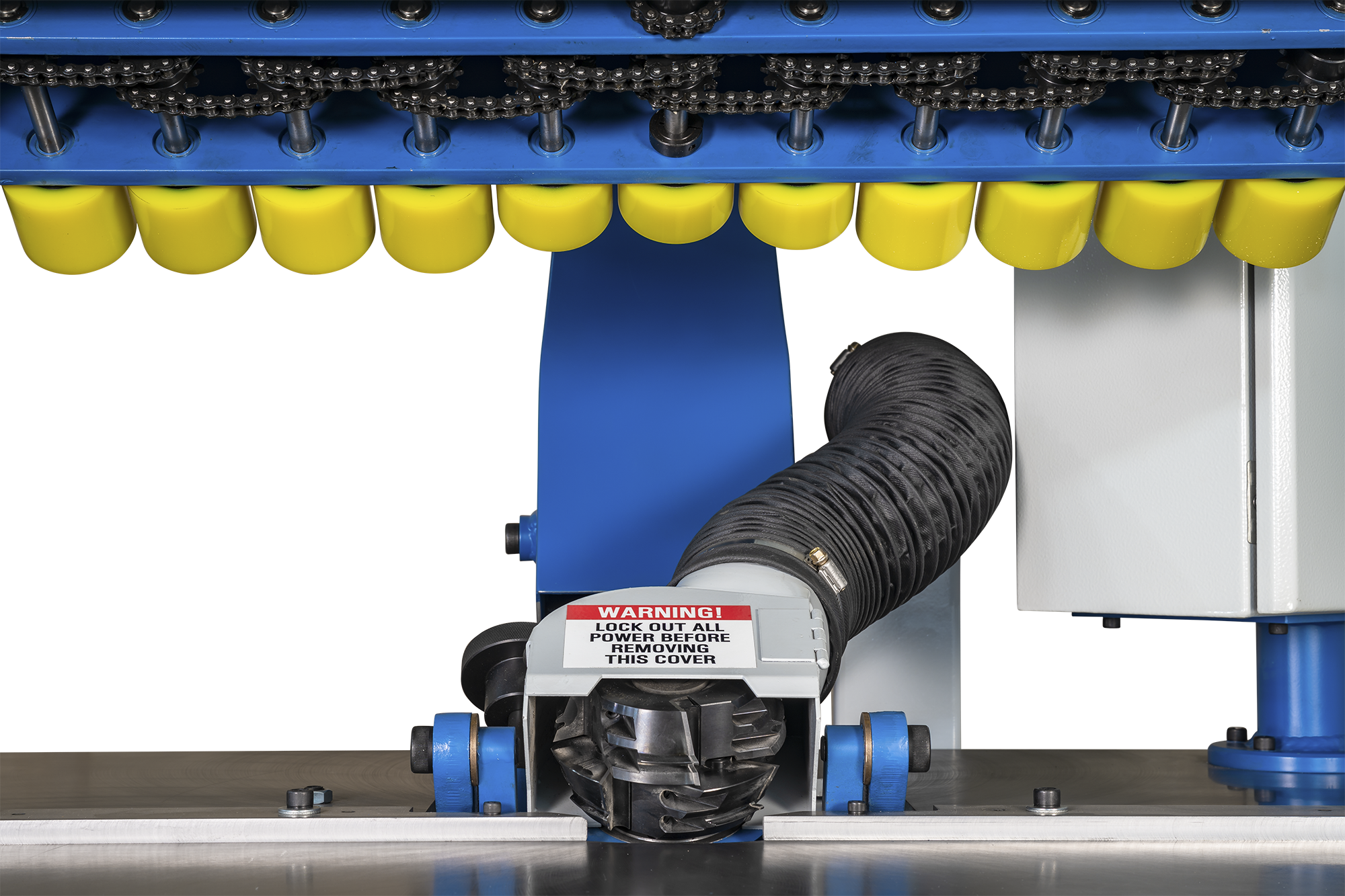

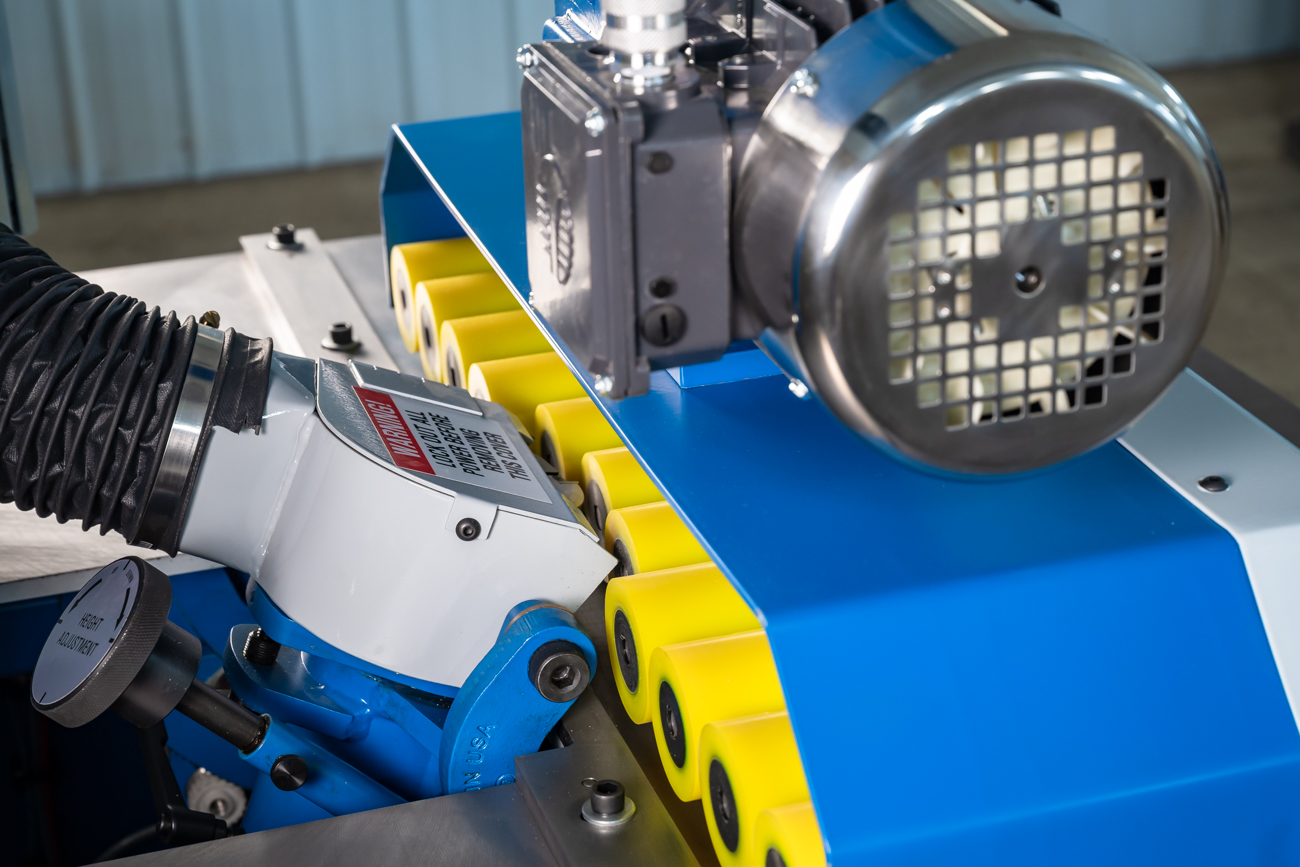

Variable Speed 11-Roll Positive Grip Feeder
UTILITY REQUIREMENTS:
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 100 PSI .5 CFM
25 AMP Disconnect at 480V 3phase
DIMENSION SPECIFICATIONS:
Table Size: 40″ x 47″
Footprint: 42″L x 54″W x 60″H
Shipping Dimensions 57″L x 48″W x 79″H
SHIPPING WEIGHT: 1400lbs
NET WEIGHT: 1250lbs -
