C251 | Cantek | Wide Belt Sanders

  • Power:
    11HP 230V
  • Description

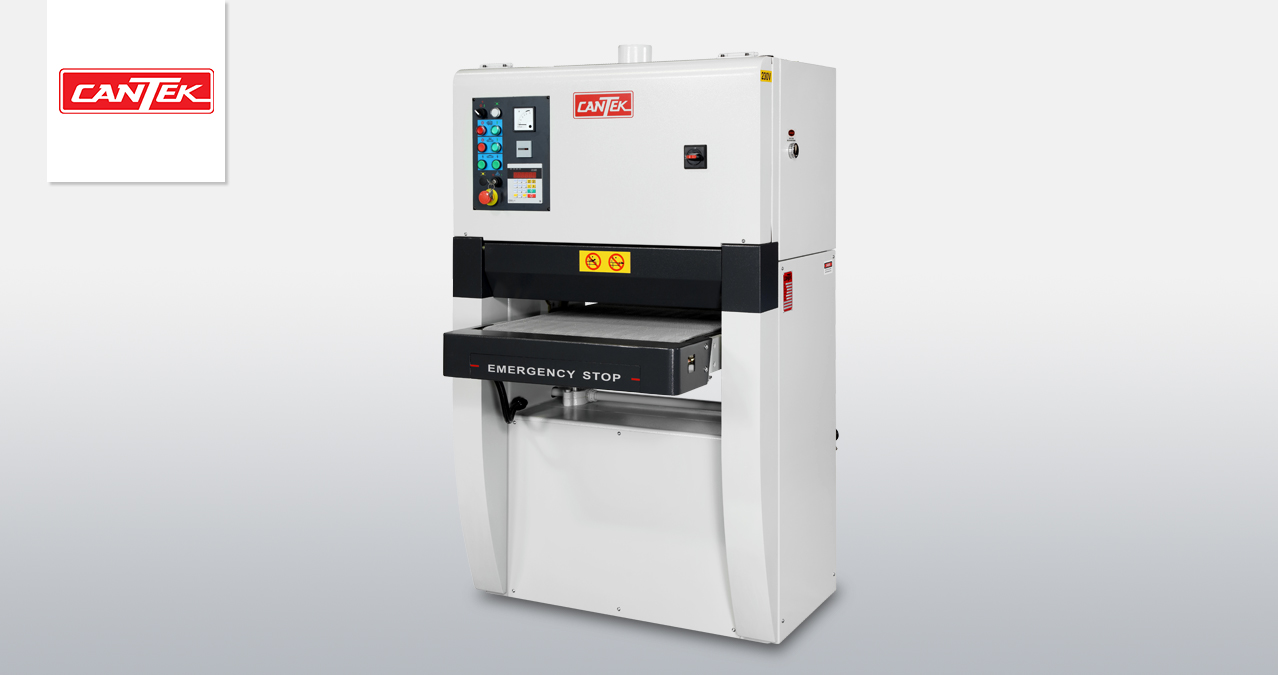

    The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding.  The robust sanding unit and heavy-duty frame ensures optimum sanding results.  Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

    • Electronic belt tracking for optimum belt life and sanding results

    • Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.

    • Disc brake on main motor allows for faster belt changes

    • Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.

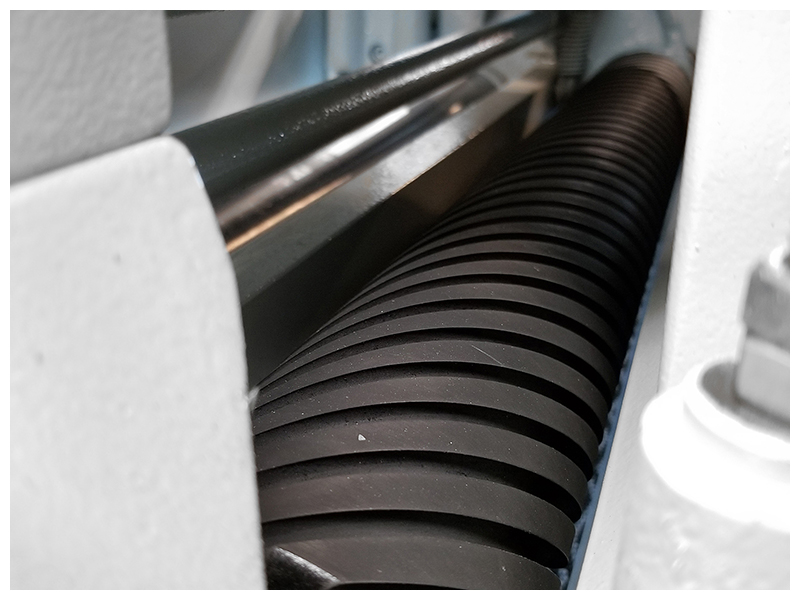

    • Double infeed and outfeed pressure rolls for superior part hold down

    • Material over-height limit switch

    • Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine

    • Interlocks located on all access doors.

  • Specs

    Abrasive belt size 25” x 60”

    Main motor 10HP

    Feed motor 1 HP

    Table rise/fall motor ½ HP

    Maximum width stock 24”

    Minimum part length 13”

    Maximum thickness opening 4”

    Feed speed: variable 13 to 52 FPM

    Passline height 33” – 38”

    Infeed table 11-1/2”

    Dust outlet 1 @ 4”

    Compressed air usage 2 CFM @ 90 PSI

    Net weight 1452 lbs

    Machine dimensions 53” x 50” x 63”

    Shipping weight 1584 lbs
