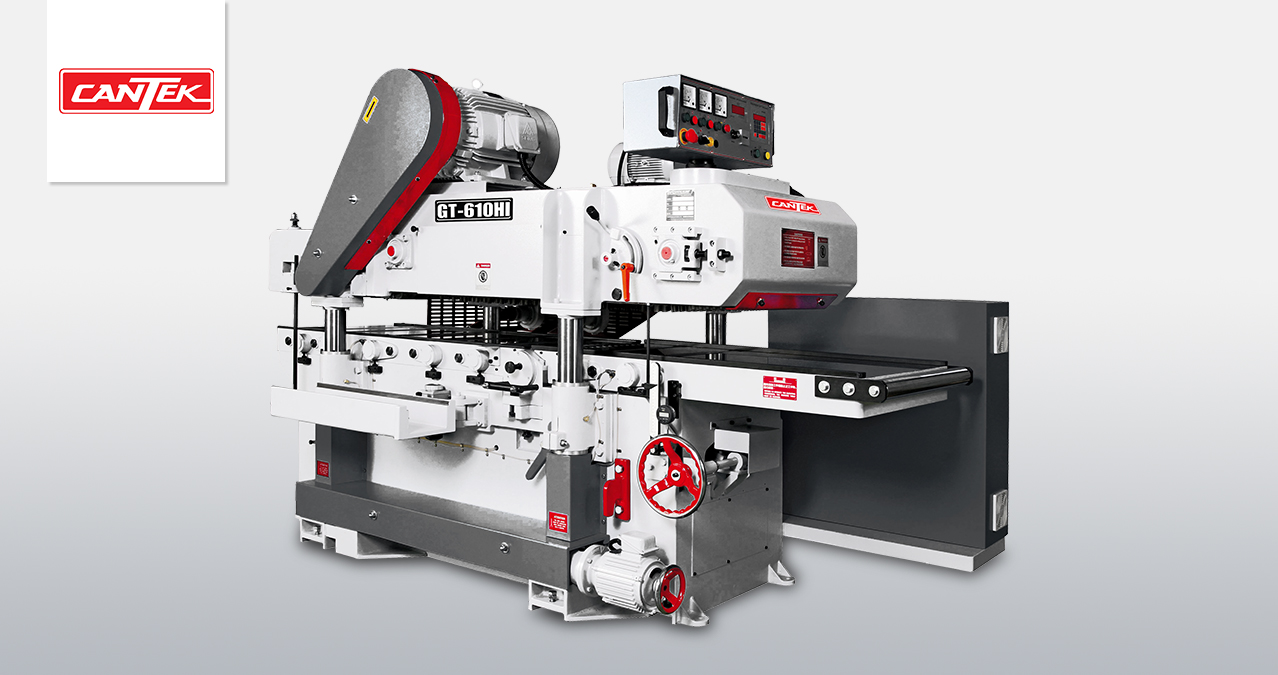

GT610HI | Cantek | Planers

  • Power:
    460V 3PH 76HP 97AMPS
  • Description

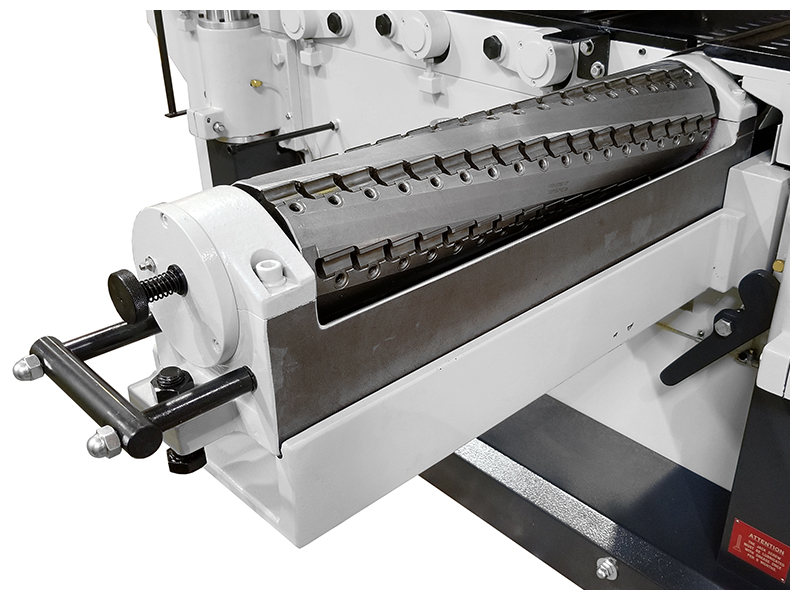

    High efficiency and high-speed double surface planing. The Cantek GT610HI Cardan Shaft Drive Double Surface Planer is capable of speeds up to 98 feet per minute and its robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bottom head allowing it to act like a jointer to flatten the board prior and then a sectional infeed roller feeds the material through the top head for accurate dimensioning.

  • Specs

    Max. working width 24″
    Max. working thickness 8″
    Min. working thickness 5/16″
    Min. working length 12″
    Cutterhead RPM 5000 RPM
    Cutterhead diameter 5.3″
    Feed speed 30-98 FPM
    Top cutterhead motor 40 HP
    Bottom cutterhead motor 30 HP
    Feed motor 5 HP
    Table Rolls 7 (3) driven
    Opening hoist motor 1 HP
    Machine weight 8800 lbs
    Machine dimensions (LxWxH) 112” x 67” x 67”
    Shipping weight 9240 lbs
    Shipping dimensions (LxWxH) 115” x 75” x 75”
    Machine electrics (Standard) 460/3/60 = 110 amps (Other voltages on request, factory order)
  • Download

Videos of 24″ Double Surface Planer

Cantek GT610HI 24″ Heavy Duty Cardan Shaft Drive Double Surfacer
