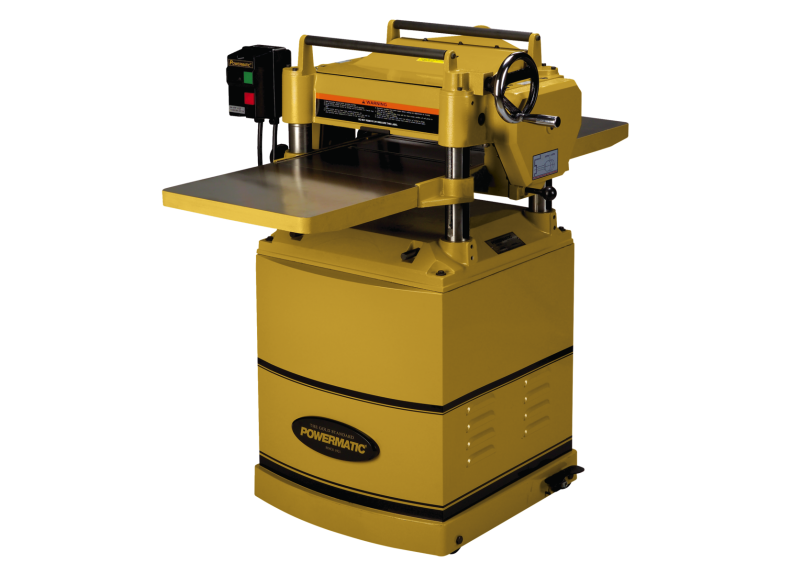

15HH | Powermatic | Planers
-
Power:3HP 1PH 230V
-
Description

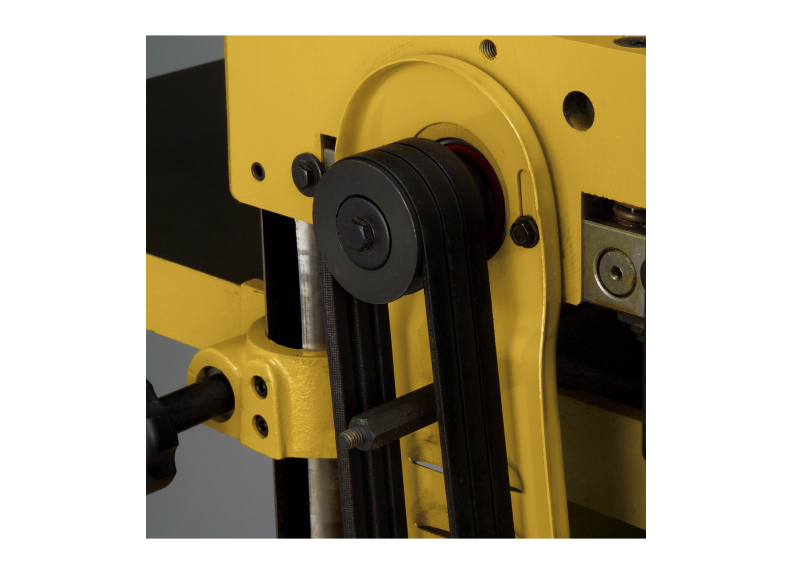

The helical cutterhead on this Planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4″ dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.
-
Specs
Cutterhead Diameter (In.)|2-7/8
Cutterhead Speed (RPM)|4500
Dust Collection Minimum CFM Required (CFM)|800
Dust Port Outside Diameter (In.)|4
Feed Rate (FPM)|16/20
Maximum Depth of Cut (In.)|3/16
Maximum Full Width Depth of Cut (In.)|1/8
Maximum Planing Thickness (In.)|6
Maximum Planing Width (In.)|14-7/8
Minimum Planing Length (In.)|8
Motor Amps|15
Motor Power (HP)|3
Motor Voltage (V.)|230
Prewired Voltage (V.)|230
Prop 65|Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)|30
Style (Type)|Floor
Table Support|4 Column
Type of Cutterhead|HELICAL -
