Description

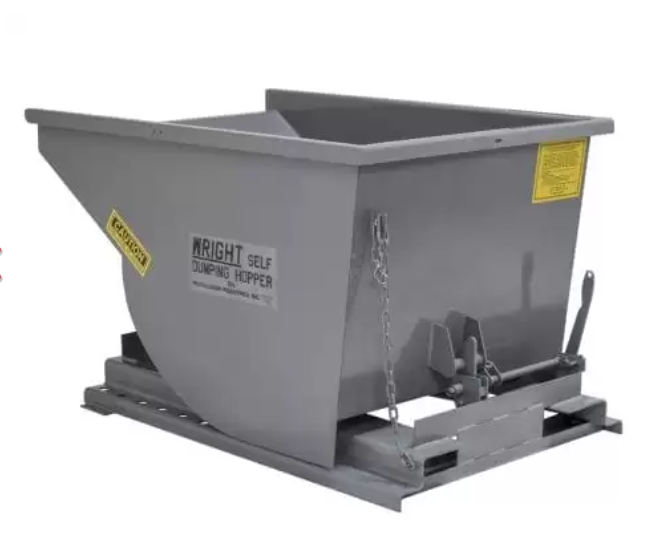

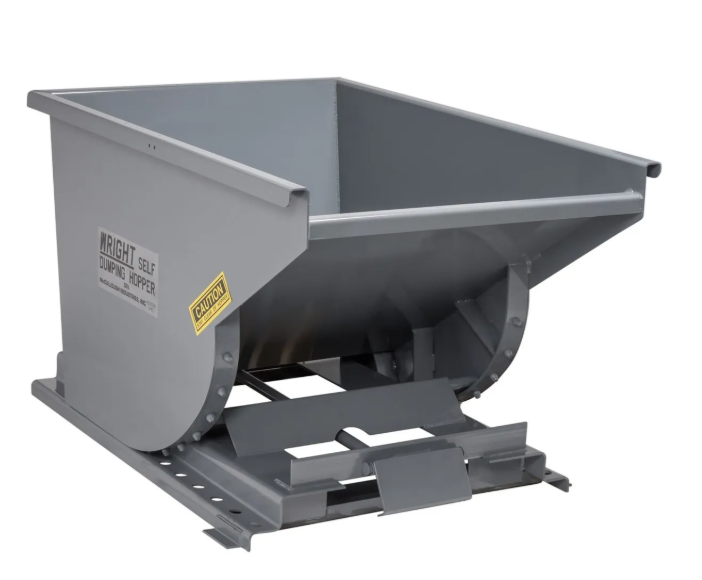

1/2 yd self-dumping hopper for material handling. Hoppers are manufactured with heavy steel construction, 3” fork opening, low center of gravity, and a compact footprint. To learn more about Wright hoppers, contact AW Machinery directly.
Engineered for safety and economy. Bump Release Hoppers are innovative and automatically dump on contact with the roll-off container. Hoppers are perfectly balanced to roll forward when loaded, dump completely and automatically return to upright, locked position ready for reloading. Continuous welding helps to prevent dripping of wet materials (leak-proof hoppers are available upon request). Formed smooth edge around top and pouring lip for safety and strength. Extended sides prevent side-wise scattering of material.
Not seeing the hopper that fits your needs the best? Contact one of our salesman for guidance towards the hopper that fits your needs best.
Made in the USA.
-
Specs
Brands Wright
Volume Capacity 0.5 yd³
Overall Width 37.75 in
Overall Height 32.5 in
Overall Length 56.5 in
Fork Opening 3 by 26.5 in
Pouring Lip 3 in
Container Length 51.25 in
Dump Clearance Height 49.5 in
Dump Clearance Bottom 3.5 in
Dump Clearance Length 66 in
Front Clearance 2.5 in
Base Width 28.5 in
Base Length 54 in
Dump Angle 38 º
Center of Gravity 22.75 in
Approximate Weight 398 lb
Wall Thickness 11 gauge
Base Thickness 7 gauge
Features Bumper Release Self-Dumping Stackable
