C4 | Safety Speed | Panel Saws

  • Description

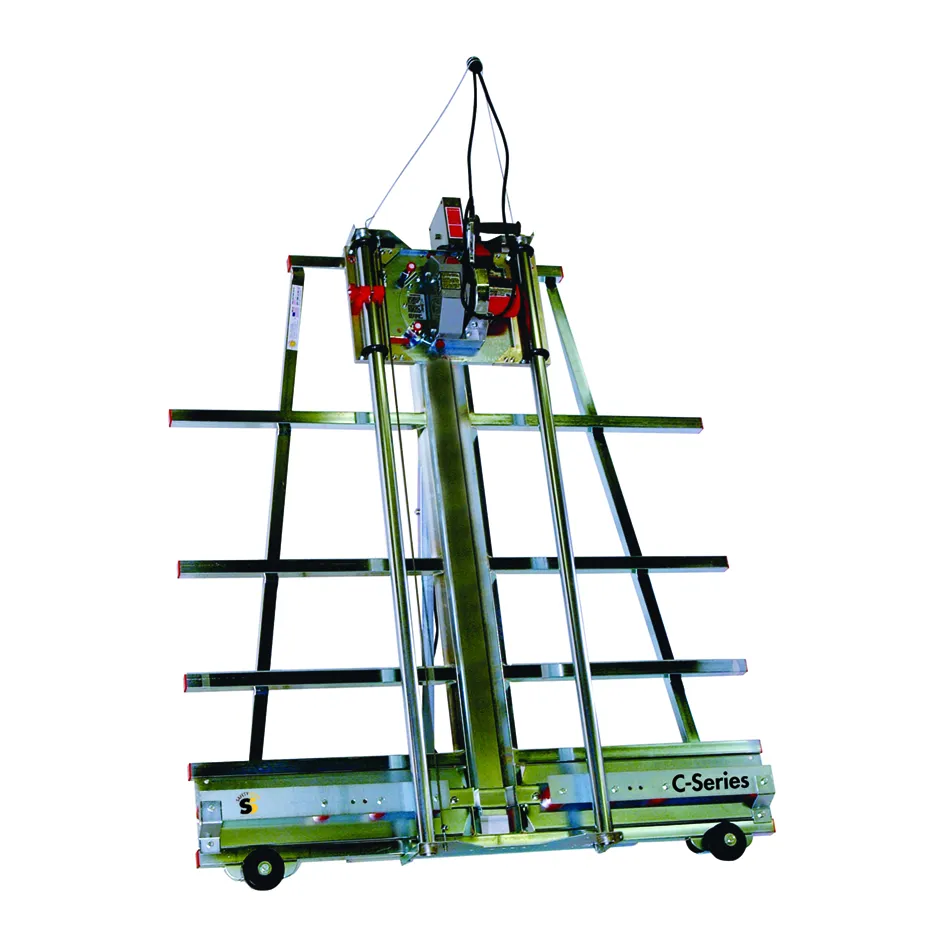

    The C4 model packs all of the features of the full-size saws into a portable 5′ frame and features a 50″ maximum crosscut. The maximum cutting height on the C5 Panel Saw is 64″,  both machines include a Milwaukee Tool motor and have no differences besides the maximum cutting height.  The C4 is designed for customers who have limited floor space or require transporting the saw to the work site. Photos are shown shown with a stand and wheels,  which are optional accessories

  • Specs

    Weight|189 lbs

    Dimensions|60 × 11 × 70 in

    Max. Crosscut|50″/1270mm

    Max. Rip Cut|96″/2450mm

    Cut Depth|1 ¾”/45mm

    Cut Accuracy|1/32″/.8mm

    Frame Length|60″/ 525mm

    Saw Blade Diameter|8″/210mm

    Daily Usage|1-3 Hours


    Motor volt and amperage|15 amp, 120V, 7.5 amps, 220V

    Motor Manufacturer|Milwaukee Tool
