Description

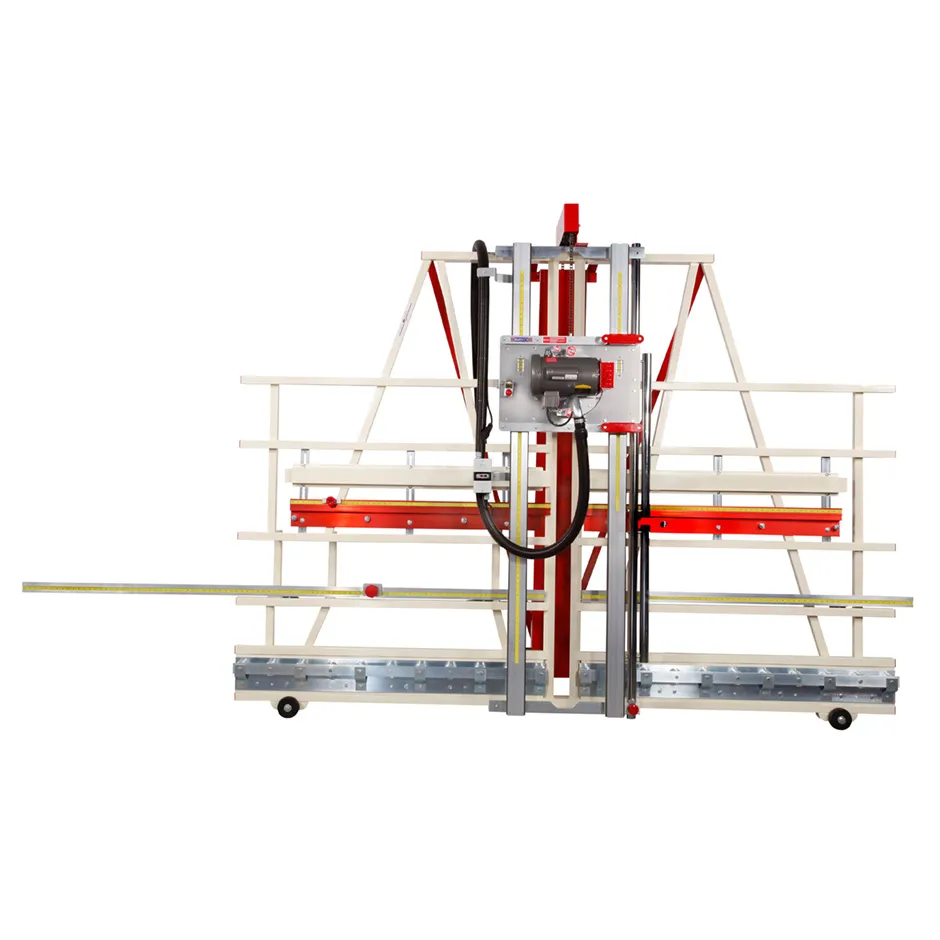

Continuous usage panel processing done the easy way. The 7400M panel saw features a 10′ frame, and the 7400XL features a 13′ frame. There are no other differences between these two machines. Standard Equipment:
*Your choice of single or three phase, heavy duty induction saw motor.
*Welded steel frame and integrated stand system.
*Dual V-track precision guide system.
*Adjustable vertical and horizontal rulers
*Quick stop gauges (8′ left, 5′ right).
*Saw blade. Quick change from vertical to horizontal cutting.
*Floating pressure saw foot.
*Solid aluminum material rollers.
*Enclosed counterweight system.
*MID-WAY FENCE™.
*Dust collection ready.
*Hold down bar.
*Wheels.
*3 year warranty.
*TUV certified to UL/CSA standards -
Specs
7400SPECS Weight|950 lbs
Dimensions|124 × 98 × 48 in
Max. Crosscut|64″/1625mm
Max. Rip Cut|Unlimited
Cut Depth|2 ⅛”/55mm
Cut Accuracy|.005″/.125mm
Frame Length|120″/3050mm
Daily Usage|Continuous (8+ Hours)
Rollers|22
Saw Blade Diameter|8″/210mm
Motor|2HP, 1~ 230V, 11.5 AMPS, 3HP, 3~ 230V, 7.6 AMPS, 3HP, 3~ 460V, 3.8 AMPS
Saw Blade Revolutions Per Minute|3450 RPM
Power supply options|Single phase or three phase power
7400XLSPECS Weight|1050 lbs
Dimensions|160 × 98 × 48 in
Max. Crosscut|64″/1625mm
Max. Rip Cut|Unlimited
Cut Depth|2 ⅛”/55mm
Cut Accuracy|.005″/.125mm
Frame Length|156″/3050mm
Daily Usage|Continuous (8+ Hours)
Rollers|28
Saw Blade Diameter|8″/210mm
Motor|2HP, 1~ 230V, 11.5 AMPS, 3HP, 3~ 230V, 7.6 AMPS, 3HP, 3~ 460V, 3.8 AMPS -
