Description

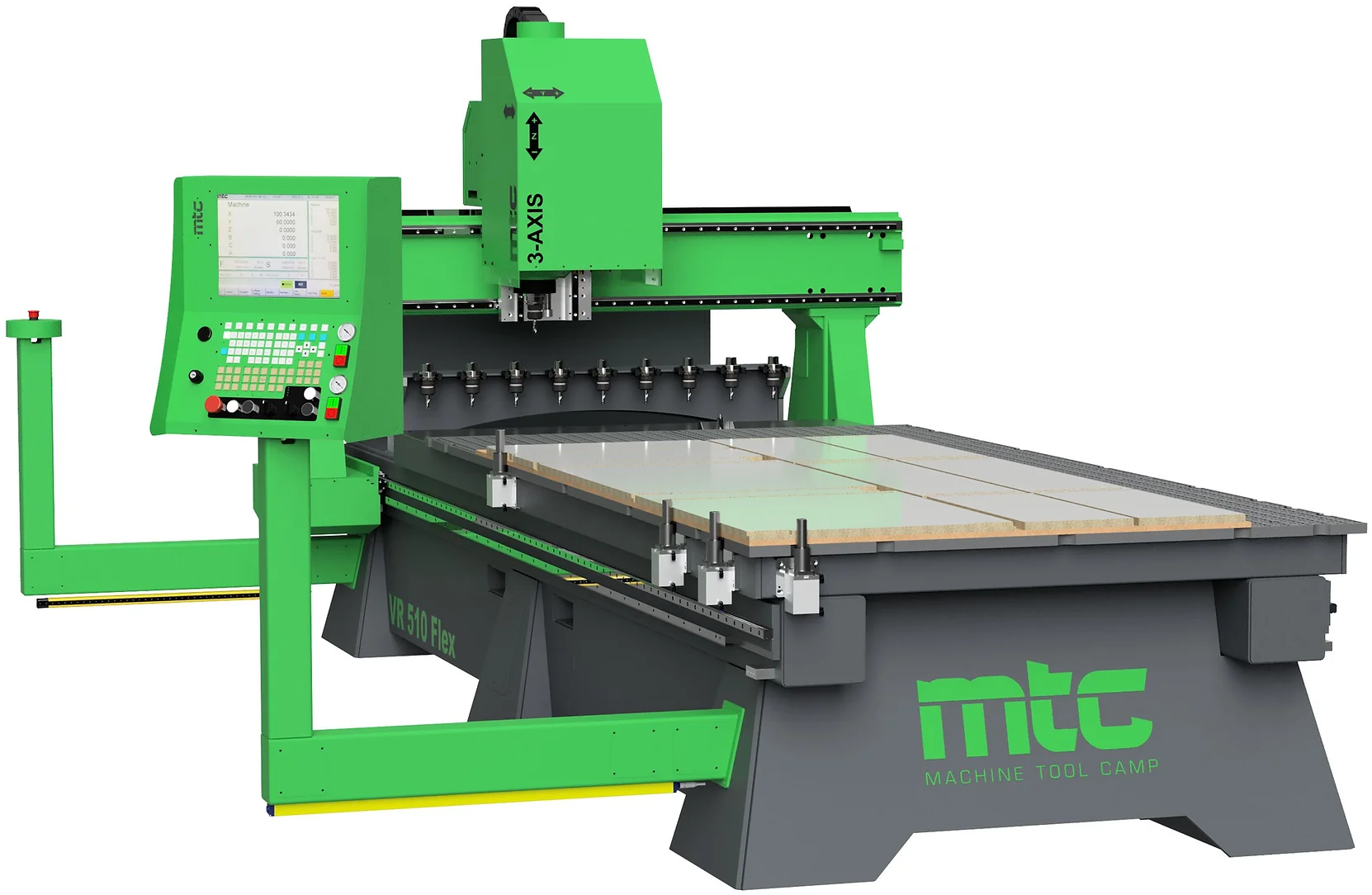

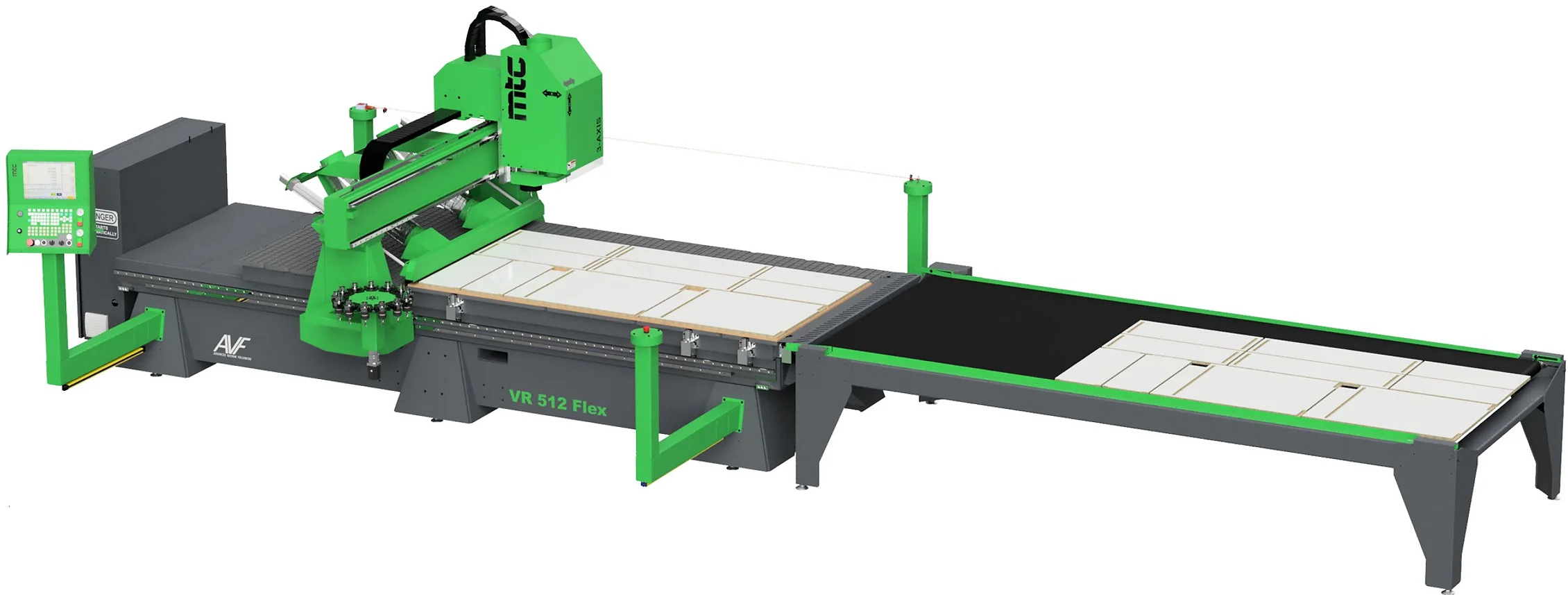

We are proud to introduce the FLEX™ Table CNC routers. Launched in early 2019, the FLEX™ machines offer both, Nesting and Pod & Rail functionality with “Infinite Pod Positioning.” Couple this flexibility with industry leading performance of 5,600IPM travel speeds and absolute encoder technology, the FLEX Series will maximize your investment.
Options:
•High Speed Processing
•Vector speeds over 5,600IPM
•Over 1G acceleration/deceleration rates
•Home Free (no homing required)
•Absolute Encoders on all servo motors
•Battery-Less Technology
•5’x12′ Table
•5-Axis Articulating Spindle

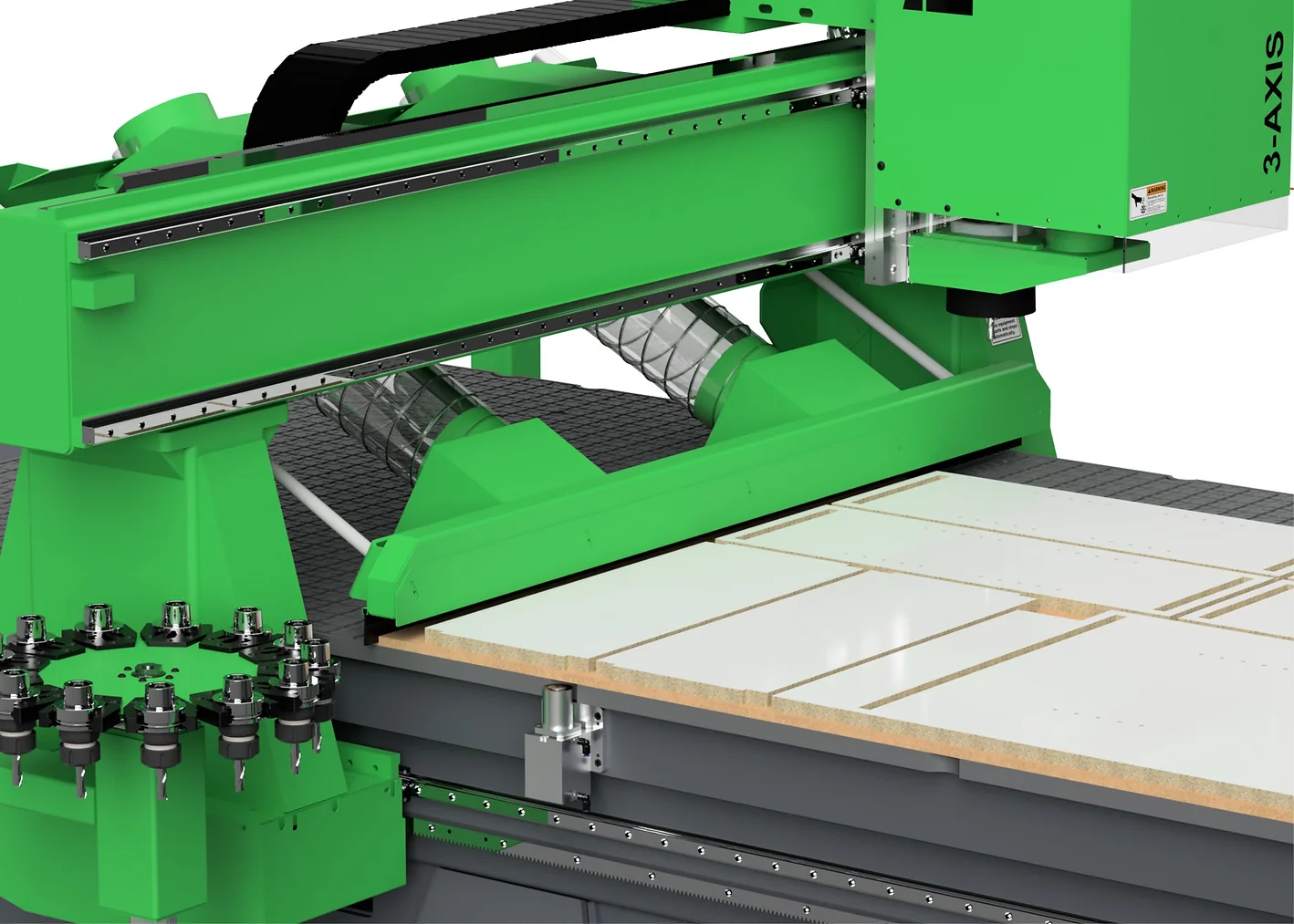

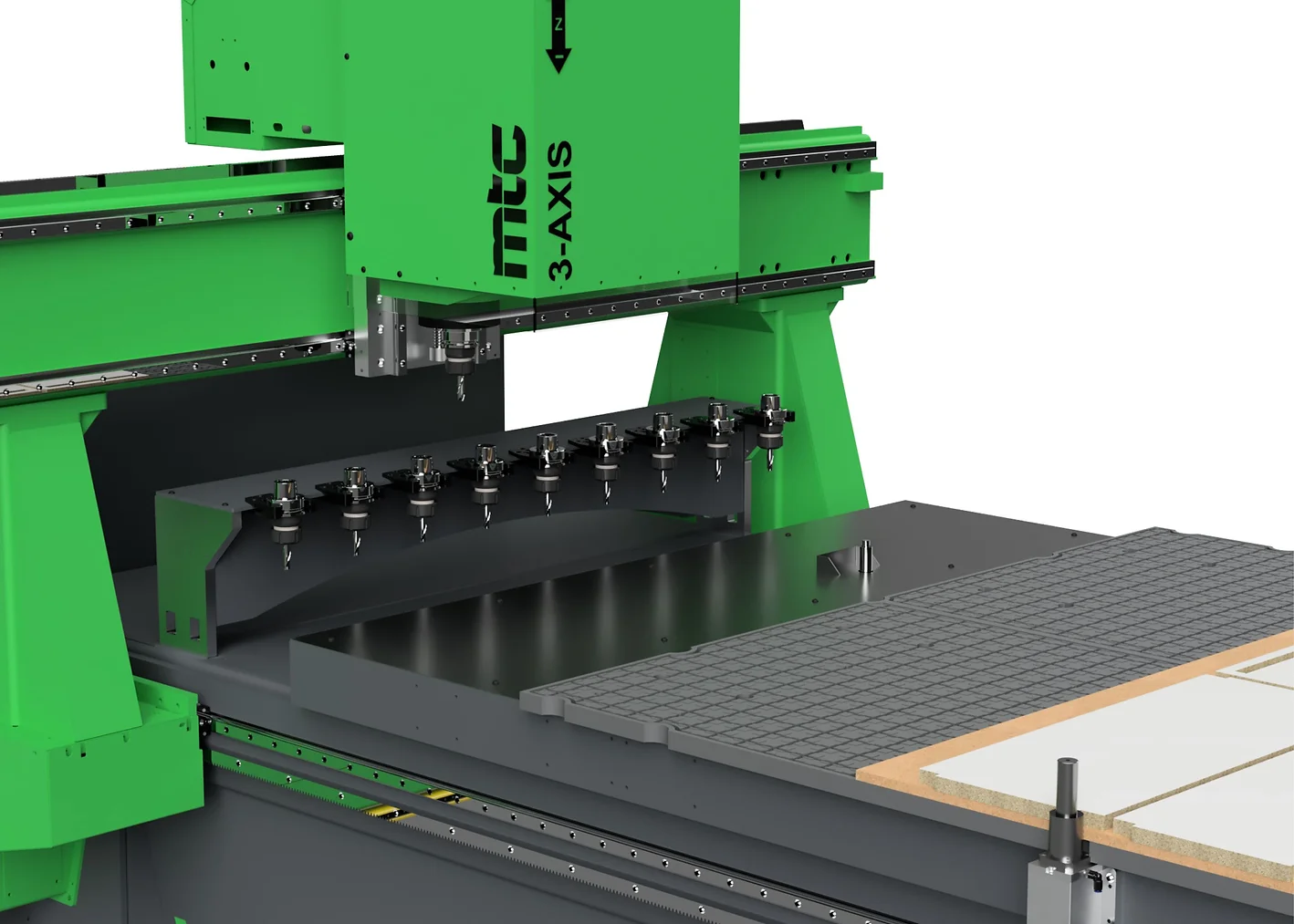

•9 Pocket Rack Tool Changer

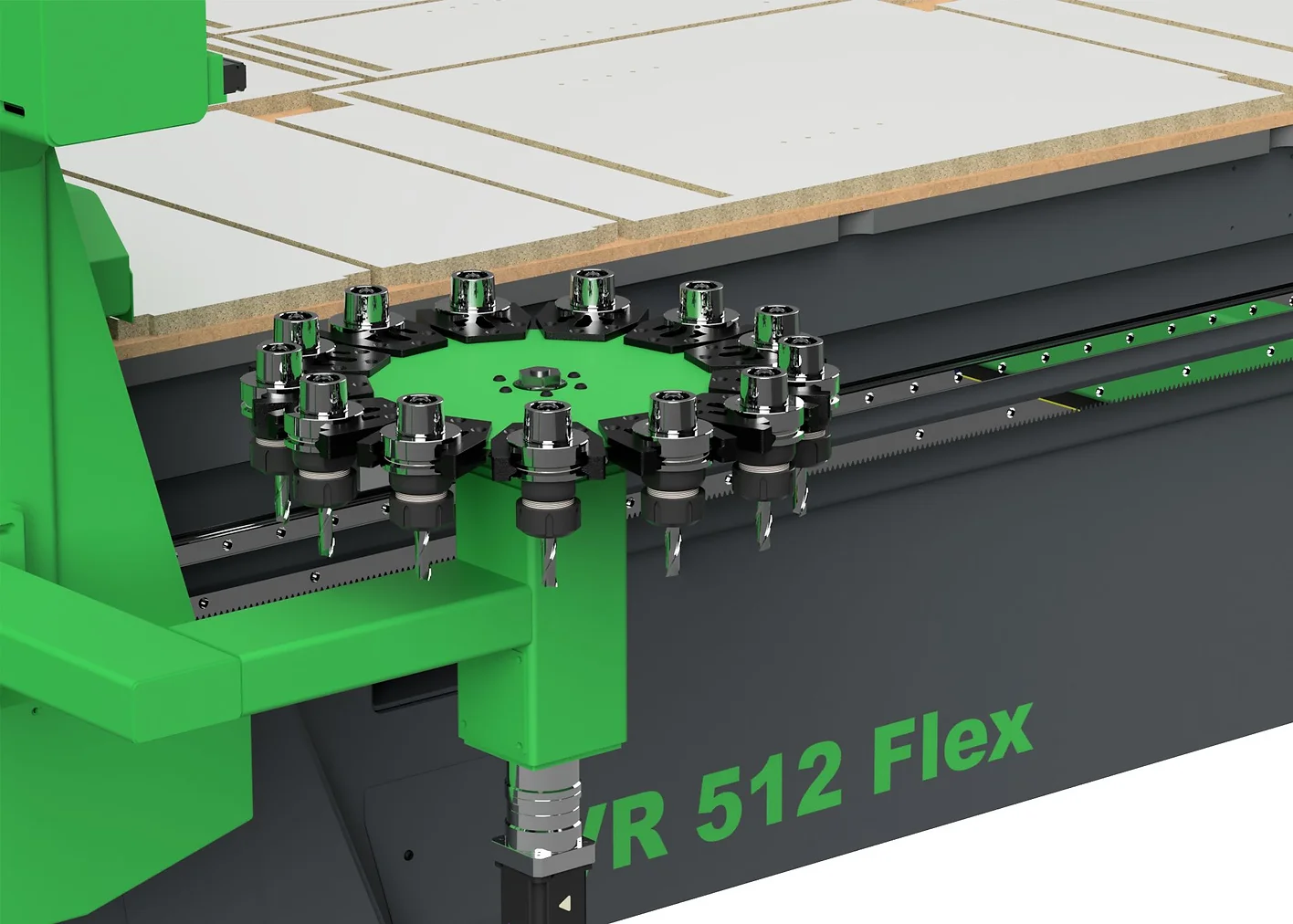

•8 Pocket Rotary Carousel Tool Changer
•Rotary C-Axis
•9 Vertical Drills
•Additional Vacuum Pump

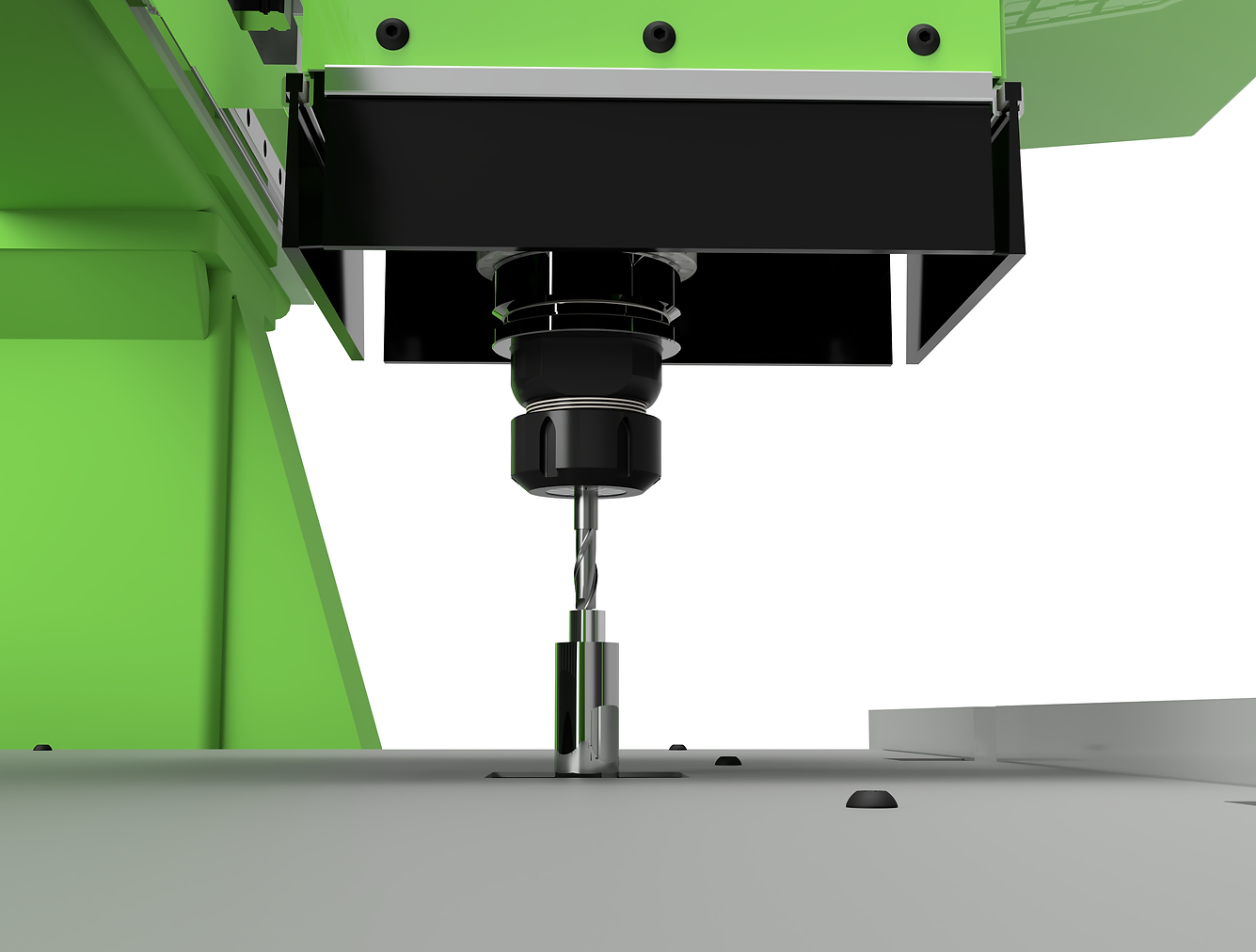

•Automatic Tool Length Touch-Off

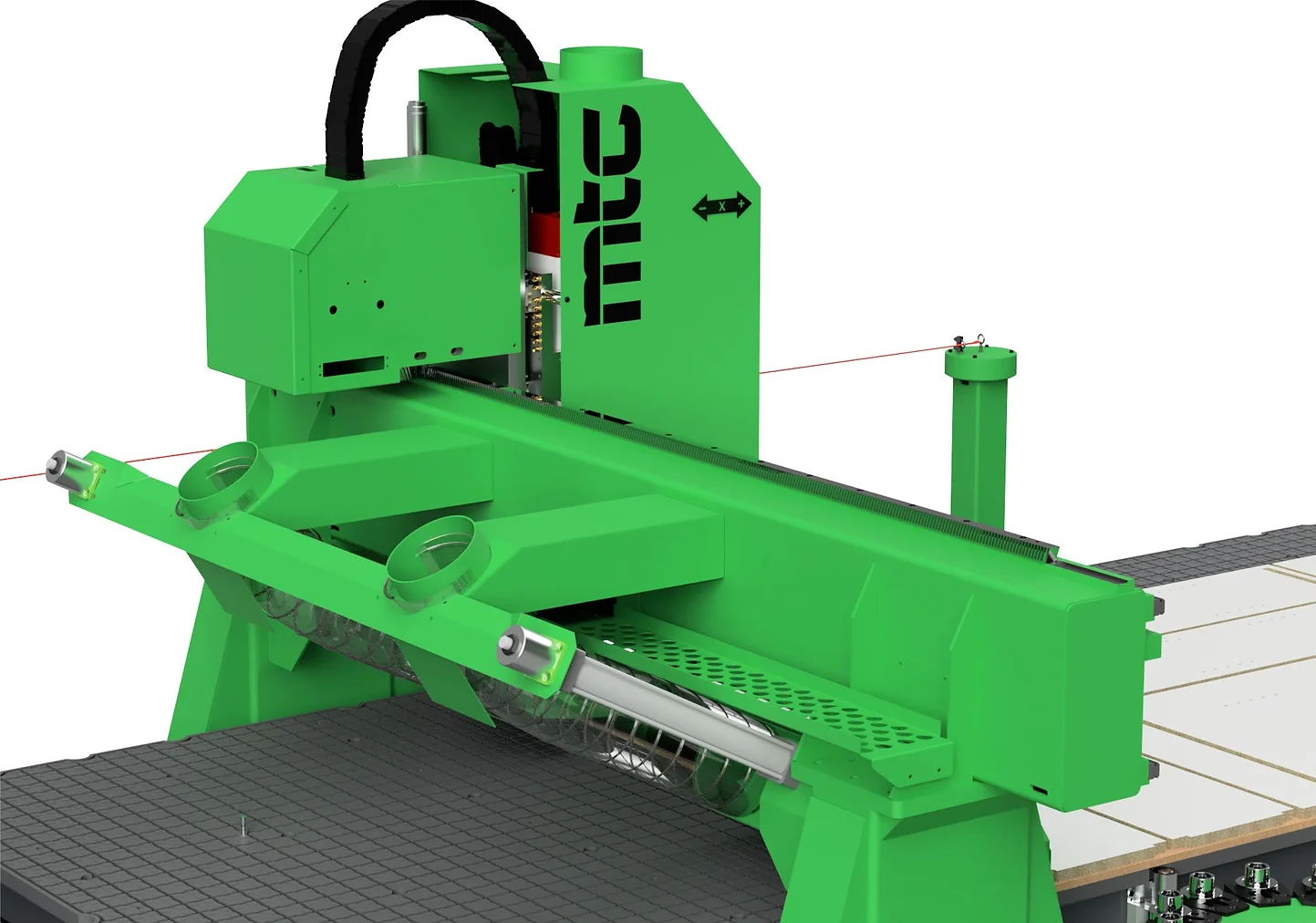

•Finished Parts Pusher/Sweeper

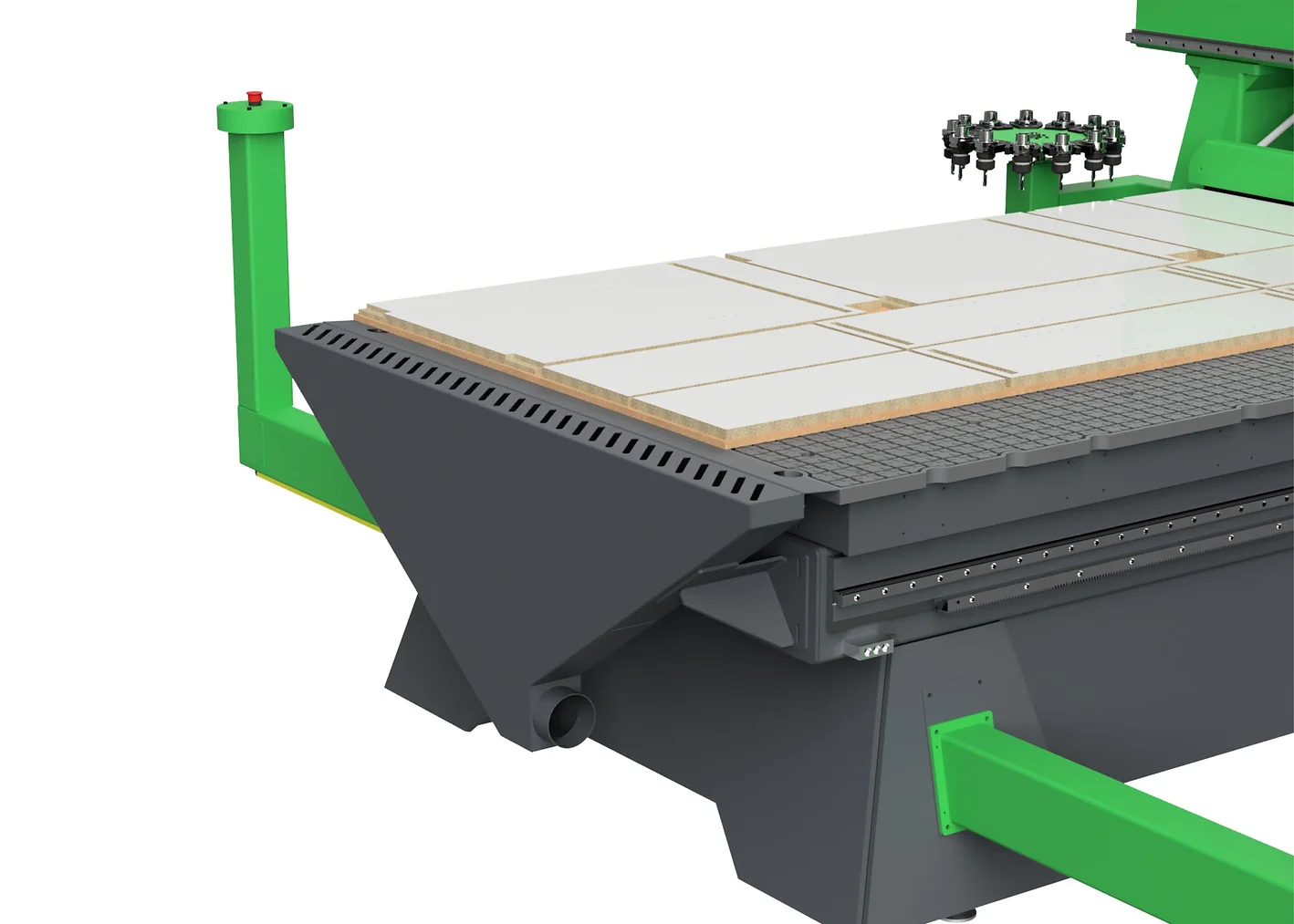

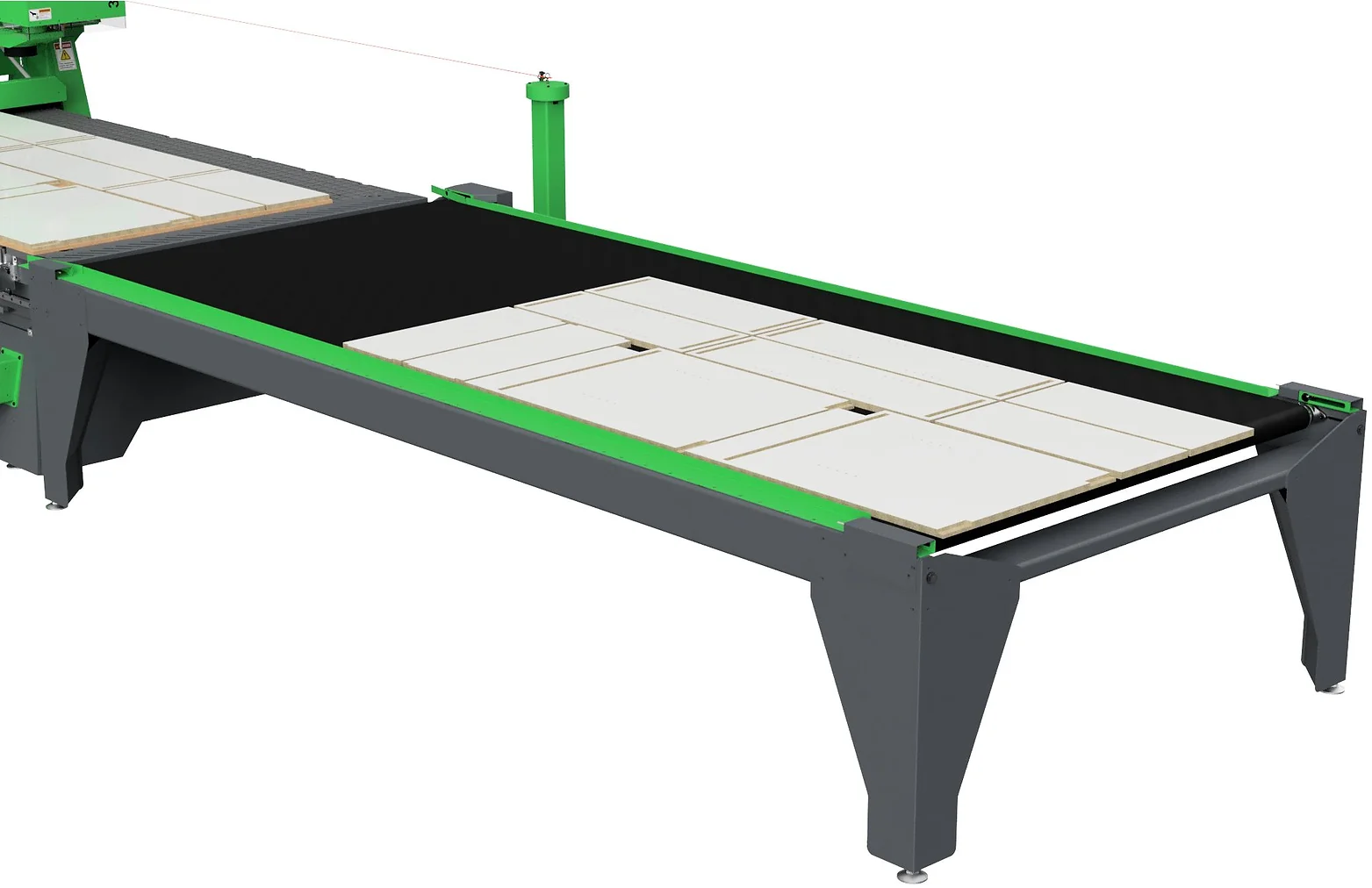

•Down Draft Unload Platform
•PC Front End
•Backside Safety Light Curtain
•CAD/CAM Programming Software
•2 Zone Vacuum Table
•Single Phase Operation -
Specs
Vacuum Matrix Table:
•5’x10’
•12″ Z Axis Bridge Clearance
Automatic Tool Change Spindle:
•HSK63-F
•Up to 24,000 rpm
•13 HP
Up to 17 Pocket Tool Changer:
•6 Pocket Rack option
•9 Pocket Rack option
•8 Pocket Carousel option
Multi-Spindle Drill Unit:
•5 Vertical Drills, 2 HP
•Oriented in X axis with full table coverage

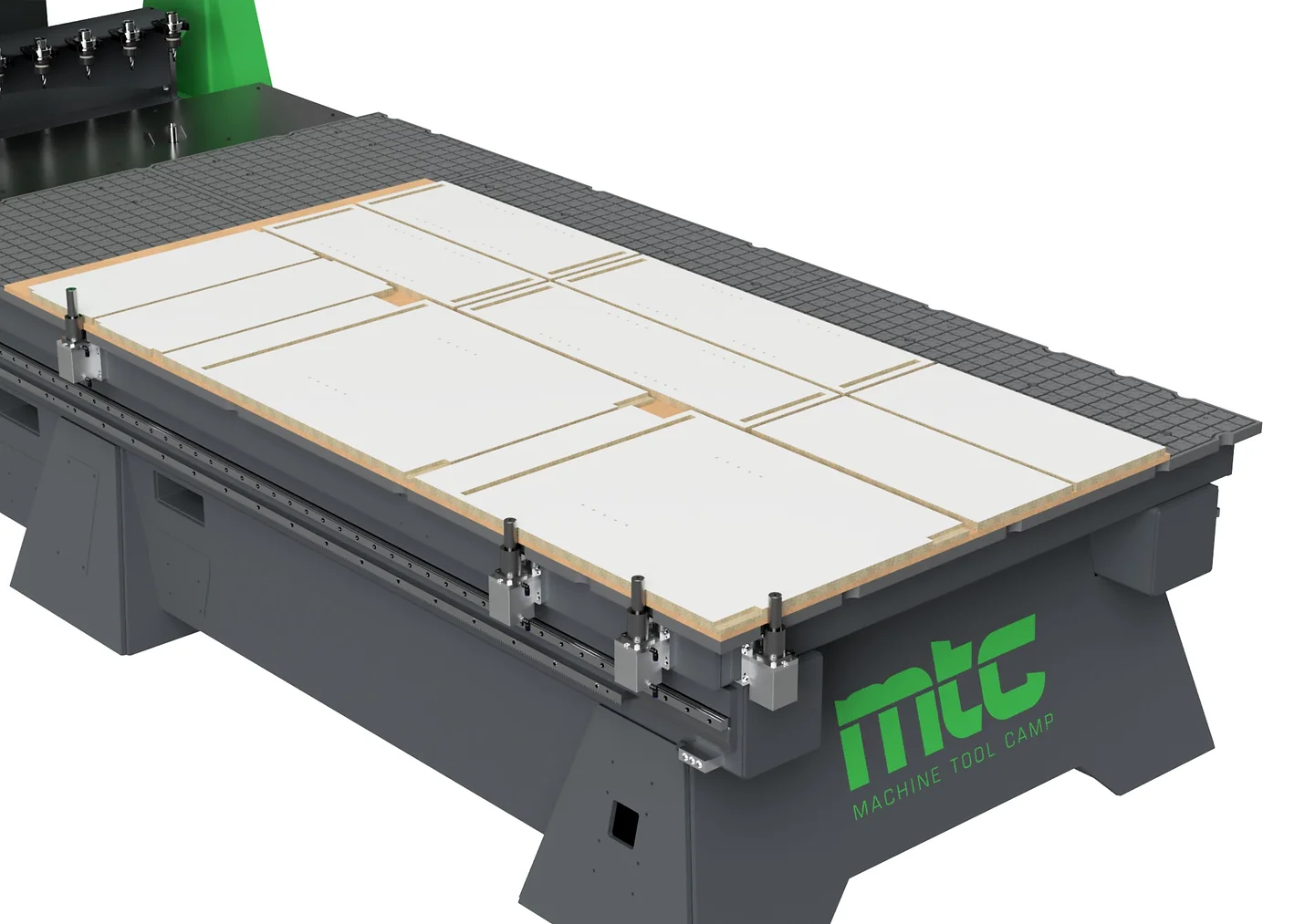

Part Location Pins
Vacuum Pump:
•10HP
•Up to 173 CFM
•25 Inches Hg
