CYCLONE 600 | Razor Gage | Cutoff Saws
Power:7.5HP 230/460V 3PH

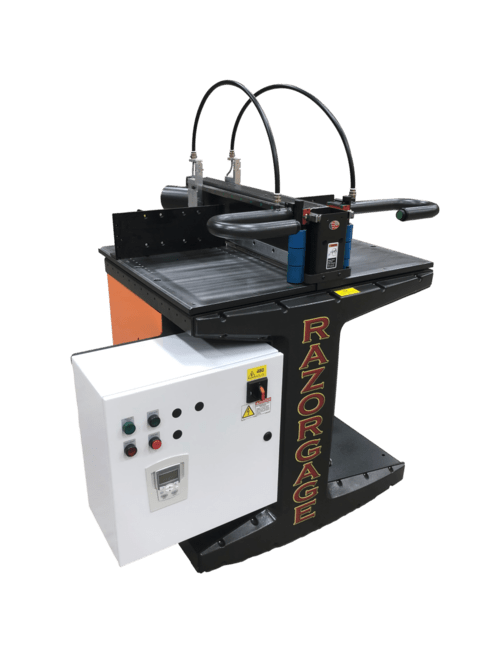

The Cyclone 600 Upcut Saw from RazorGage is one of the safest, most rugged and precise upcut saws on the market. This industrial upcut saw provides razor sharp cuts 20 inches wide with virtually no tearout. Use the Cyclone 600 to cut wood and other materials, or use it as an upcut aluminum saw. RazorGage saws and saw systems are built with superior hardware designed to last. Our products consistently outperform the competition, and we pride ourselves on the quality of our materials and components.The saw Cyclone 600 upcut saw blade mounts directly to a 7.5 HP Baldor spindle motor that glides on machine tool grade, recirculating ball linear bearings for ultimate rigidity and simplicity with no belts that can wear out. Intelligent Frequency Drive controls the saw blade RPM and requires no air logic to operate. Using the Cyclone 600 Industrial Upcut Saw
On most upcut saws, it’s easy to cycle the saw without powering up the motor. This allows operators to run the unpowered blade into a piece of stock accidentally which can have devastating effects on the blade and spindle. We designed the Cyclone 600 so that it won’t cycle without motor power.
On the work surface, our patented Safe T Crowders improve safety. The upcut saw operator can crowd stock against the fence while safely cycling the saw via thumb-operated 2-hand anti-tie down buttons. Other upcut saws offer traditional 2-hand anti-tie down buttons mounted on the front of the saw. Since the operator’s hands are not available to crowd the material to the fence, pneumatic clamps must be added to both the left and right sides of the blade. Both clamps must fire simultaneously creating a dangerous situation when one or the other of the clamps lands half on the part.
On a Cyclone 600 saw, the operator still manually crowds the material to the fence but via the Safe T Crowder handles. This enables him to crowd on the left, right, or both sides as he sees fit but still keeping his hands away from the blade.
There is a 16” fence and table surface on both sides of the blade, allowing you to place your material on either side, depending on your needs. This upcut saw can be equipped with a low fence or high fence.
The Top Clamp travels on linear bearings and is driven by its own cylinder so you can adjust clamping speed and pressure independently. Quickly adjust the top clamp height with flip stops.
Specs•Cuts materials up to 1″ x 20″ or 6″ x 6″.
•16″ fence and table surface on both sides of the upcut saw blade.
•Patented Safe T Crowders improve safety.
•Saw blade access panel bolt kills power & air when loosened.
•Direct drive — NO BELTS!
•Leveling pads are included and the design allows for easy floor anchoring.
•Improved motor mount design with substantial steel construction and linear bearings
•7.5 horsepower motor
