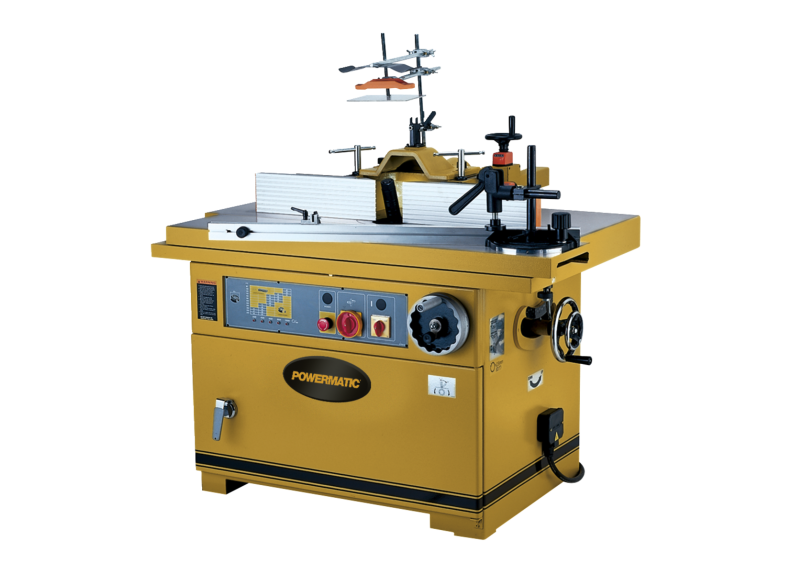

TS29 | Powermatic | Shapers

  • Power:
    7.5HP 230/460V 3PH
  • Description

    The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56″ miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

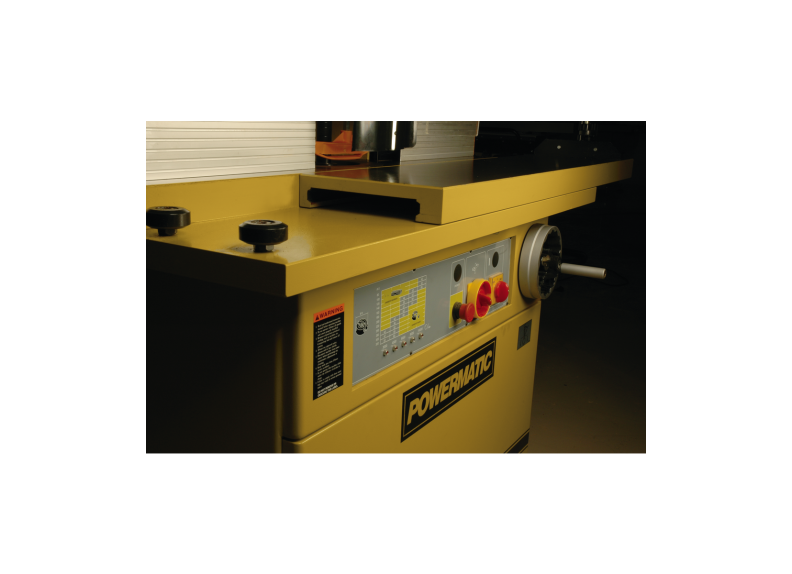

    • Five spindle speeds in forward and reverse with lighted indicator

    • Full coverage guard with workpiece hold downs

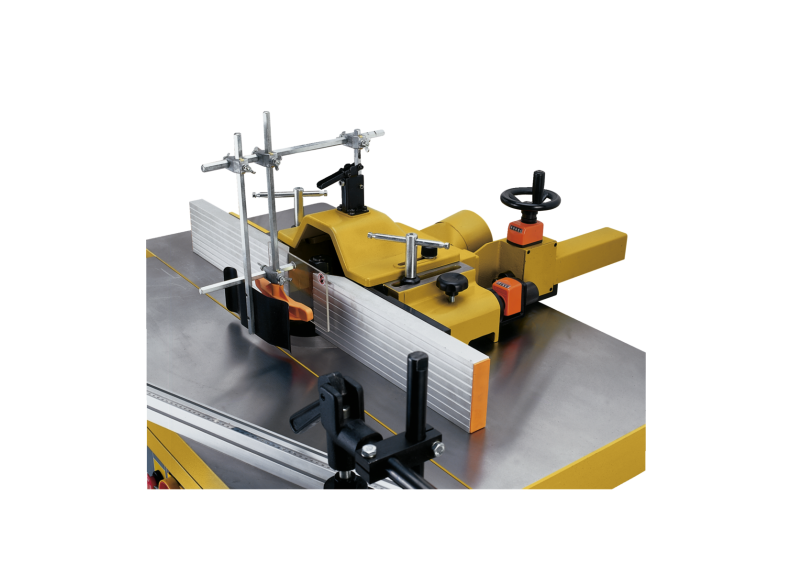

    • Fully adjustable fence has dual digital readout positioning with micrometer adjustments

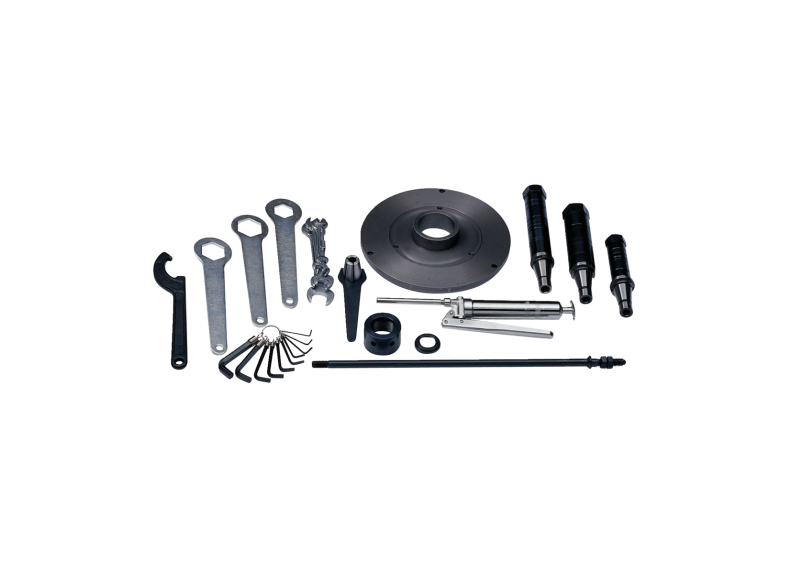

    • Includes 3/4″, 1″ and 1-1/4″ spindles

    • Large diameter multiple table inserts accommodate virtually any size cutter

    • Large table with built-in slider with room for stock feeder

    • Sliding table travels a full 49-1/4 inches

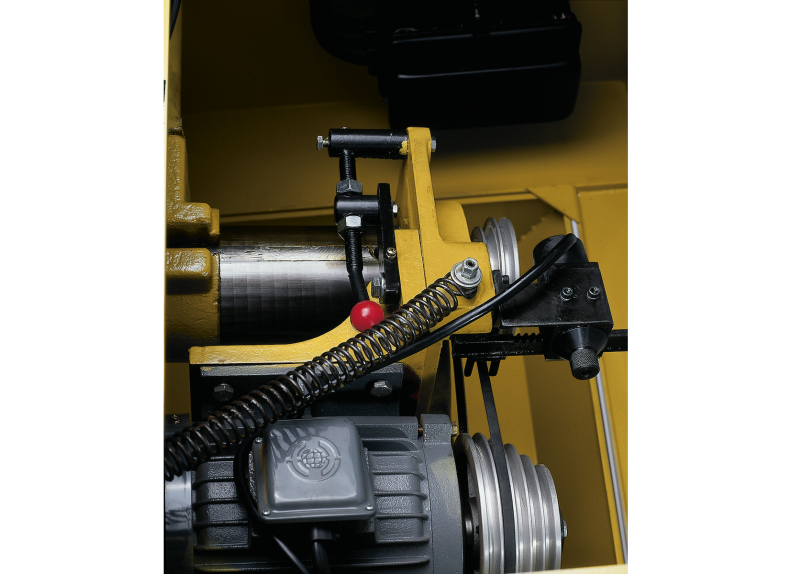

    • Tilting spindle for additional angles

  • Specs

    Dust Collection Minimum CFM Required (CFM)|800

    Dust Port Outside Diameter (In.)|5

    Maximum Diameter Cutter Above Table (In.)|12

    Maximum Diameter Cutter Below Table (In.)|9

    Maximum Spindle Diameter (In.)|1-1/4

    Motor Power (HP)|7-1/2

    Motor Voltage (V.)|230/460

    Prewired Voltage (V.)|230

    Prop 65|Cancer and Reproductive Harm

    Style (Type)|Closed Stand
