SS512CSB | Cantek | Shapers

  • Power:
    230V 3PH 7.5 HP 22AMPS
  • Description

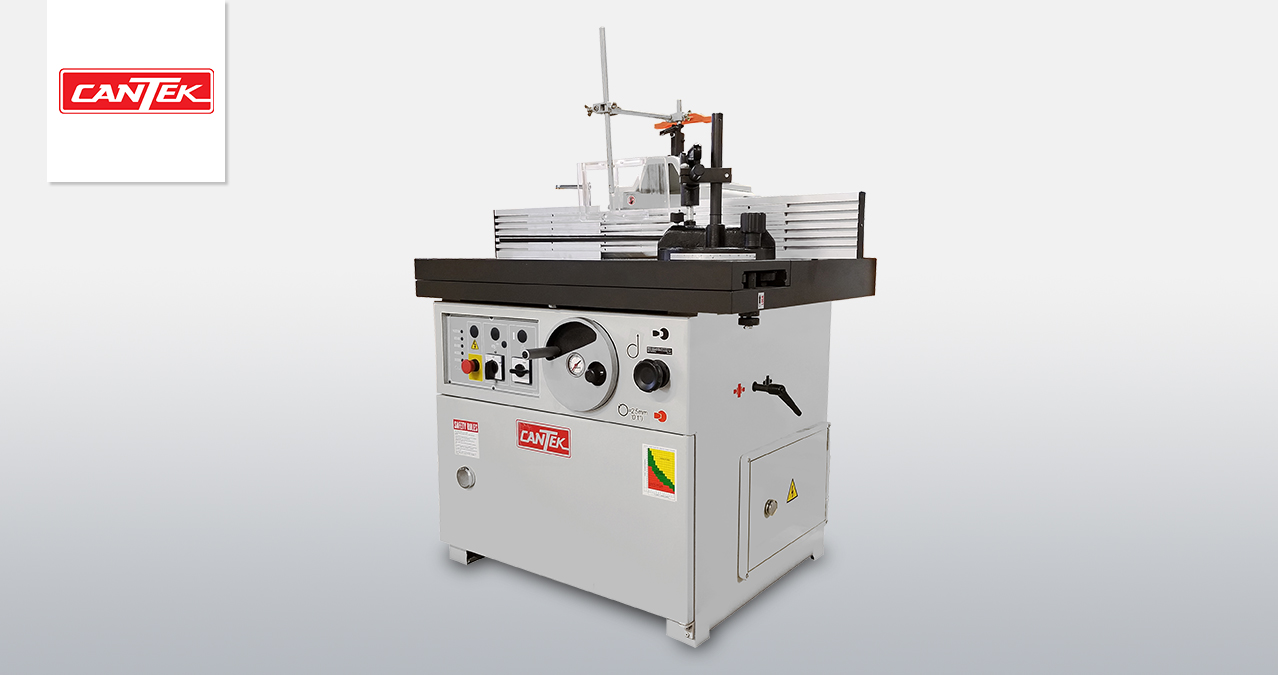

    The Cantek SS512CSB sliding table shaper is a ruggedly built sliding table shaper with refined features well suited for demanding production environments.  Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more.  The sliding table is cast iron and runs on bearings for smooth and vibration free movement. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles.  The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.

  • Specs

    Table size|31 ½” x 39.4″

    Spindle speeds (5)|3000/4000/6000/8000/10000 RPM

    Spindle taper|5 M.T.

    Spindle diameter|1 ¼”

    Motor|7.5 HP

    Sliding table dimensions|39.4” x 10 ¼”

    Sliding table stroke|37″

    Above table|13 ¼”

    Below table|8 ¼”

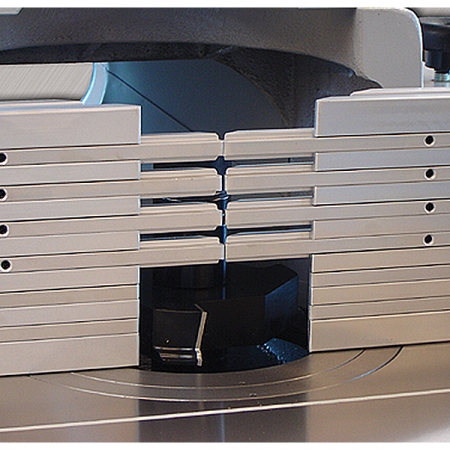

    Fence size|6″ x 43″

    Vertical spindle stroke|7″

    Useable length of spindle|5 ½”

    Dust port|(1) 5″ on guard, (1) 4″ in table

    Total HP|7.5 HP

    Net weight|1034 lbs.

    Machine dimensions|48.4″ x 39.4″ x 52 ¾”

    Shipping weight|1166 lbs.

    Shipping dimensions|45 ¼” x 37″ x 41″

    Machine electrics|230/3/60 = 22 amps
