NOVA SI 400 | SCM | Sliding Table Saws
*Circular saw with tilting blade. *Programmed or manual circular saws with 400 mm blade.
*Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.

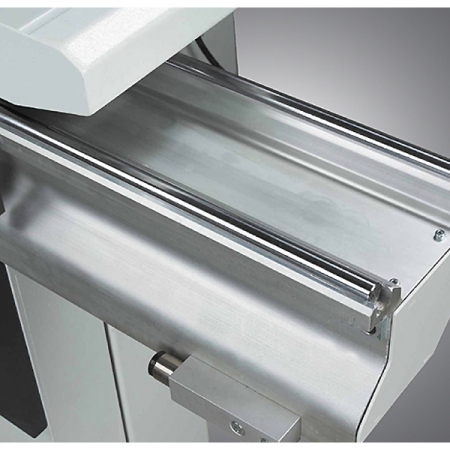

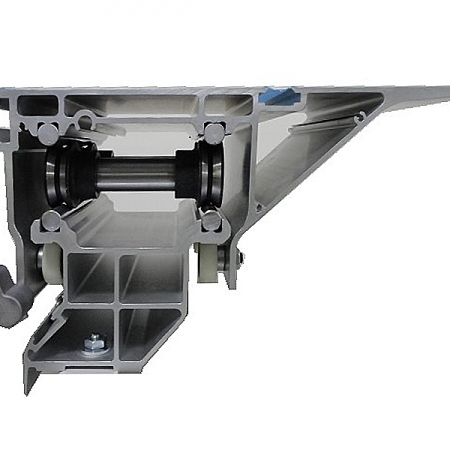

*Smooth sliding carriage and a solid work surface. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection.
*Ease of use in every day operation due to the dedicated gear box, fully protected from dust (Scm patented solution), that provides a smooth and direct transmission.
*Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position.
SpecsMax. saw blade diameter with mounted scorer mm / inches|400 / 16
Maximum saw blade projection from table to 90°/45° mm / inches|140/97 5.5/3.8

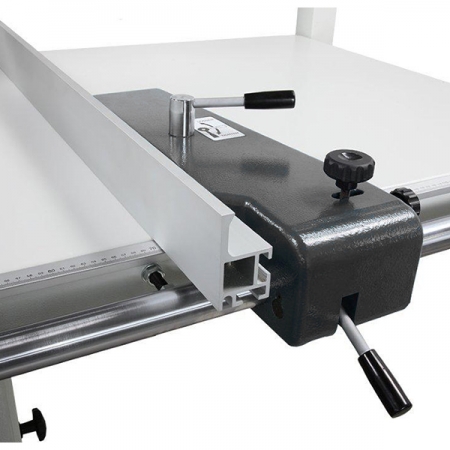

Cutting width on rip fence (Rip capacity) mm / inches|1270 / 50
Max squaring stroke of sliding table saw mm / inches|3200 / 126
Three-phase motor Hp|11
Indipendent scoring motor Hp|1
Blade tilt degrees|0 – 45
