Description

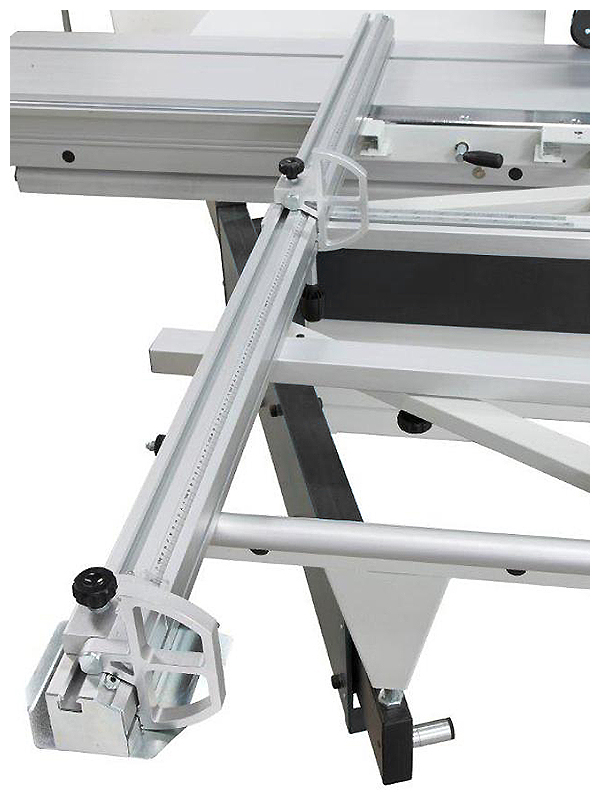

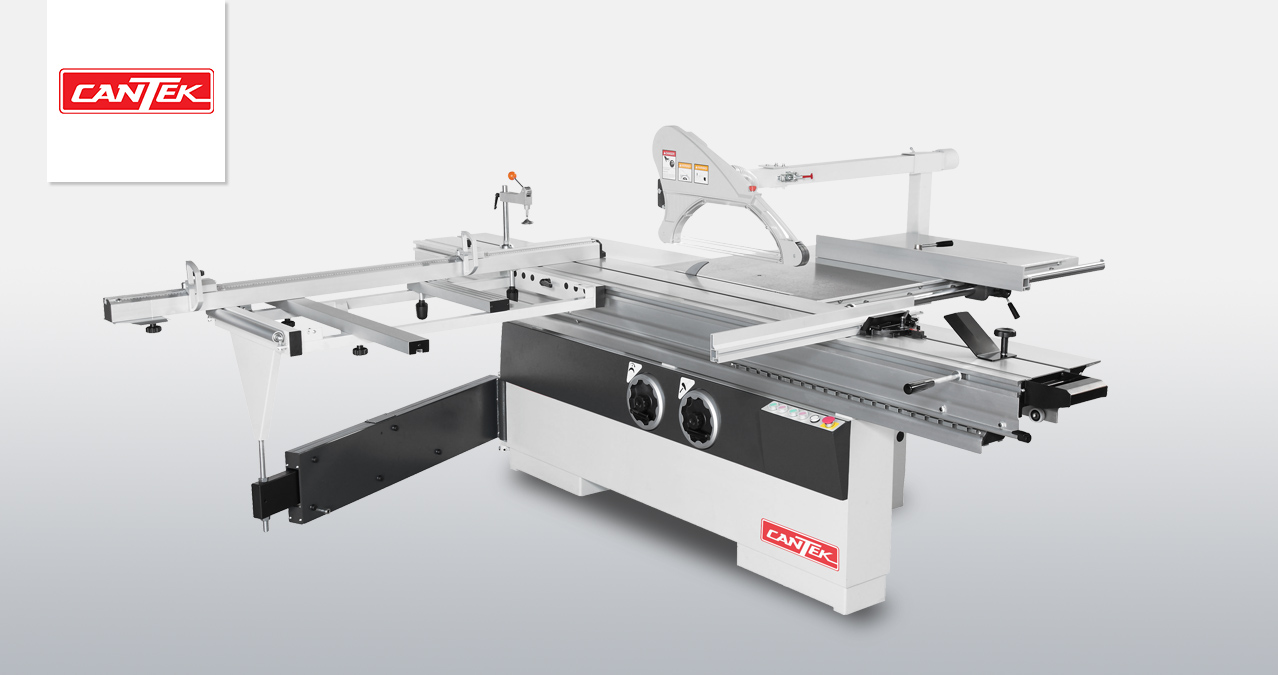

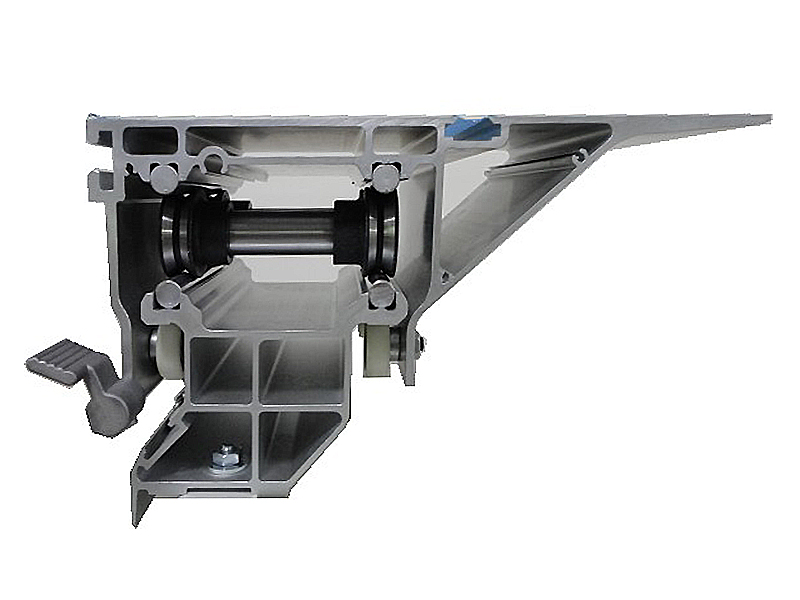

The Cantek D405M-10 10′ Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but only require manual adjustments. The D405M-10 combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results
-
Specs
Sliding table dimensions 126 x 15.5″
Cast iron table dimensions 21.6″ x 35.3″
Extension table (rear) 38.7″ x 35.25″
Extension table (front) 32.7″ x 12.6″
Table size 59″ x 68″
Main saw blade (Max.) 16″
Main saw bore dia. 30mm
Max. cutting height @ 90° (355mm) 4.13″
Max. cutting height @ 90° (400mm) 5.12″
Max. cutting height @ 45° (355mm) 2.75″
Main motor power 7.5 HP
Main blade speed 3000 / 4000 / 5000 RPM
Scoring blade dia. 120mm
Scoring blade bore dia. 20mm
Scoring blade motor power 1 HP
Scoring blade speed 8000 RPM
Max. rip cutting width 51″
Cutting width adjustment Manual

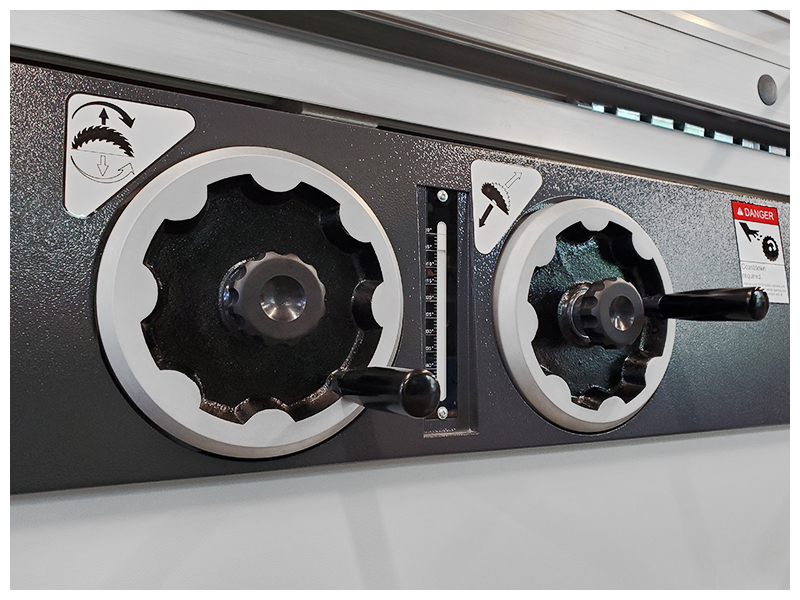

Saw blade tilting adjustment 0~45° (Manual)

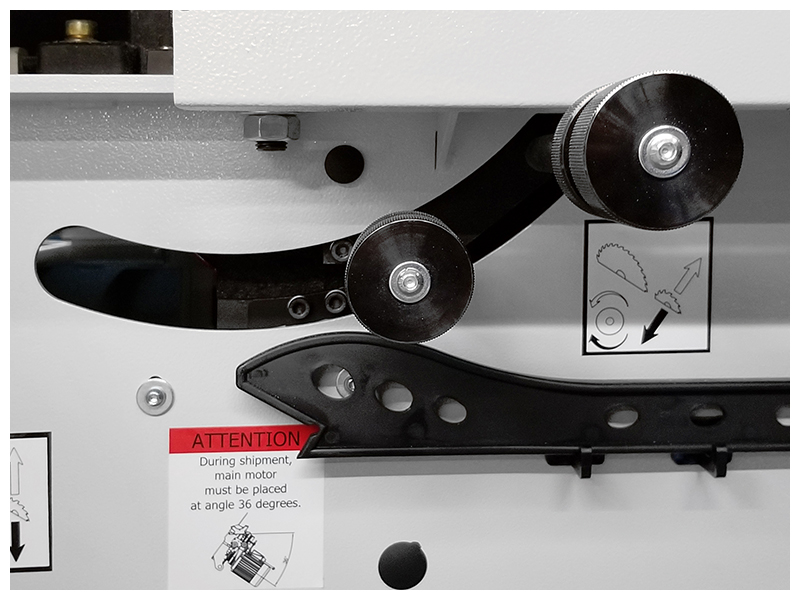

Scoring saw adjustment Manual
Dust collection outlets 4.72″ / 2.5″
Machine total weight 1612 lbs.
Machine shipping details 1428 lbs (83″x46″x44″)
Sliding table shipping details 380 lbs (137″x20″x15″)
Overhead guard shipping details 80 lbs (40″x36″x6″)
Electrics 230/3/60 = 26.2 Full Load
Electrics 230/1/60 = 36 Full Load Amps -
