#411A | Cameron | Ripsaws

  • Power:
    230/460V 3PH
  • Description

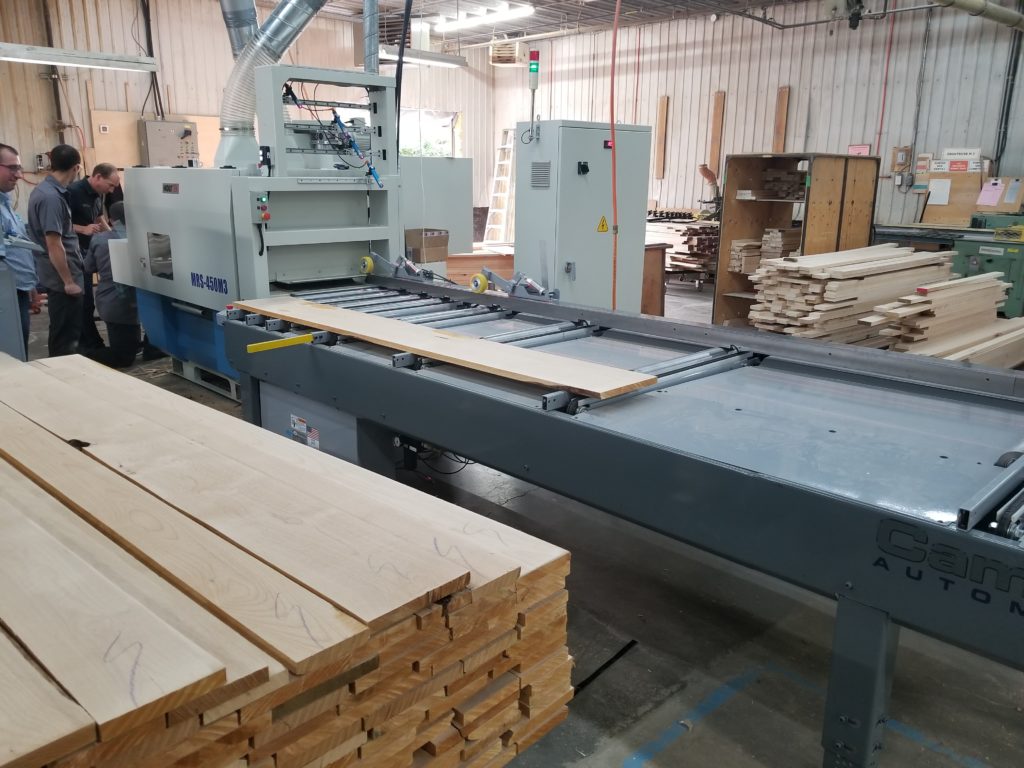

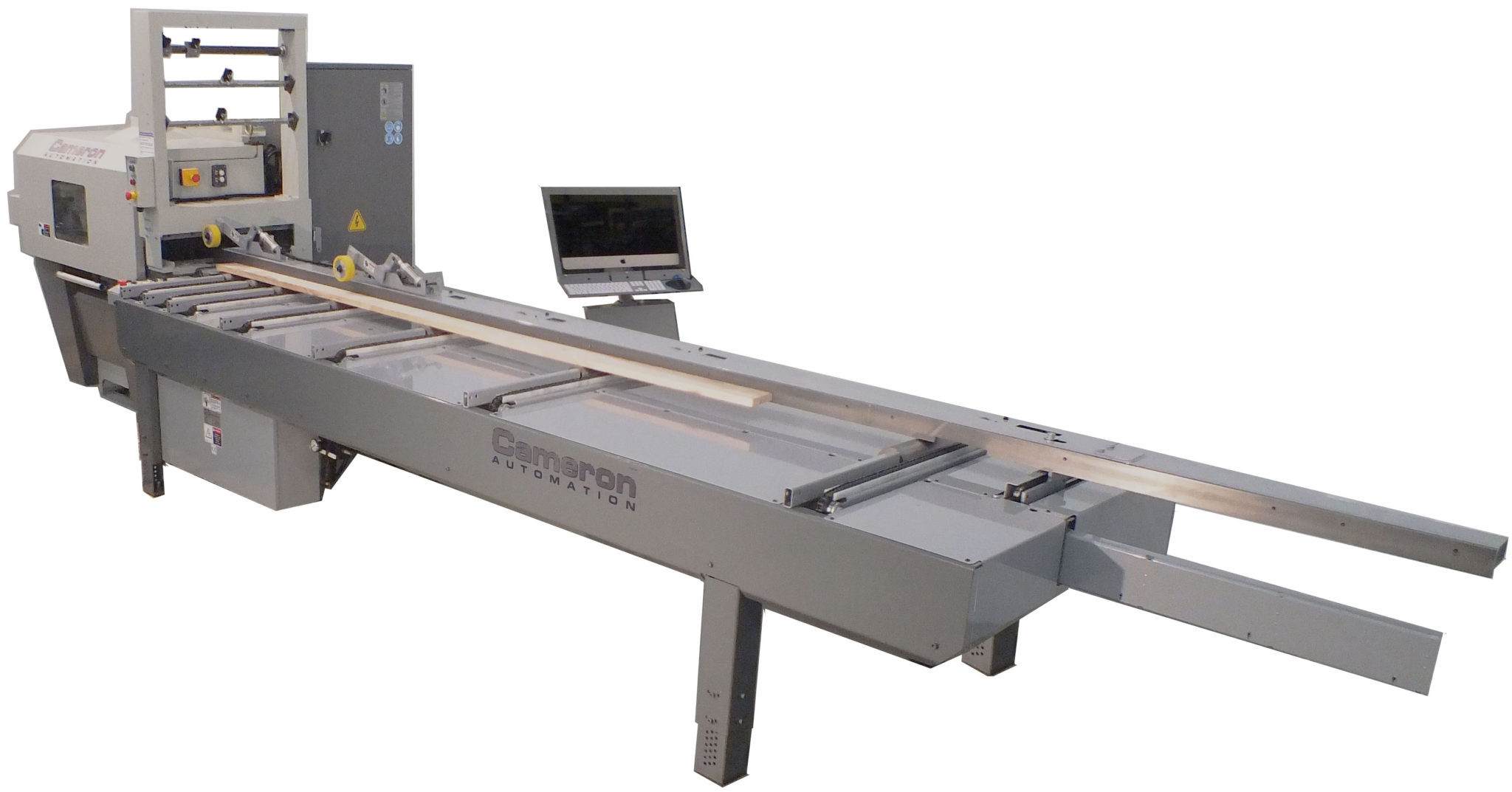

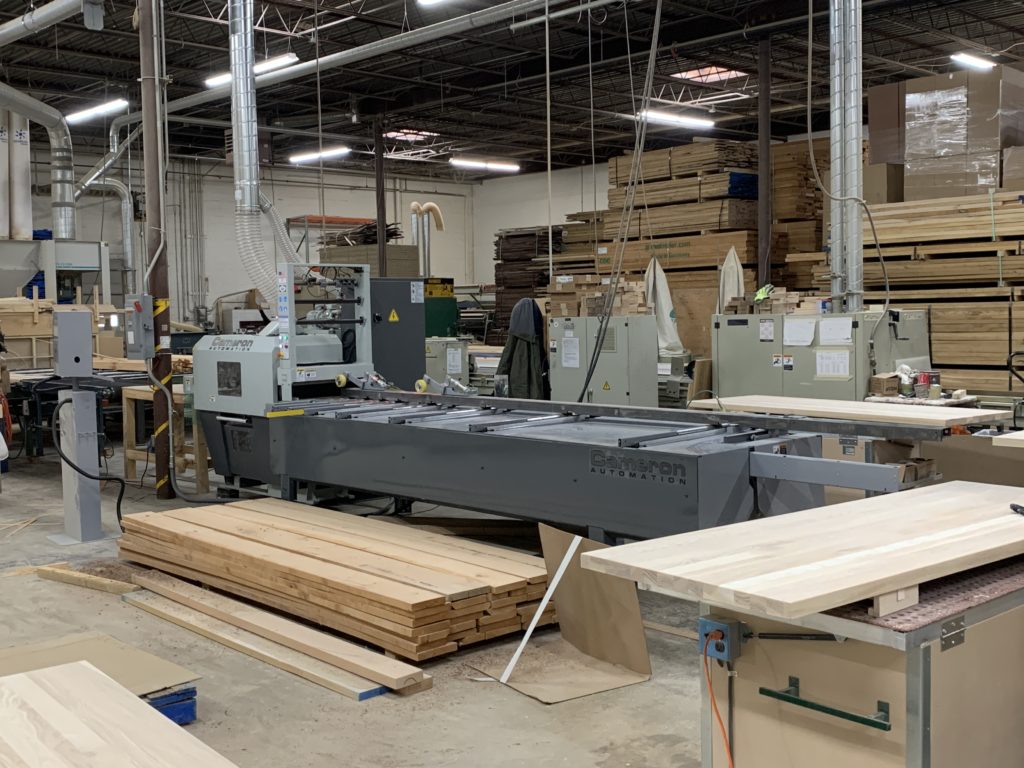

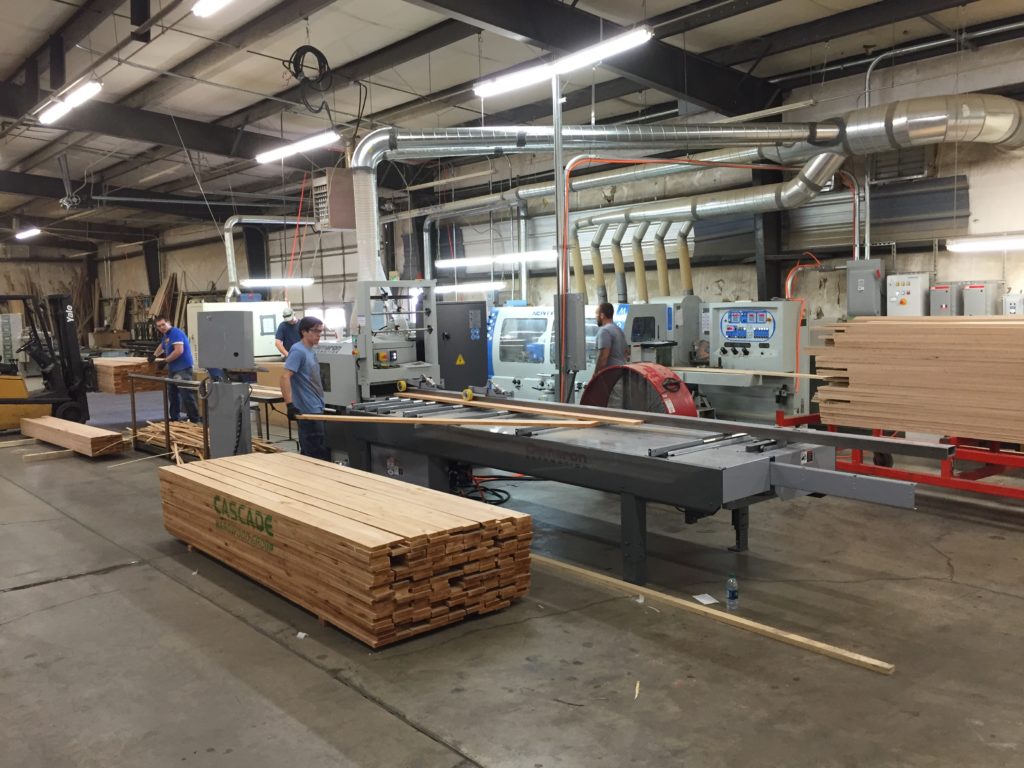

    The Skew is a highly efficient, inexpensive, full featured, rip optimization system designed to fit any 12″ wide gang rip saw and specifically developed for the custom shop. The unique feature of The Skew is the “skewing fence”.  It has the ability to twist and feed the board into the saw to get the best yield.  The Skew also has all the features of the high-end optimization systems like: lumber tallying, pack reporting, bundle reporting, yield calculations, simulations, and much more. The greatest benefit of The Skew is the Return on Investment, which can be well under 1 year.

  • Specs

    Cameron Skew Infeed

    Lumber Capacities

    •Standard Machine: 5 Ft. Minimum / 16 Ft. Maximum

    •Short Stock Machine: 28″ Minimum / 16 Ft. Maximum

    •Thickness Tolerances

    12″ Saw Blades: 2.5″

    14″ Saw Blades: 3.75″

    •Maximum Width (Incoming Material)|15″ Wide

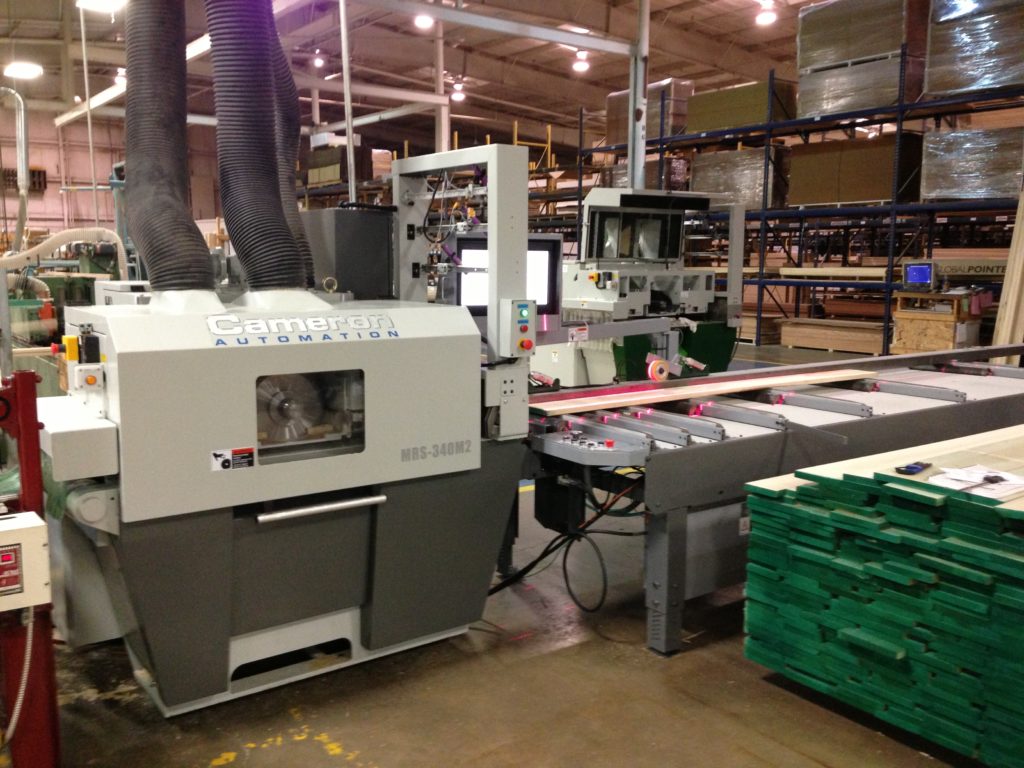

    Cameron #413A- Rip Saw

    •(2) Servo Controlled Movable Blades

    •Multiple Fixed Blades

    •Pocket Sizes between Saw Blades

    •Between (2) Fixed Blades: 1″

    •Between Fixed Blade and 1st Movable Blade: 1″

    •Between (2) Movable Blades: 1.875″

    •Feed Speed

    Minimum: 26 ft/min (8 m/min)

    Maximum: 130 ft/min (40 m/min)

    •Electric Motors:

    Arbor Motor: 50 Hp

    Feed Motor: 3 Hp

    •Three (3) sets of anti-kickback fingers

    (4) individual Pneumatic pressure rolls

    •Steel dip chain construction with urethane inserts

    •Powered out-feed roller

    •Digital controlled lubricator for feed chain.

    •Amp meter for monitoring arbor motor running amperage

    •Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances

    •Easy access to spindle and blades for maintenance and tooling changes
