Description

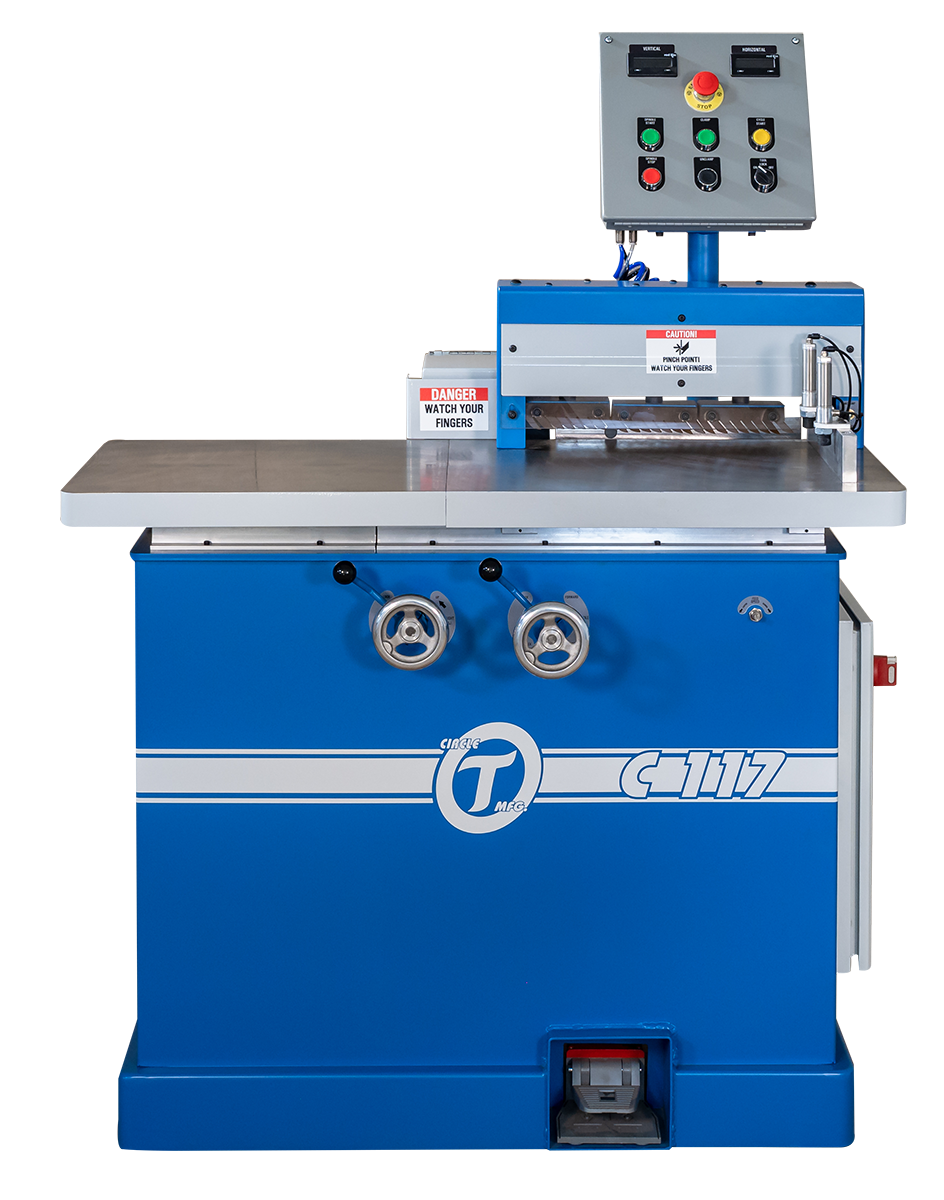

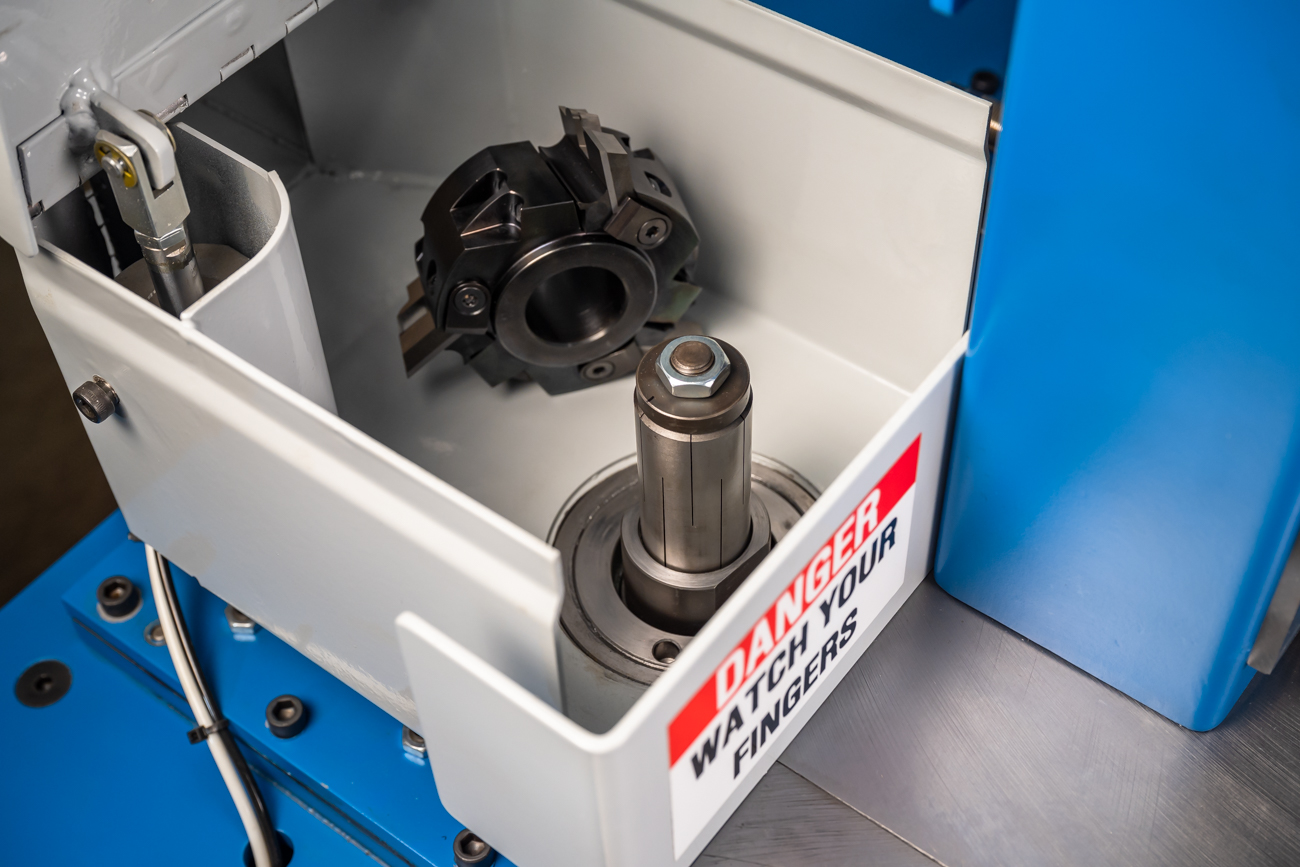

•EASY QUICK-CHANGE Spindle •EASY Foot Pedal Cycle Start

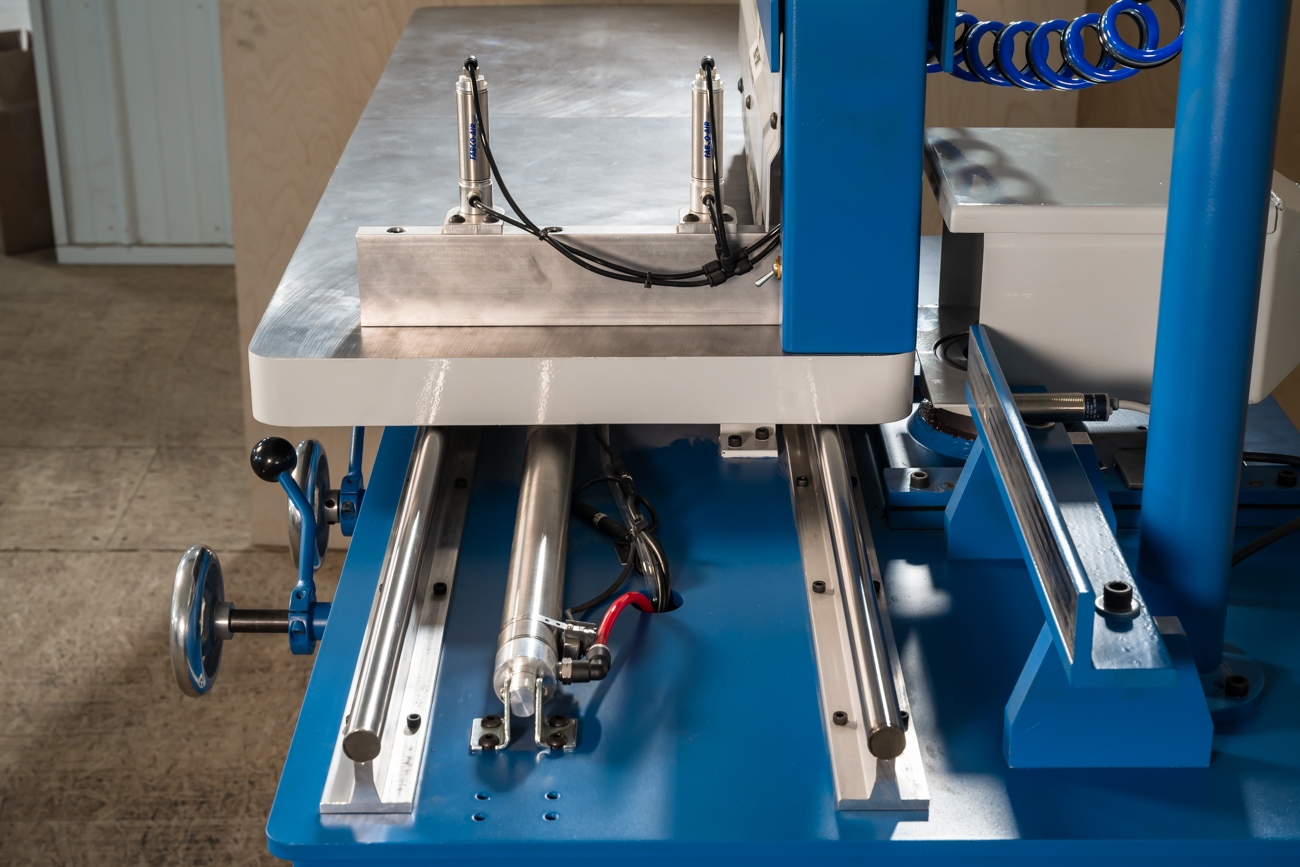

•EASY Pneumatic Hold-Down Clamp System
•EASY Backer Block Change
•EASY Y and Z Axis Adjustment with Digital
Readouts
•3” and 4” ID Head Compatible
•16” Wide Cutting Capacity
•1.25” Spindle
•Flat Belt Drive
•Use your current heads on the

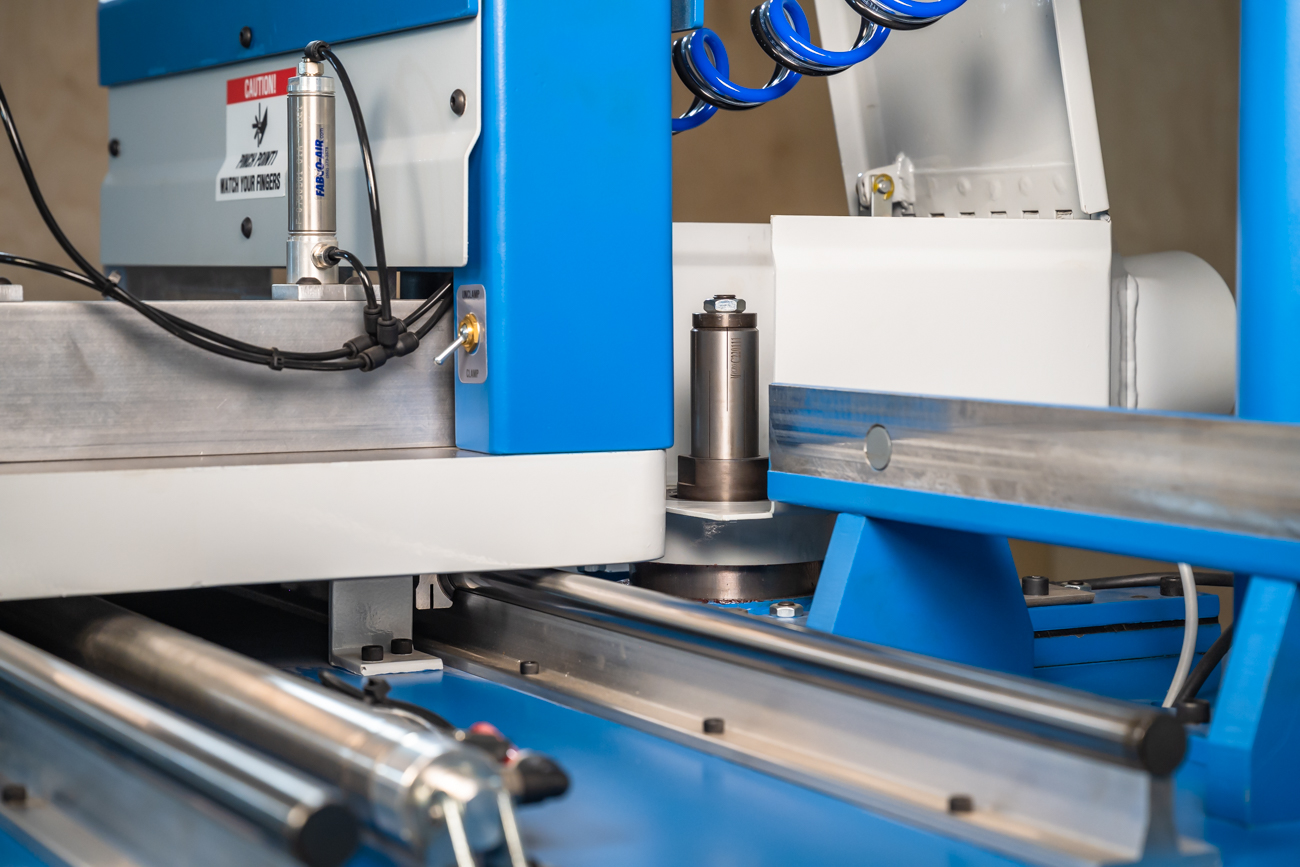

•QUICK-CHANGE spindle – no tool holders
needed -
Specs
DRIVE PACKAGE SPECIFICATIONS:
Main Motor: 5 H.P.
1.25” Spindle
4” Diameter Cutter Compatible
Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
Flat Belt Drive
Y and Z Axis Spindle Adjustment with DRO
UTILITY REQUIREMENTS:
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 90-100 PSI to Power Table and Clamp
25 Amp FLA @ 460v 3ph
40 Amp FLA @ 230v 3ph
DIMENSION SPECIFICATIONS:
Table Size: 44” L x 17” W
Table Height: 36”
Footprint: 46” L x 29” W x 60” H (Additional 20” needed on left side for table movement)
Working Area Footprint: 63” L x 28” W x 60” H
SHIPPING WEIGHT: 1100lbs
SHIPPING DIMENSIONS: 41”L x 48”W x 67”H -
