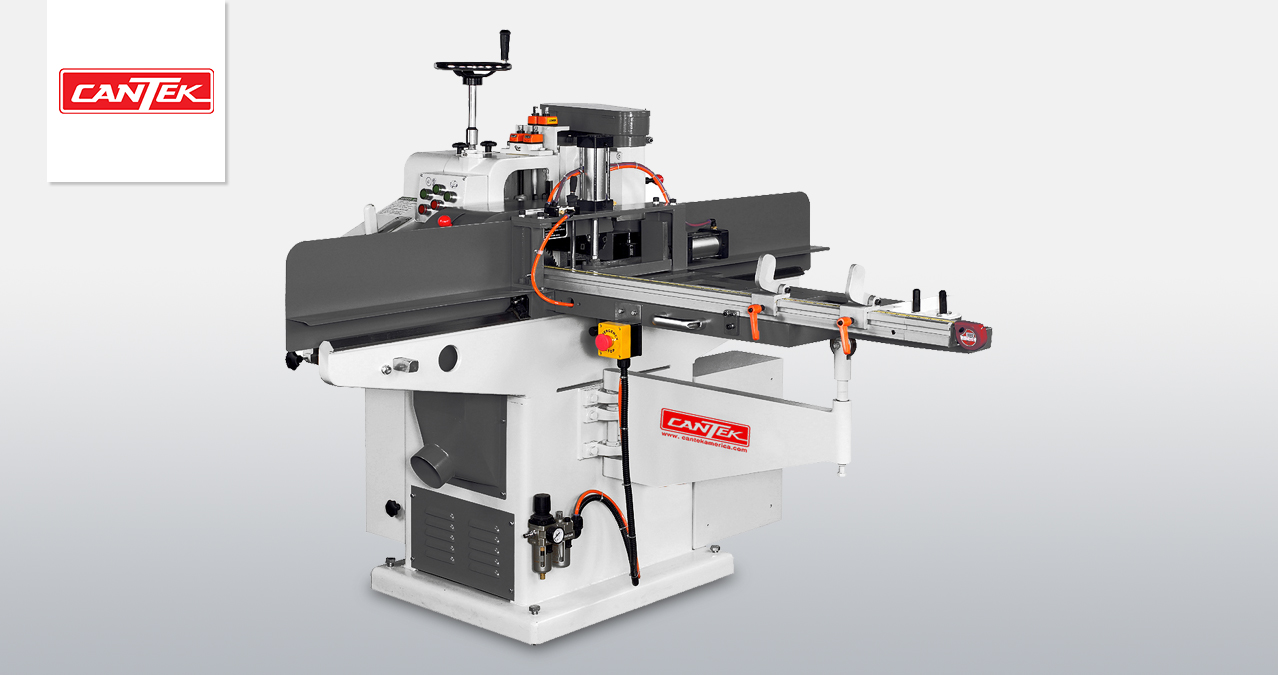

ST152C | Cantek | Mortisers & Tenoners

  • Power:
    230/460V 3PH 17.5HP 48/24AMPS
  • Description

    The Cantek ST152C Single End Tenoner offers superior tenoning results in a economical solution.  The 12” trim saw unit is mounted in front of the tenon heads and enables stock to be cut to the desired length.  The two horizontal spiral insert knife tenoning heads are capable of producing a tenon up to 6” long.  The heads are accurately adjusted using mechanical digital readouts.  The spiral insert heads produce an extremely smooth finish result.  The two opposed coping heads allow for long tenons to pass between to produce a profile to match your rail profile.   The coping heads are also adjusted using precision mechanical counters.

  • Specs

    Maximum tenon cut




    Maximum tenoning cutterhead size|4.3” dia. x 6” long

    Maximum shaping cutterhead size|Ø 6 3/8″

    Maximum sawblade diameter|Ø 12 “

    Spindle diameter

    Tenon spindle|1 ¼”

    Cope spindle|1 ¼”

    Saw spindle|1 ¼”

    Spindle speed

    Tenon spindle|3400 RPM

    Cope spindle|6000 RPM

    Saw spindle|2800 RPM

    Motor horsepower

    Saw & tenon heads|7.5 HP

    Cope heads||5 HP x 2

    Sliding table area|50.4” x 17.7”

    Electrics|230/3/60 = 42 full load amps

    Net weight|1716 lbs

    Gross weight|1914 lbs

    870 kgs

    Machine dimensions (LxWxH)

    66” x 73” x 46”

    1680 x 1840 x 1150 mm

    Packing dimensions (LxWxH)

    67” x 31” x 56”
