SS512CB | Cantek | Shapers

  • Power:
    230V 3PH 7.5HP
  • Description

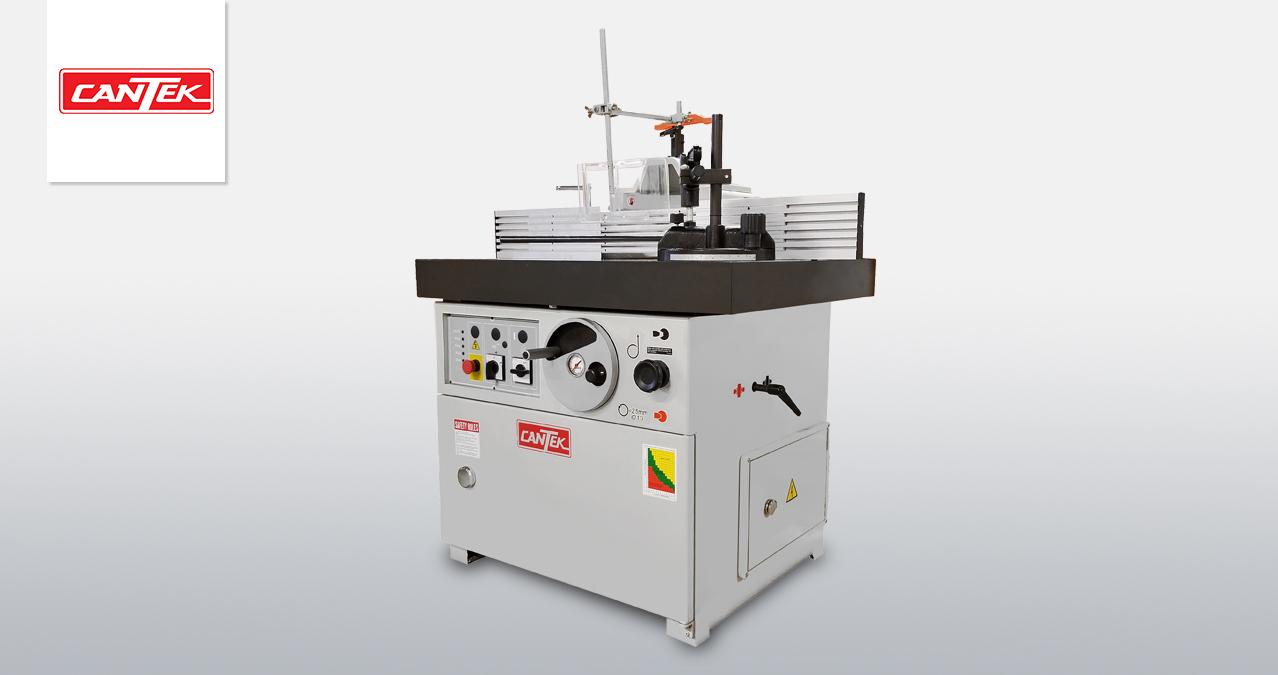

    The Cantek SS512CB shaper is a ruggedly built shaper with refined features well suited for demanding production environments.  Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more.  The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles.  The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.

  • Specs

    Table size|31 ½” x 39.4″

    Spindle speeds (5)|3000/4000/6000/8000/10000 RPM

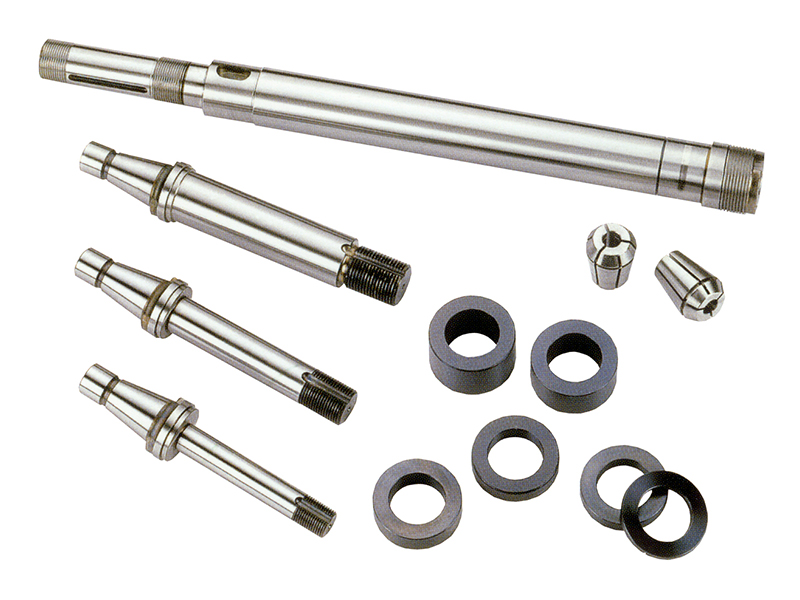

    Spindle taper|5 MT

    Spindle diameter|1 ¼”

    Motor|7.5 HP

    Above table|13 ¼”

    Below table|8 ¼”

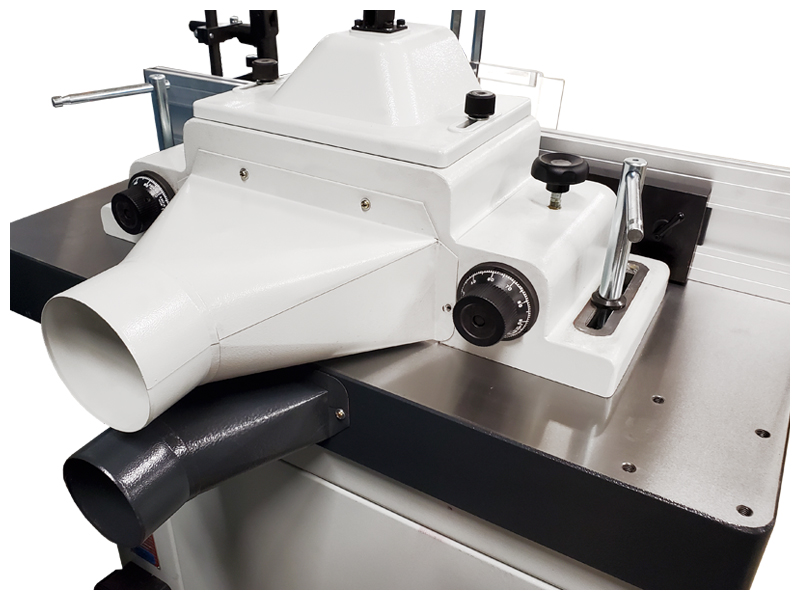

    Fence size|6″ x 43″

    Vertical spindle stroke|7″

    Useable length of spindle|5 ½”

    Dust port|(1) 5″ on guard, (1) 4″ in table

    Total HP|7.5 HP

    Net weight|1034 lbs.

    Machine dimensions|48.4″ x 39.4″ x 52 ¾”

    Shipping weight|1166 lbs.

    Shipping dimensions|45 ¼” x 37″ x 41″

    Machine electrics|230/3/60 = 22 amps
