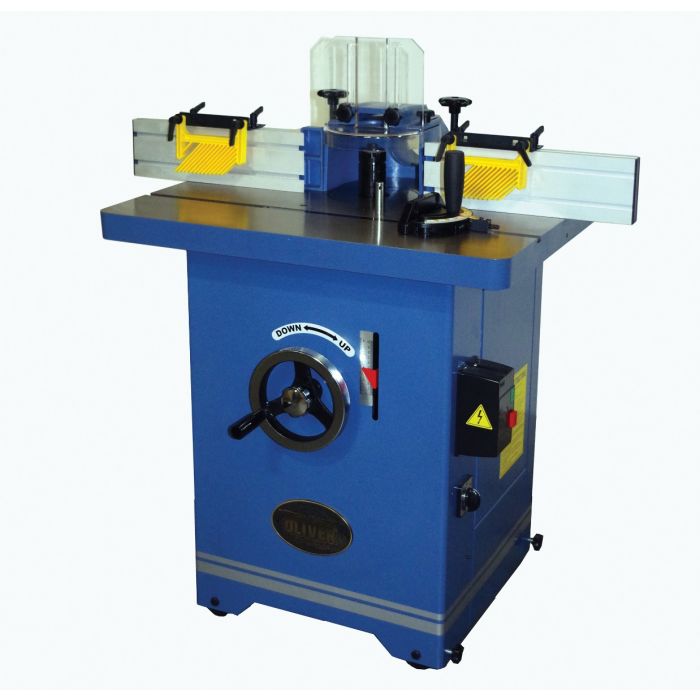

10047 | Oliver | Shapers

  • Power:
    220V 1PH 3or 5HP
  • Description

    •Large cast iron table is precision ground table to provide a solid work surface.

    •Table features pre-drilled and threaded holes for optional power feeder.

    •Full cabinet stand includes wheels and locks.

    •1-1/4” interchangeable spindle included, other optional sizes available.

    •Optional router bit collets available.

    •Four spindle speeds for versatility

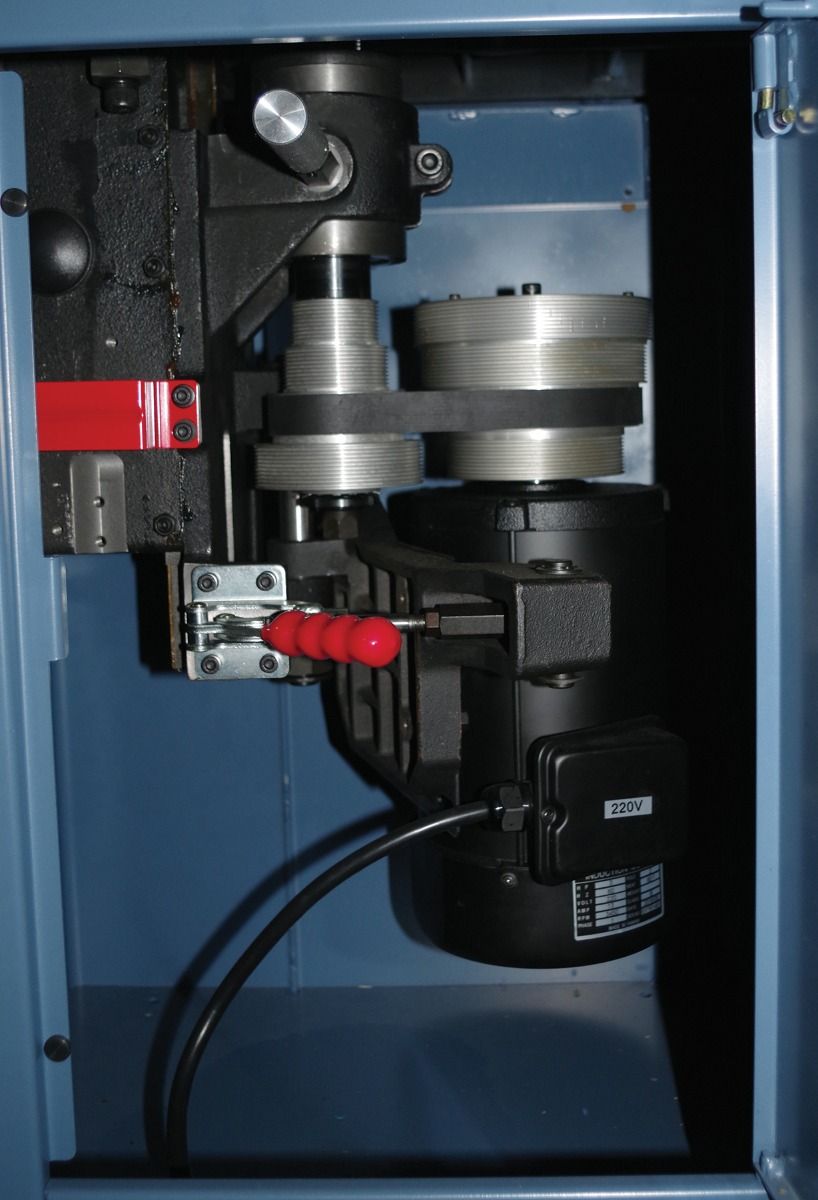

    •Belt changes are quick and convenient with unique tensioner.

    •Poly V-belt drive for smoother operation.

    •Spindle reverses for more options with each set-up.

    •Four inches of spindle travel allows more set-up options.

    •Starting pin for irregular shapes included.

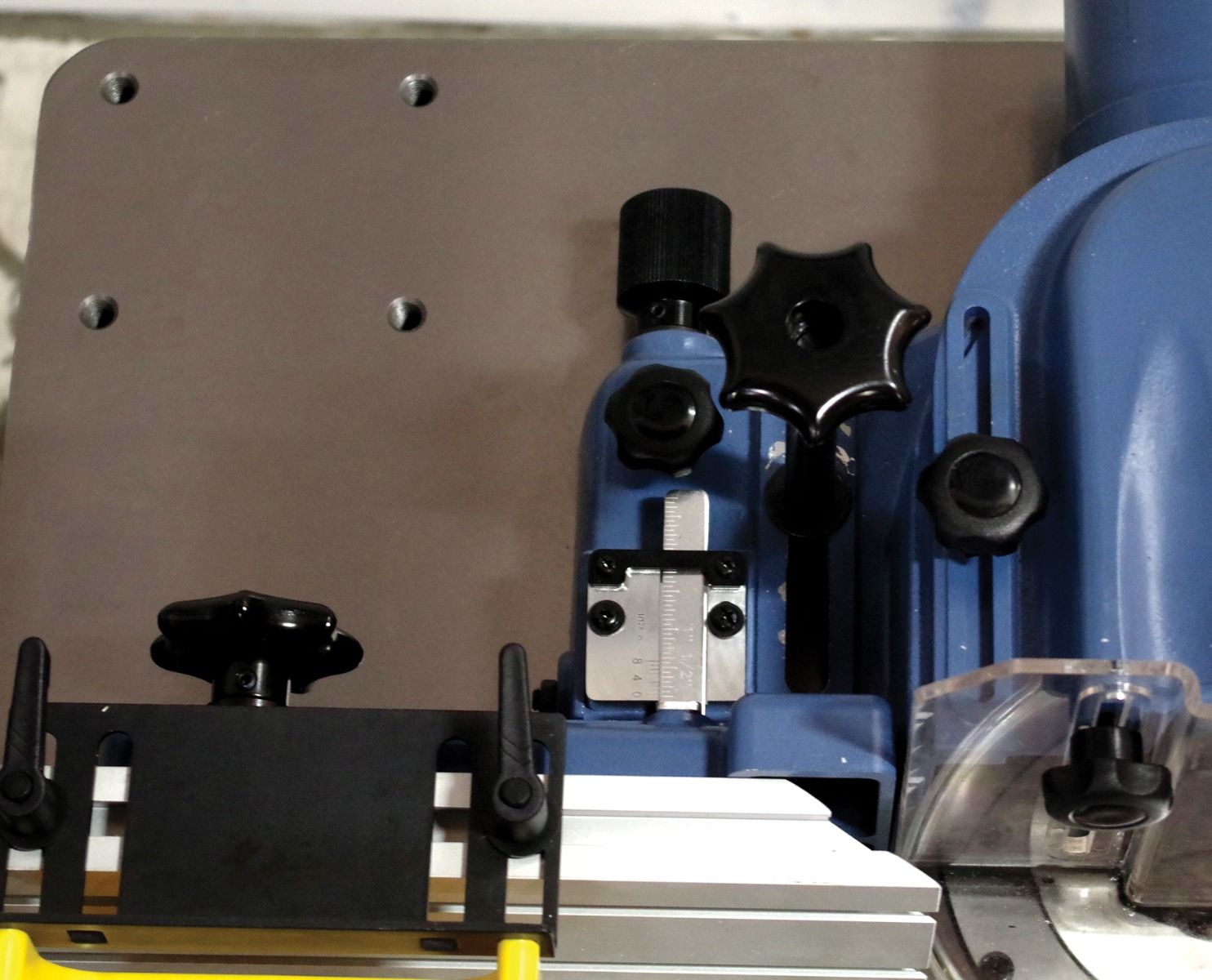

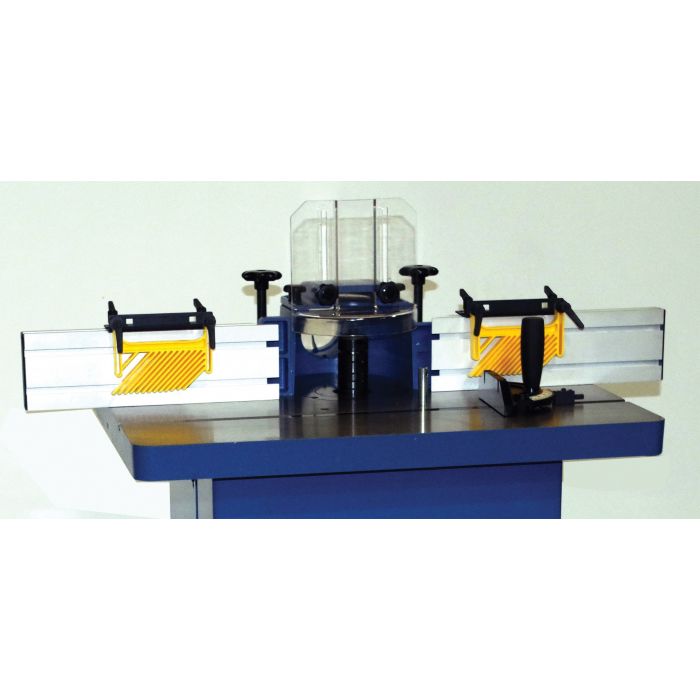

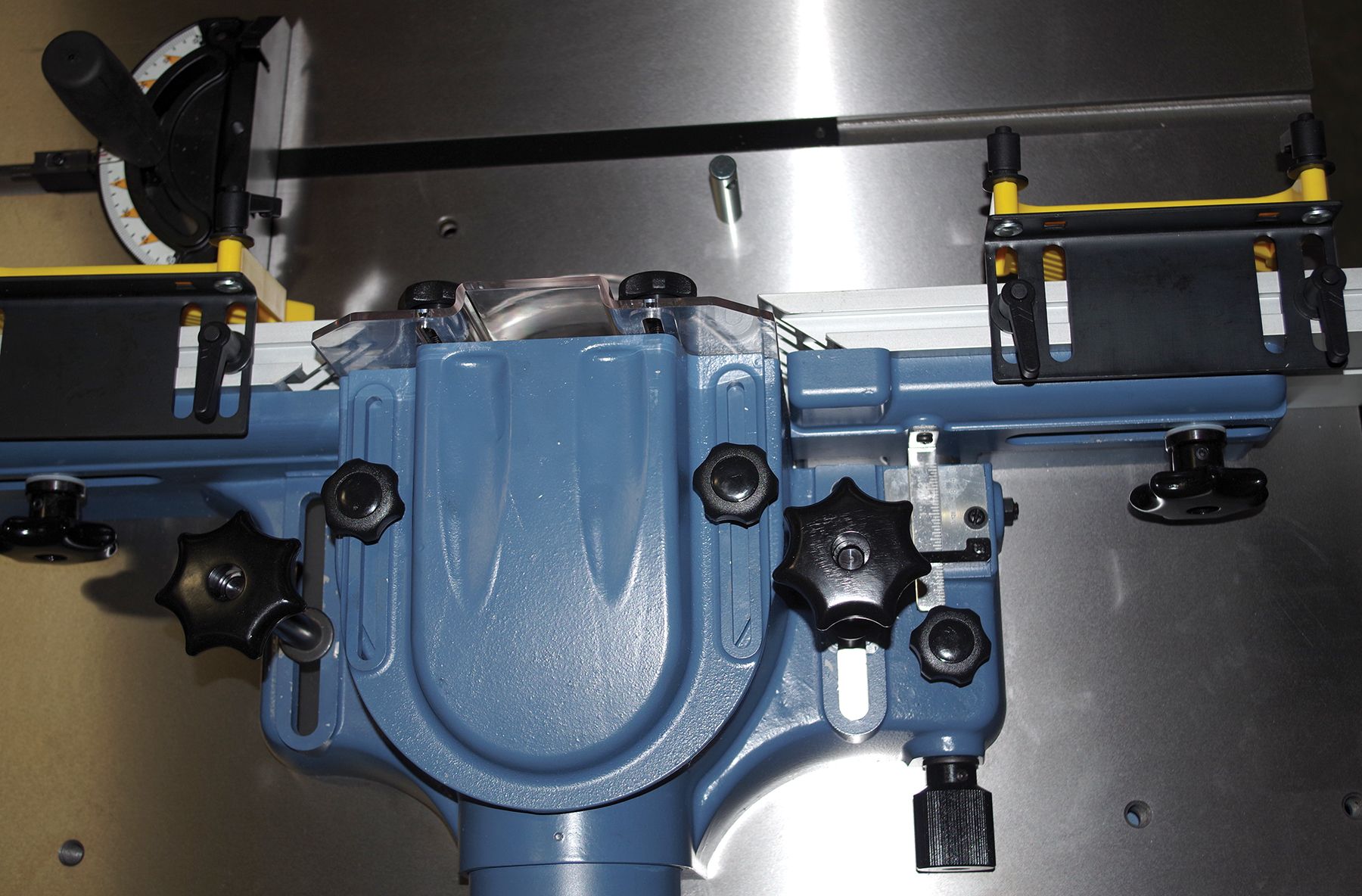

    •Fence is independent and includes micro adjustments.

    •Adjustable hold downs add to a safer operation.

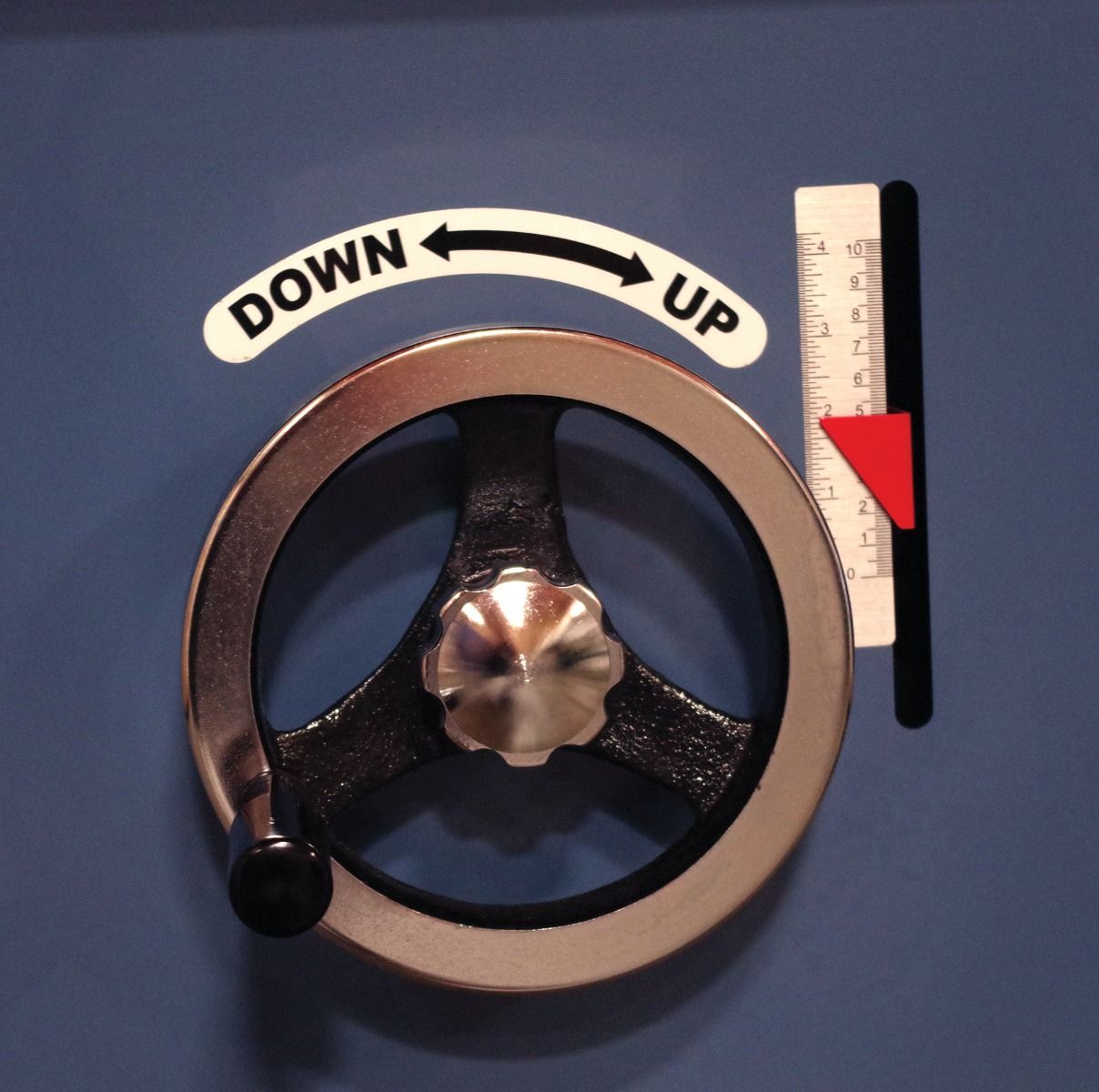

    •Extra large handwheel for easy and quick height adjustment.

    •Miter gauge included.

    •Magnetic controls for added safety.

    •Powerful TEFC motor in 3HP or 5HP to meet your needs. (1Ph Only)

  • Specs

    Model Number |10047

    Stock No. (3HP, 1Ph)|10047.001

    Stock No. (5HP, 1Ph)|10047.002

    Spindle Speeds |4,000, 6,000, 8,000, 10,000 RPM

    Spindle Diameter:|1-1/4”

    Verticle Spindle Travel:|4″

    Spindle Direction:|Reversible

    Under Nut Capacity:|4” with 1-1/4” Spindle

    Table Opening: |6-1/4″

    Large Insert Opening:|4-5/16”

    Small Insert Opening:|2-1/2”

    Table Height|34-3/8”

    Table Size|32” x 26”

    T-Slot:|3/4” x 3/8”

    Fence Size (2):|4-13/16” x 16”

    Dust Port Diameter|4″

    Minimum CFM: |800

    Table Dimensions|40” x 27”

    Motor 1Ph|3HP, 220V 1Ph only (8 Amp) or 5HP, 220V only (18 Amp) 1Ph Only

    Net Weight|473 lbs.

    Gross Weight|550 lbs.
