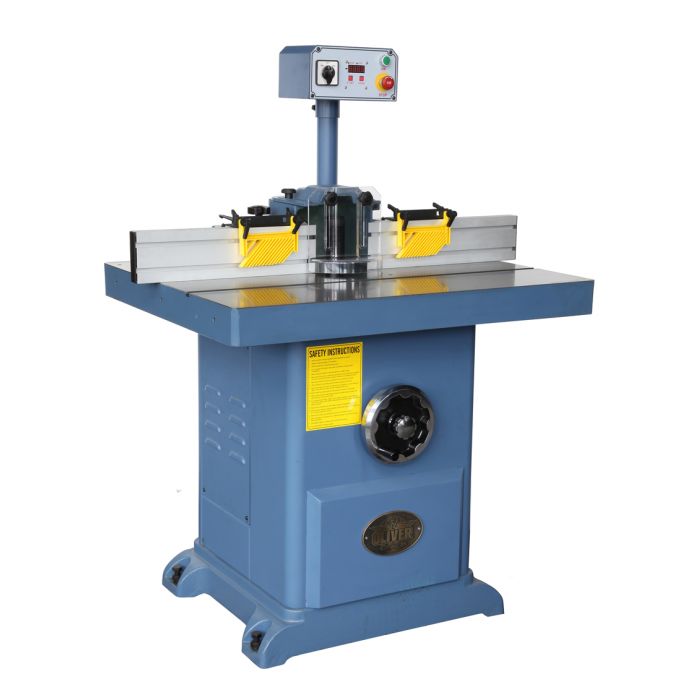

4705 | Oliver | Shapers

  • Power:
    220/440V 3PH 7.5HP 16.8/8.4AMPS
  • Description

    •Massive cast iron precision ground table provides a solid work surface.                                                                                                                                                                •Table features pre-drilled and threaded holes for power feeder.

    •Cast iron base provides a steady platform.

    •Table features pre-drilled and threaded holes for optional power feeder.

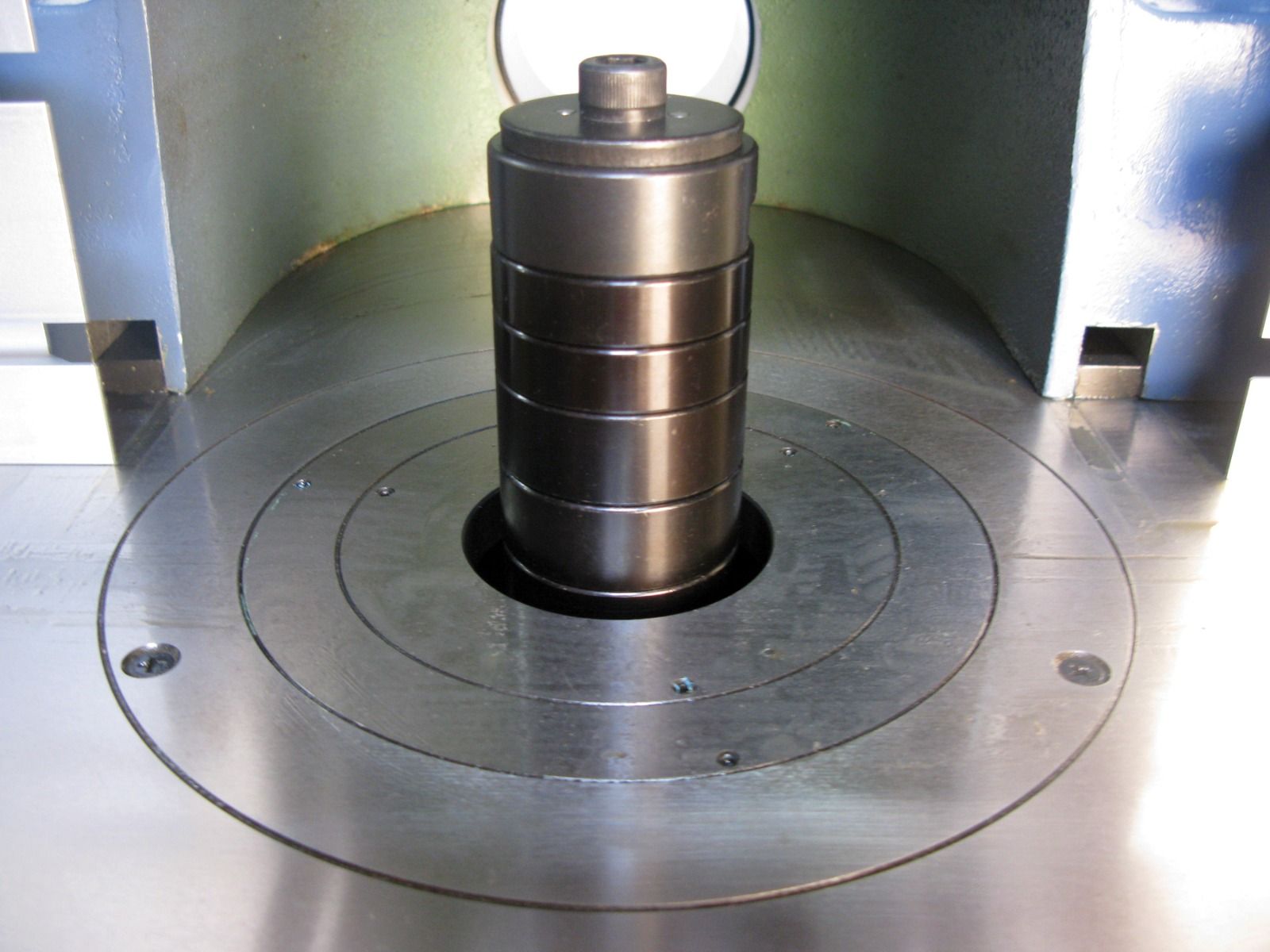

    •3/4” and 1-1/4” interchangeable spindles are included for added versatility.

    •Three spindle speeds allow more choices to produce a better finish.

    •Reversing spindle gives more options for each set-up.

    •Innovative dovetail design accurately raises and lowers the spindle.

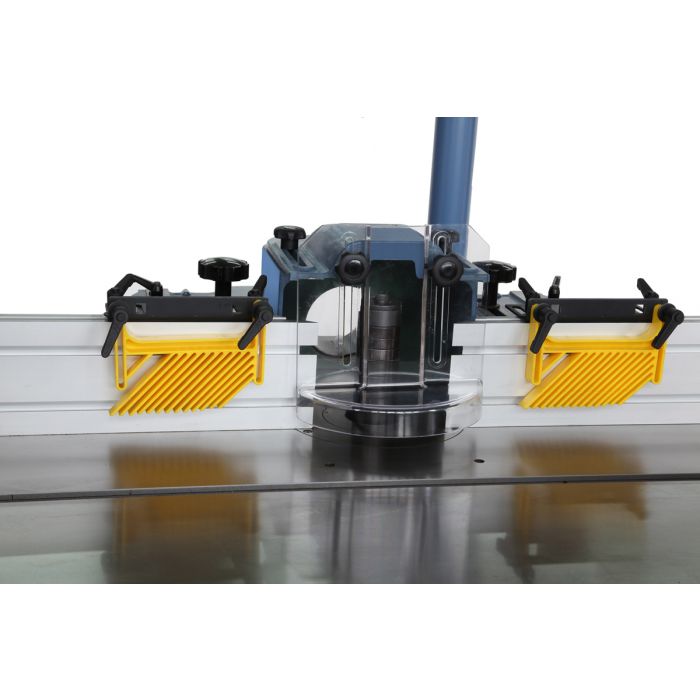

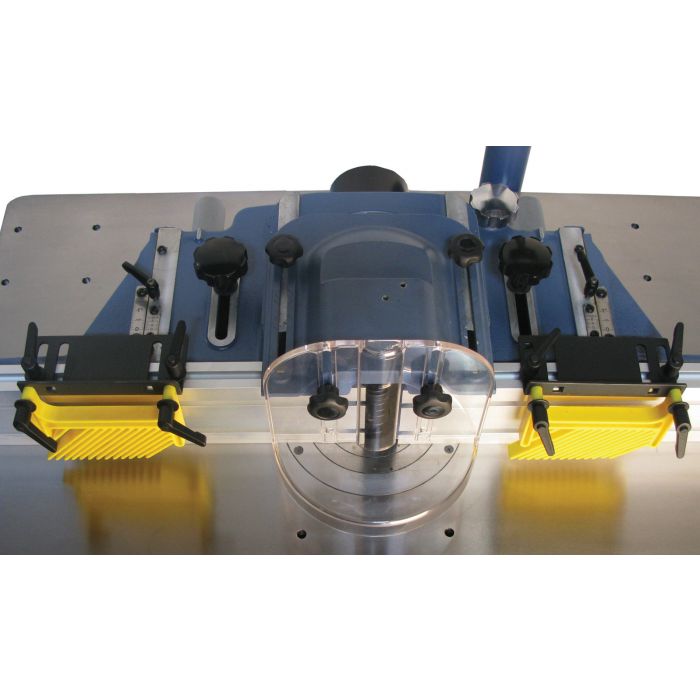

    •Fence is independent and features micro adjustments for quick set-up.

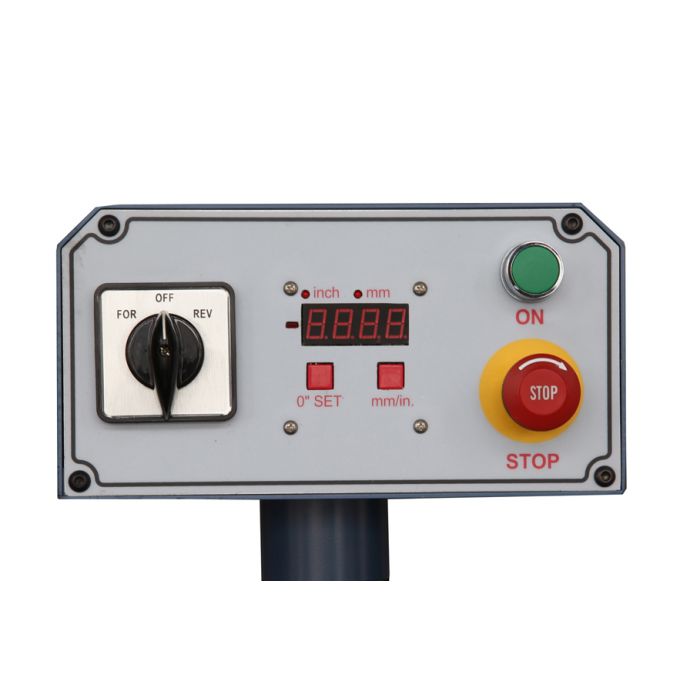

    •Top mounted control panel includes a digital readout for spindle height.

    •Large hand wheel for quick spindle height adjustment.

    •Miter gauge included.

    •Magnetic controls with emergency off switch for safer operation.

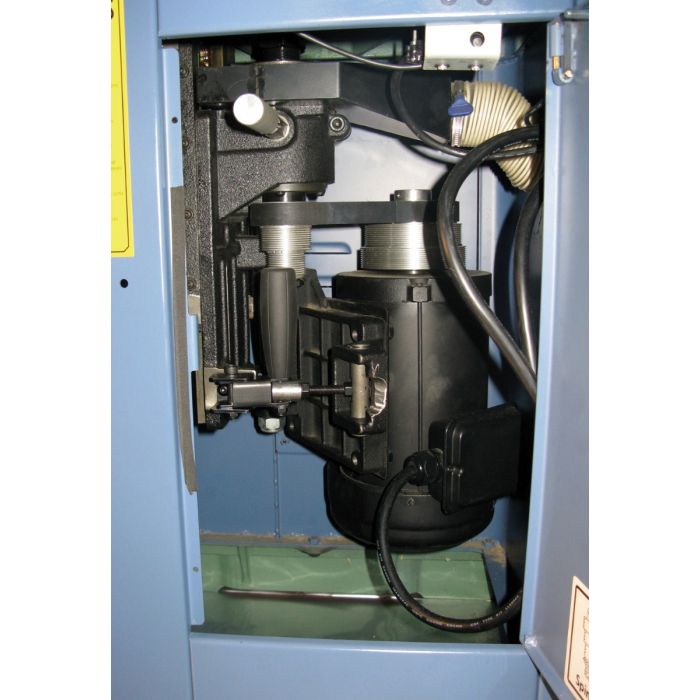

    •Powerful TEFC motor available in single or three-phase

  • Specs

    Stock No. (5HP, 1Ph)|4705.001

    Stock No. (7.5HP, 3Ph)|4705.002

    Spindle Speeds |5,000, 7,000, 10,000 RPM

    Maximum Tool Diameter|7” Below Table, 8” Above Table

    Spindle Diameter|1-1/4” and 3/4” Interchangeable

    Verticle Spindle Travel|4″

    Spindle Direction|Reversible

    Table Height|36-1/2”

    T-Slot|3/4” x 3/8”

    Dust Port Diameter|4”

    Minimum CFM|800

    Footprint|28-1/2”L x 24-3/4”W

    Table Dimensions|39”L x 31-1/2”W

    Motor 1Ph|5HP, 220V only (18 Amp)

    Motor 3Ph|7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp)

    Net Weight|660 lbs.

    Gross Weight|800 lbs.

Videos of Shaper

Oliver 4705 Shaper
