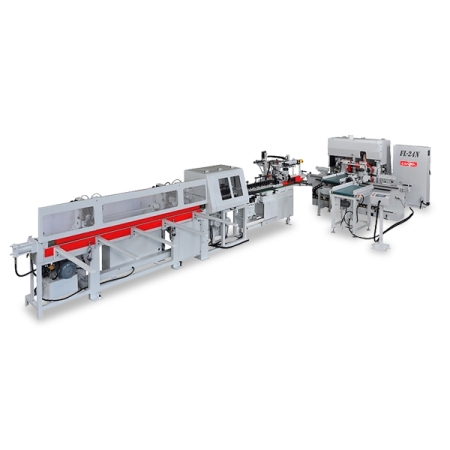

FL24 | Cantek | Finger Jointers
-
Description
Stop losing untapped revenue by turning your wood waste into valuable material. The Cantek FL24 Semi-Automatic Finger Jointer represents a state-of-the-art finger jointing production line, meticulously crafted to transform extra short wood waste into valuable materials, all the while upholding an exceptional balance between performance and cost-effectiveness. Its compact design with multiple automatic features and options makes it an ideal solution for a small sized finger jointing operation. By utilizing a solitary shaper setup, this system delivers extraordinary value in performance and affordability, positioning it as an enduring revolutionary force within the woodworking sector.
Key Advantages
Applicable for machining extra short wood waste of 4” (100mm)
Only two operators required for max production
Hopper loader mounted for workpieces to automatically feed into the assembly press comes standard with the FL-24
As standard we use PVAc glue, but we have optional gluing systems for PUR, MUF, EPI, etc. available upon request
Synchronized jointing and length cutting is performed in a 2-step process within the F-A05 or A07 single stage automatic infeed finger assembler -
Specs
Includes the following:

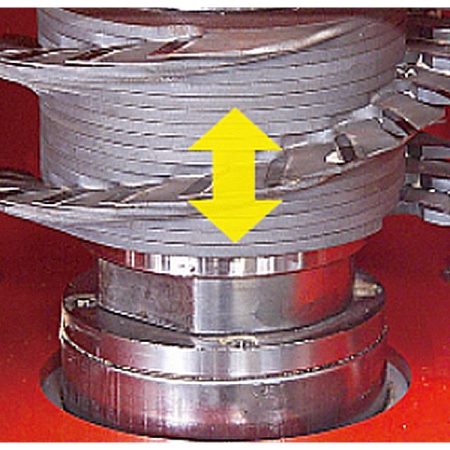

F-C03W01 Finger Shaper (Injection Glue System)
DESCRIPTION
Max. available width working table
650 mm (25.6”)
Range of workpiece length
100~1000 mm (4.7~27.5”)
Range of workpiece width
20~60 mm (3.9~39.4”)
Range of workpiece thickness
30~160 mm (1.2~6.3”)
Trimming saw speed
2800/3400 RPM
Finger cutter speed
6000 RPM
Finger cutter diameter (in/out)
ø70 / ø160 mm (ø2.8 / ø6.3)
Dust out diameter
6 x 2”
Machine dimensions (L x W x H)
4425 x 1815 x 1855 mm (175 x 72 x 73”)
POWER REQUIRED
Table-drive motor (Infeed & Outfeed)
1/2 HP x2
For conveyor motor
1/2 HP x2
Scoring saw motor (Top & Bottom)
2 HP
Trimming saw motor
5 HP
Shaper cutter motor
15 HP
* 1: Injection type glue applicator – using PVAc glue only
* 2: Finger cutters – 10 pieces
* 3: Comes with saw blades
F-D06-1.4 Roller Table
DESCRIPTION
Working size length
150~1000 mm (5.9~39.4”)
Working size width
650 mm (25.6”)
Machine dimensions (L x W x H)
1510 x 940 x 950 mm (60 x 37 x 38”)
F-A05/A07 Single Stage Automatic Infeed Finger Assembler
F-A05-4.5 or 6
F-A07-4.5
Max. working size length
4500 mm (177.2”) or 6000 mm (236.2”)
4500 mm (177.2”)
Working size width
30~160 mm (1.2~6.3”)
30~160 mm (1.2~6.3”)
Working size thickness
20~60 mm (078~2.4”)
20~60 mm (078~2.4”)
Max. assembly press
0~100 KG/CM²
0~100 KG/CM²
Dust outlet diameter
4”
4”
Machine dimensions (L x W x H)
7065 x 2045 x 1430 mm
(279 x 81 x 57”)
7345 x 1835 x 1435 mm
(290 x 73 x 73”)
MOTOR HORSEPOWER
Material feeding motor
2 HP
1 HP
Material feeding motor
3 HP
2 HP
Sizing saw motor
5 HP
5 HP
Hydraulic system motor
5 HP
5 HP
* 1: Comes with saw blades
* 2: Every output – one fixed length at a time
