SPM301HD | Safety Speed | Pocket Hole Machines

  • Description

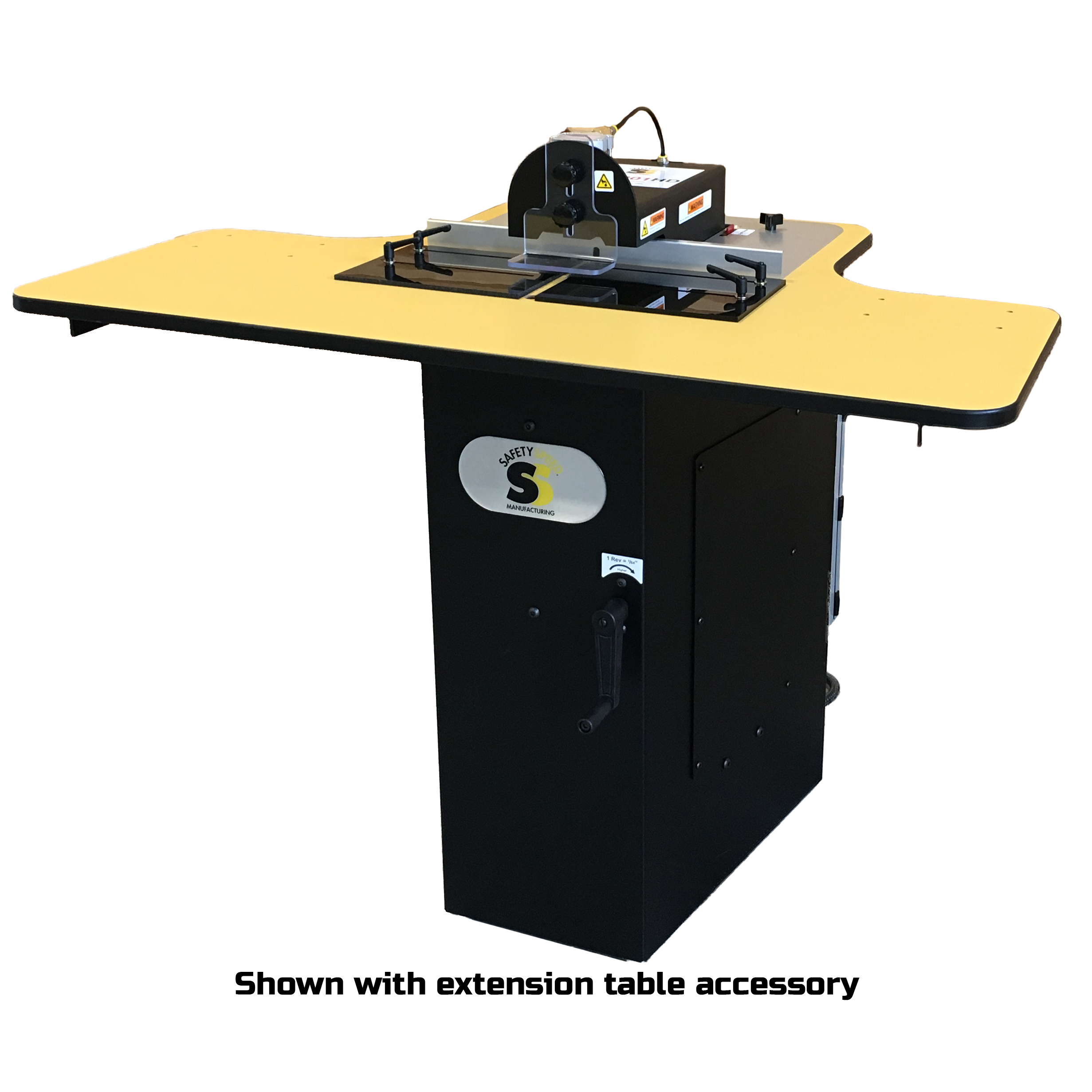

    Pocket-hole joinery for high production woodworkers made easy with our SPM301HD Screw Pocket Machine. This machine allows for simultaneously drilling a pilot hole and machining a screw pocket in under a second.

    Key enhancements on the SPM301HD from the SPM301 Screw Pocket Machine are:

    •A spindle motor just like the ones in a CNC machine, running continuously with minimal maintenance

    •An air drill replacing a router motor

    A two-in-one motion simultaneously drills a six degree pilot hole and machines a screw pocket in under a second on most wood species. The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor, allowing for continuous pocketing production. The SPM301HD features  a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming.  Unlike others of its kind, the SPM301HD features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.

  • Specs

    Weight|294 lbs

    Dimensions|32 × 22 × 44 in

    Crated Dimensions|36″ × 28″ × 49″

    Vacuum Diameter Required|3″ Hose Connection

    Vacuum CFM Required|220 CFM

    Air Requirement|6.2 CFM at 90 PSI

    * Rating based on 25% load factor, 25% duty cycle

    Spindle Motor|5 amp/18,000 RPM, 3/8″ (ER20) Collet

    Screw Pocket Angle|Six Degrees

    Spindle Motor Amps|5 amps

    Spindle Motor Collet|3/8” Collet

    Spindle Motor Max RPM|18,000

    Air Drill|.7HP

    Air Drill Collet|1/4″ Collet

    Air Drill Max RPM|25,000
