1250/7 | OMGA | Radial Arm Saws

  • Power:
    7HP 230/460V 3PH
  • Description

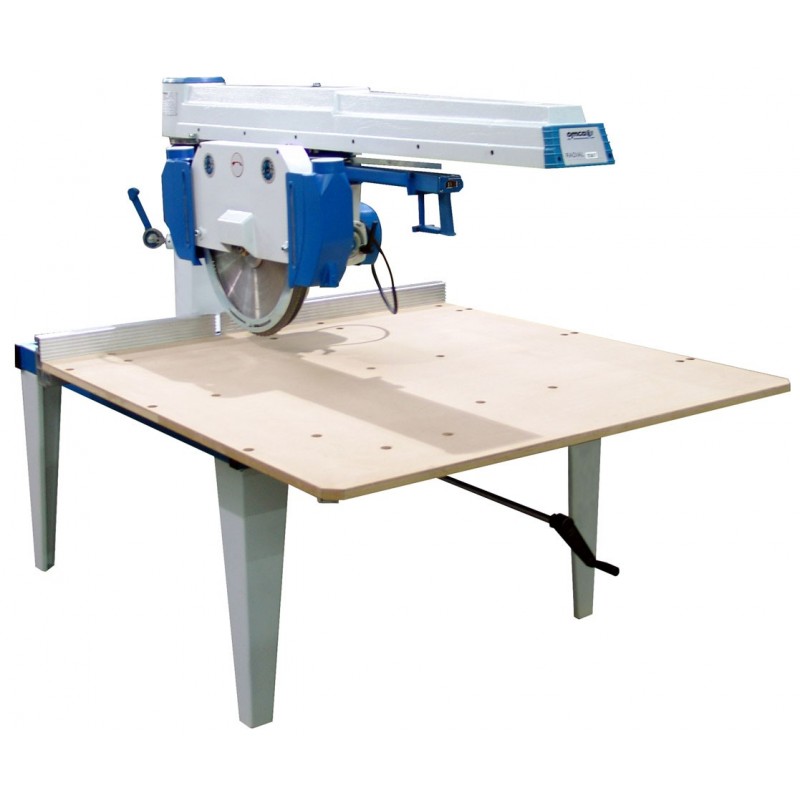

    20″ Radial Arm Saw 7HP Motor 49 7/32″ Cross Cut Capacity 59″ Rip Capacity. Cast Iron Arm. These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. There is a wide range of accessories available to adapt the machine to each and every requirement.

  • Specs

    Max. Depth of cut 45 Deg.|4 7/8″
    Motor power|7hp
    Saw bore|1″
    Saw Diameter|20″
    Arbor speed RPM|3400
    Bevel positive stops|0-45
    Cross cut capacity|49 7/32″
    Table Size|68″x44″
    Max. dado capacity|1 3/4″
    Max. Depth of cut -90|6 7/8″
    Miter positive stops|45-0-45
    Overall dimensions|80″x55″
    Ripping capacity|59″
    Shipping Weight Lbs.|1078
    Crated Dimensions|79″x19″x55″
