OPTIMA120 | OMGA | Cutoff Saws

  • Power:
    6HP 230/460V 3PH
  • Description

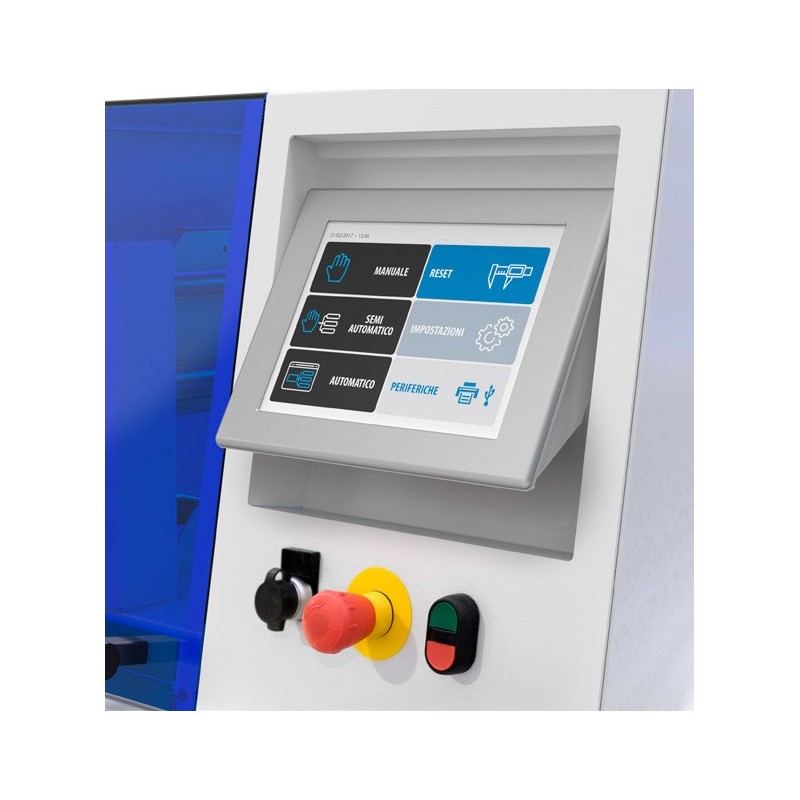

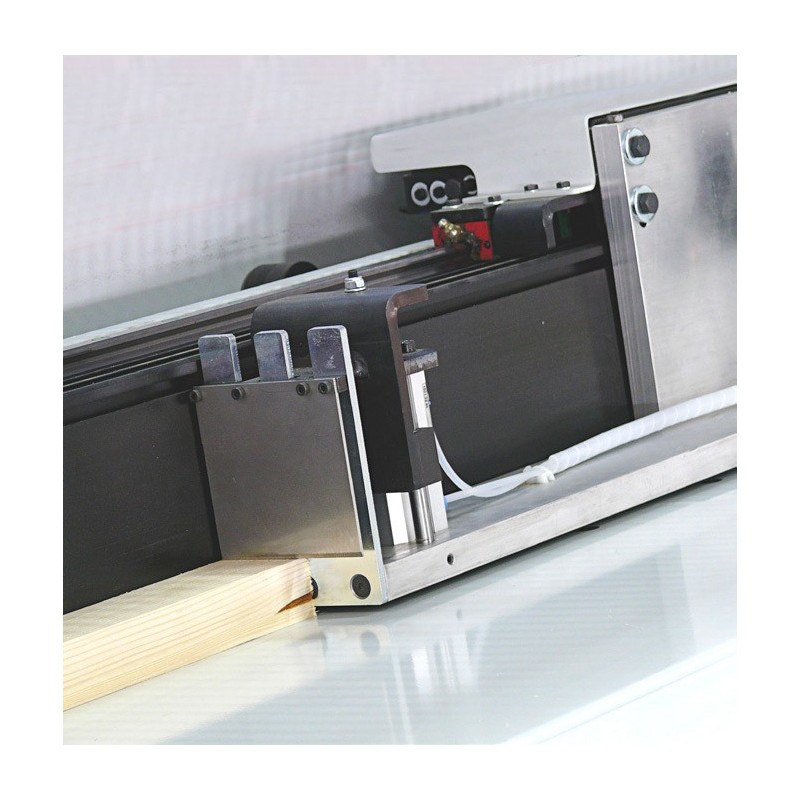

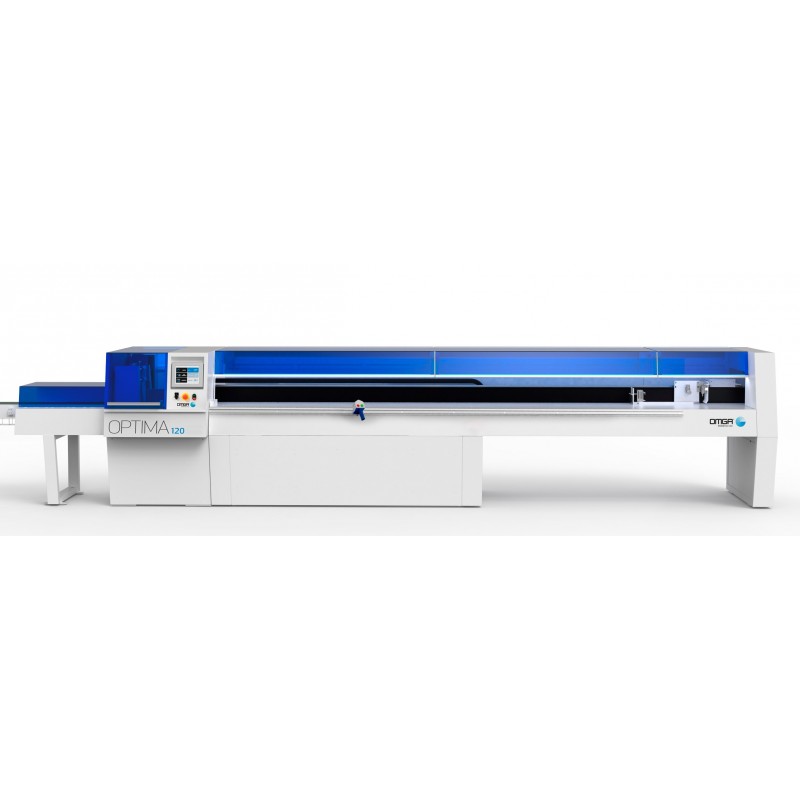

    The OPTIMA 120 is a Push-Feed Optimizing and Defecting Cut-Off Saw, of extreme versatility. It is fitted with the last generation CNC, with adjustable 10.4″ Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator. The pusher system, rides on precision linear rails and bearings and, along with the pneumatic tail clamp and linear encoder, ensures very accurate positioning of the work piece (+/- 0.15 mm). The cutting area is fitted with a system of intelligent vertical and horizontal clamps, which automatically adapt to the dimension of the stock being processed, making the cutting cycle faster and ensuring the squareness of the cut pieces. The network connection is guaranteed by an available RJ45 Ethernet port and/or USB connection and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine. Capable of optimization coupled with defecting capability. The board is read through a laser guided system, which allows to select up to two separate grades and an absolute accuracy, even on finished parts, without leaving any trace.

  • Specs

    Max. piece thickness|4 5/16″

    Max. piece width|12″

    Max. infeed length|13’9″ or 20’4″

    Max. feed Speed|400 FPM

    Saw blade motor power|6 HP

    Saw blade diameter18″ (20″ Opt)

    Feed motor power|2.7 Nm (1.50 kW)

    Cutting Speed|0.4 – 1 sec.

    Average number of cuts|25 – 35 min.
  • Download

Videos of Push-Feed Optimizing and Defecting Cut-Off Saw
