6000 SERIES | Larick | Sanders

  • Power:
    2, 3, 5, 7.5 or 10HP 230/460V 3PH
  • Description

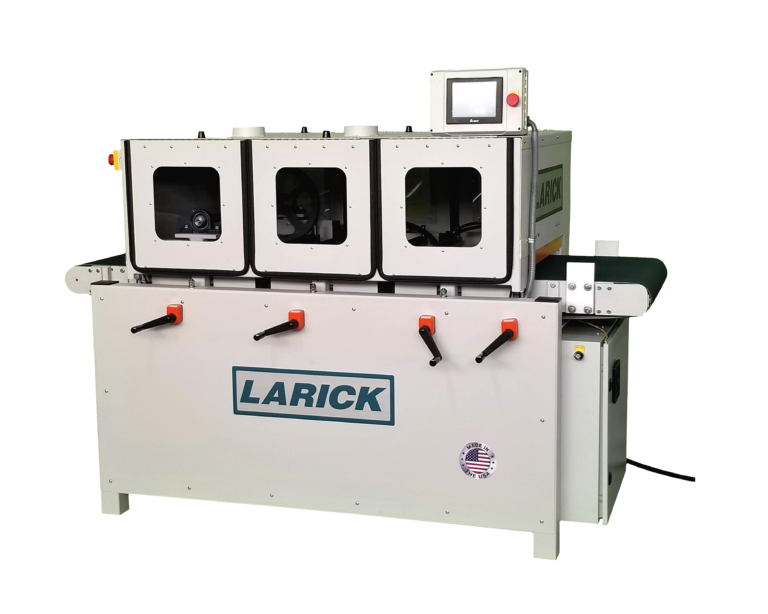

    The  6000 Series machine will brush sand and/or wire brush parts with standard widths from 25 to 73 inches. It has 1 to 6 spindles which will accommodate sanding or wire brushes up to 14 inch diameter. It has a fixed height conveyor and accommodates parts up to 9 inches thick. The spindles are belt driven with full power down to 450 RPM. Speed and direction are controlled from the touchscreen. Each motor’s load is also displayed.

    Inverters control the feed rate, the spindles’ speed, and rotational direction. Load meters aid setup and help maintain consistent results. Larger diameter sanding and wire brushes deliver best results.

  • Specs

    Spindle Motors: 2, 3, 5, 7.5 or 10HP

    Voltage: 208-240V, 400-480V, or 575V 3ph

    Variable Speed: AC Inverter, 200-900rpm

    Spindles: 1.25” Dia.

    Conveyor: 25, 37, 49 inch wide, 4-47 ft/min

    Opening Height: Up to 9”
  • Download
