360 SERIES | Larick | Sanders

  • Power:
  • Description

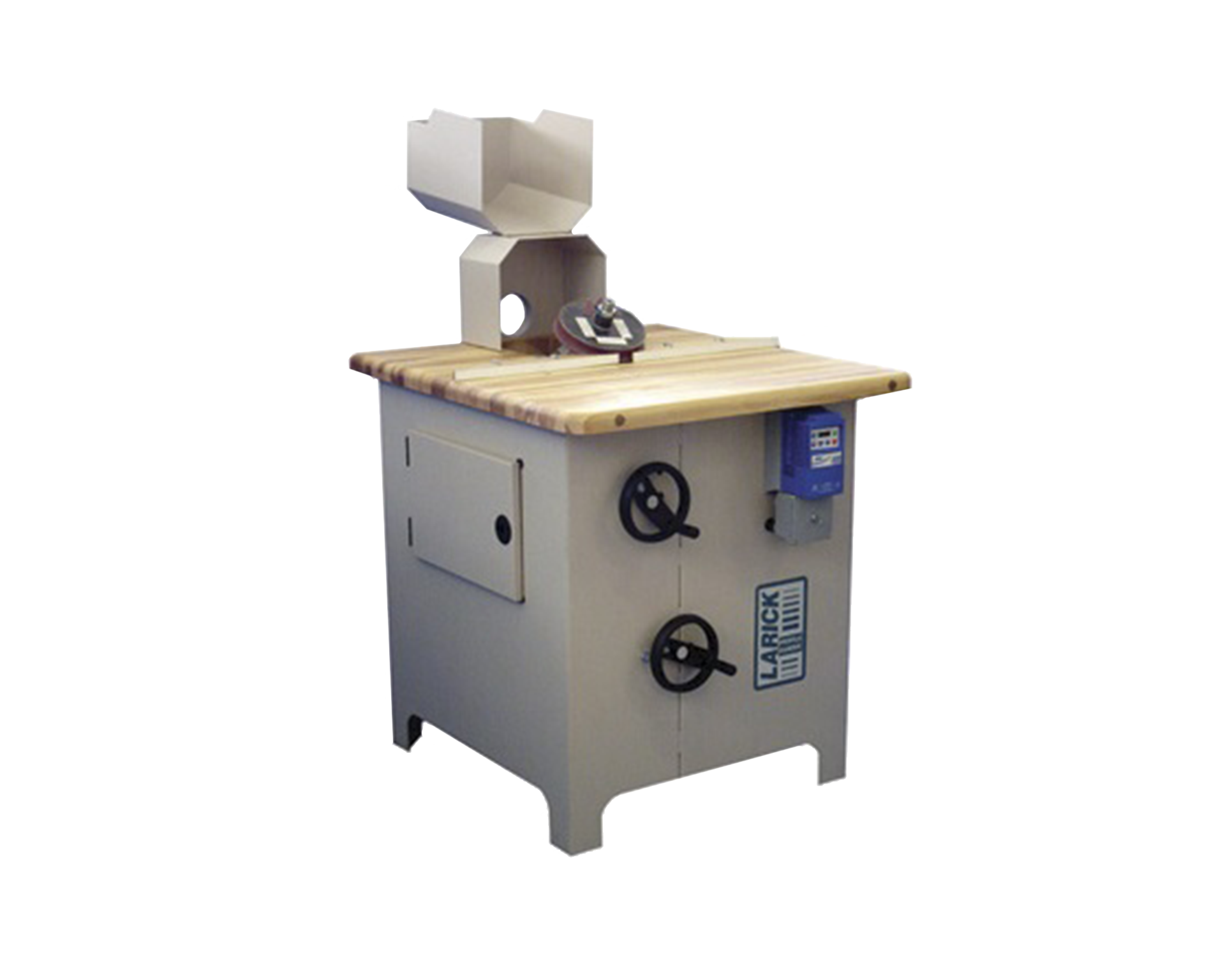

    In order to optimize profile sanding, most profiles should have the wheel tilted to minimize the depth the profile goes into the wheel, and to keep the abrasive as flat as possible on the wheel. Our family of 360s can tilt either forward or backward to achieve this. It also has a simple, stationary, rigid, but removable fence, and features both vertical and horizontal spindle adjustment from the front of the machine. Horizontal spindle adjustment allows the operator to quickly make fine adjustments of sanding pressure without moving the fence. Tilt changes are easily made utilizing a crank and easy to read scale. They use an AC inverter for variable speed on the direct drive motor. The inverter provides precise speed control with it’s display showing spindle RPM. The only difference between models is input voltage.

  • Specs

    Motor: 1.5 HP Direct Drive

    Voltage: 361: 115 or 208-240/1/50-60 362: 208-240/1 or 3/50-60 364: 460/3/50-60

    Variable Speed: AC Inverter 400-1800 rpm 1” Dia. by 4” Tall

    Arbor: YES

    Vertical Adjustment: YES

    Horizontal Adjustment: 60° Forward; 40° Back Standard

    Wheel Tilt: 60° Forward; 40° Back Standard

    Fence: Standard

    Table Height: 36 inches

    Table Size: 36” by 33”

    Floor Space: 33” by 33”

    Weight: 375 lbs.
