JF330 | Cantek | Moulders

  • Power:
    3HP 230/460V 3PH
  • Description

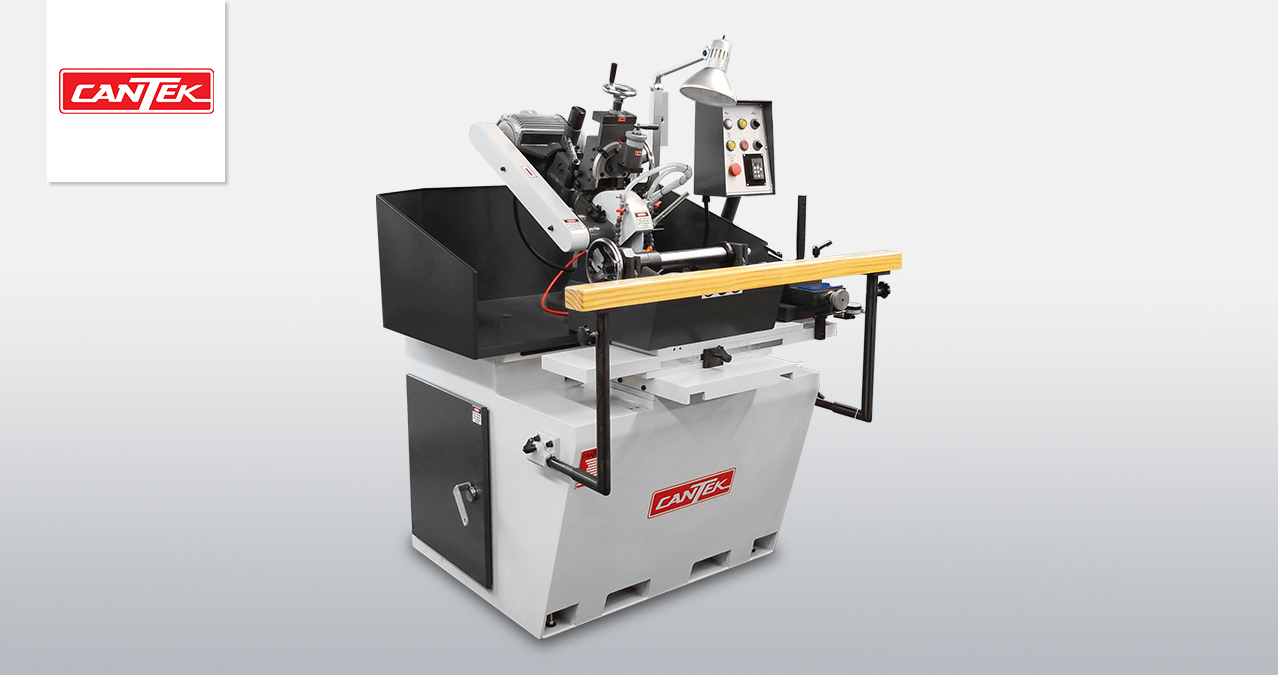

    The Cantek JF330A Profile Grinder was designed to ensure the operator can produce an optimum knife finish, while producing precisely accurate profiles.  The powerful 3HP grinding motor makes knife grinding a breeze.  The VFD allows the operator to dial in the optimum grinding speed no matter what type of knife steel they are grinding.  Using an axial constant setup, tools can be transferred to the moulder quickly for precise and fast changeovers.  The cutterhead is mounted to a sliding worktable which runs on high precision Schneeberger linear bearings.  All these special features make the JF330 profile grinder the ideal solution for the small to large size moulding shop.

  • Specs

    Maximum length of straight grind|12″

    Maximum length of profile grind|12″

    Maximum diameter of swing|12″

    Max. depth of profile with 140mm hub|1.6″

    Max. depth of profile with 110 mm hub|2″

    Grinding motor|3 HP

    Grinding wheel size|225 mm dia. x 60 mm bore

    Machine dimensions|41 x 44 x 59″

    Machine weight|1850 lbs
