Description

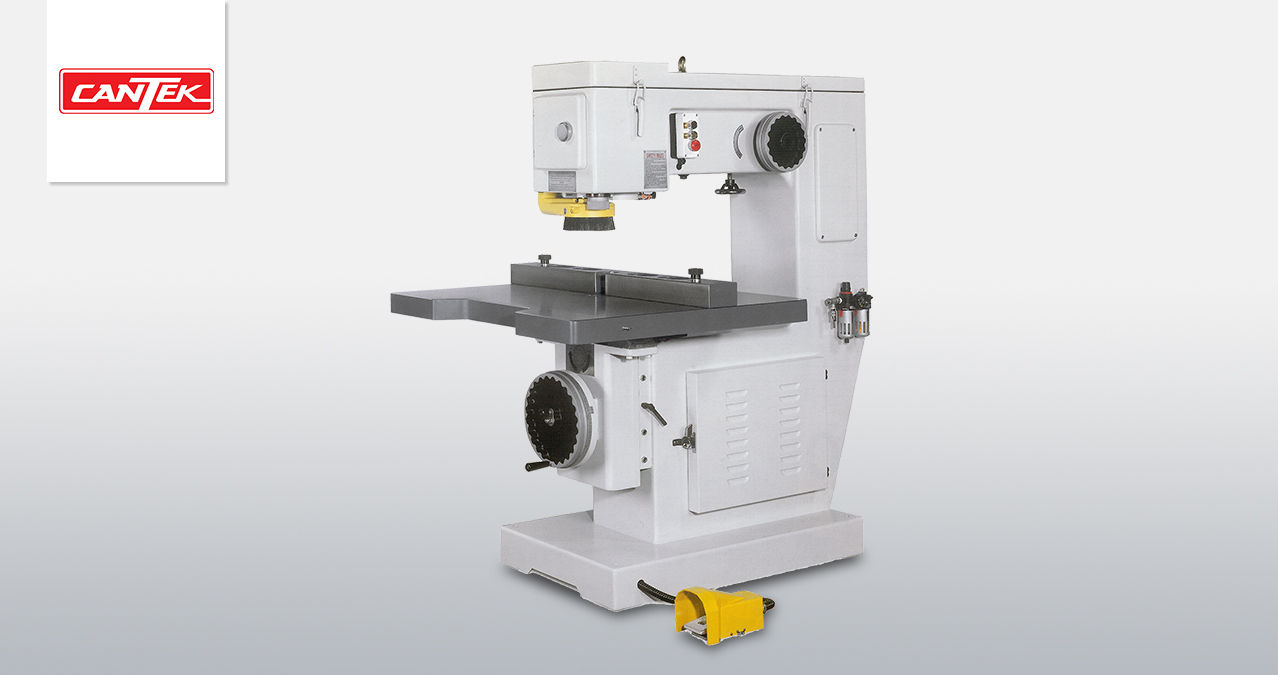

The Cantek SR750 Pneumatic Overarm Pin Router is the ideal solution for high volume routing and profiling of repetitive shapes. With its powerful 7.5 HP router which turns at an RPM of 10000 or 20000 RPM you can cut through solid wood or panel products with ease. Simply follow your profile with one of the guide pins included (1/4”, 3/8”, ½”) for fast and convenient routing operation. The machine is constructed with a solid welded steel frame and cast-iron tilting table. The large solid table is fitted with a steel fence and the spindle to column clearance is 29.5”. Comes with a convenient foot pedal to actuate the router so you can keep your hands on the template.
-
Specs
Chuck to table top maximum|11″ (280mm)
Throat clearance|29-1/2″ (750mm)
Spindle speeds (2 speeds)|10,000 / 20,000 RPM
Spindle travel|3-3/4″ (95mm)
Depth stops|3 Position turret stops, adjustable
Table travel|7-1/2″ (190mm)
Table surface area|36″ x 40″ (915 x 1016mm)
Table tilt|Front downward to 45°
Micrometric table raise|3/64″(1mm) per revolution of handwheel
Collet sizes|1/4″ 3/8″ 1/2″ 5/8″
Spindle drive motor|7.5HP
Belt size|35 x 2330mm
Net weight|720kgs (1590 lbs)
Gross weight|900kgs (1990 lbs)
Packing dimensions|66″ x 44″ x 72″ (L x W x H)
Machine electrics|460/3/60 (11 amps) or 230/3/60 (22 amps) -
