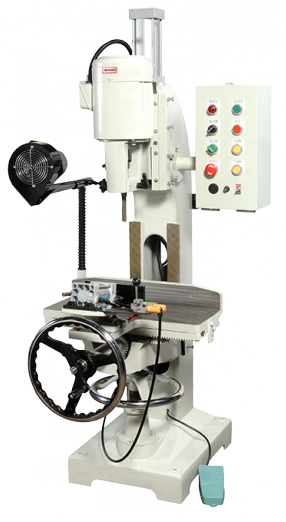

Description
•Power stroke of head permits easy, fast and accurate successive cuts.
•Separate fan blower to keep work clean and free from dust and chips.
•Manual adjustable table height and lateral position
•Heavy duty cast iron construction.
•Convenient centralized control panel
•Foot pedal actuated cycle.
•Pneumatic workpiece clamping by lever -
Specs
Chisel range|1/4″~3/4″
Motor|2HP
Spindle speed|3400 RPM
Table|16-3/4″ x 21-1/4″
Table tilts|30°
Air pressure|8KG
Clamping cylinder|2.5” (63mm)
Head traveling cylinder|3.15” (80mm)
Table cross travel|5”
Table longitudinal travel|18”
Table vertical travel|12”
Max. stock width|12”
Max. mortising depth|4”
Machine weight|572 lbs
Shipping weight|726 lbs
Shipping dimension|35” x 38” x 70”
