SR5U | Safety Speed | Routers

  • Power:
    120V 28TOTAL AMPS
  • Description

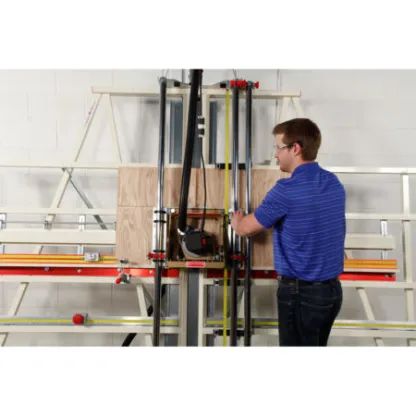

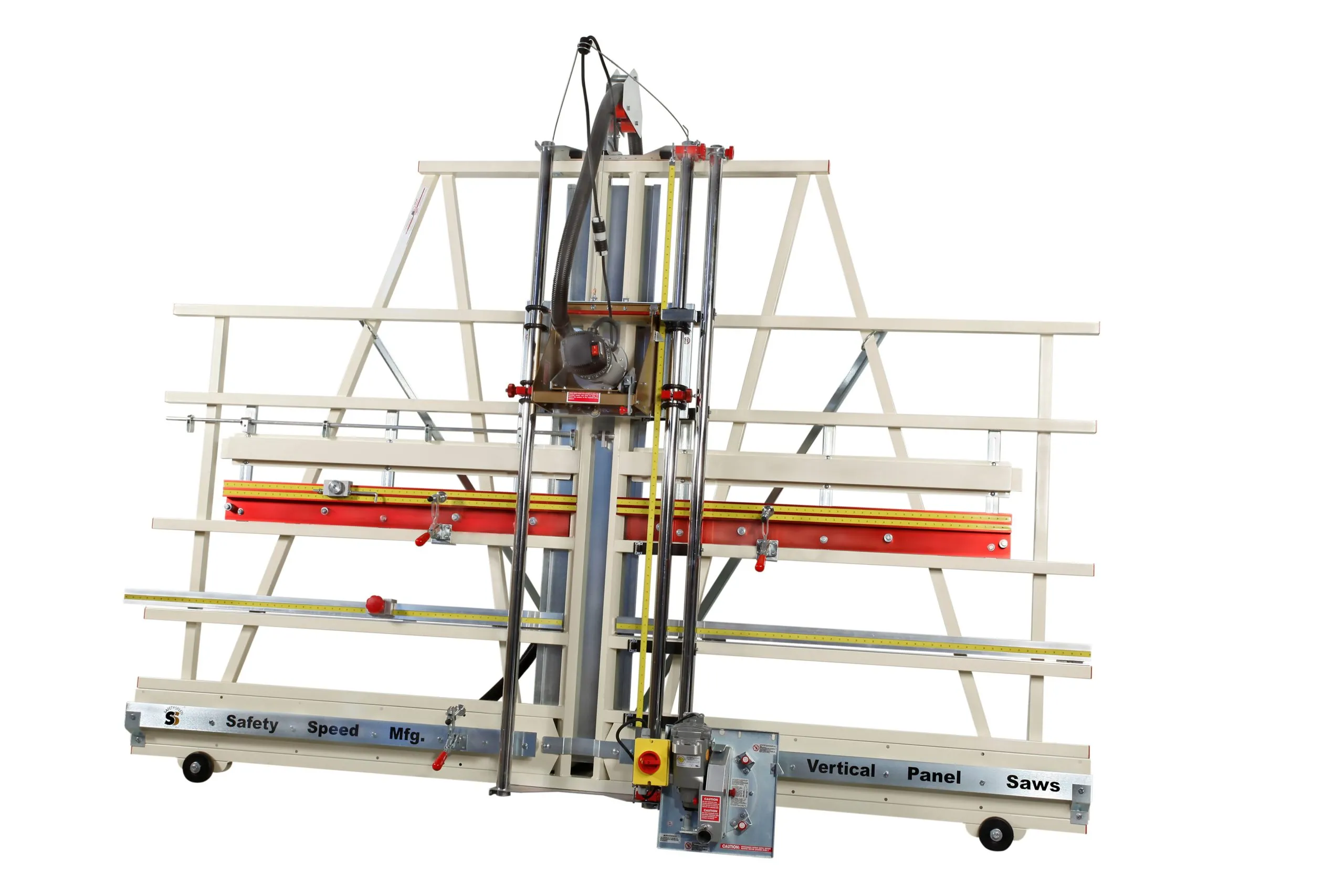

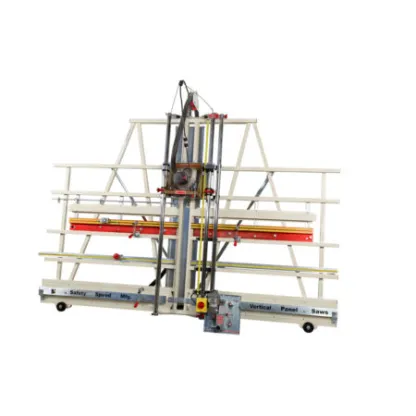

    A big brother to the SR5, the SR5U is equipped with a heavier duty worm drive motor, a 3+ Hp router motor and aluminum material rollers. Photos are shown with a stand, and wheels which are optional accessories. This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.

    Standard Equipment:

    *3 Hp, worm driven saw motor.

    *3+ Hp, heavy-duty router motor.

    *10 ft. welded steel frame.

    *Chrome-plated 1 ¾” guide tubes.

    *8 Nylatron roller bearing system.

    *Adjustable vertical and horizontal rulers.

    *Quick change from vertical to horizontal cutting.

    *Thin material pressure guard 4 material clamps.

    *Integrated dust collection bonnets.

    *Solid aluminum material rollers.

    *Enclosed counterweight system.

    *Adjustable floating router head.

    *MID-WAY FENCE™ flip stop.

    *2 blind dado stops.

  • Specs

    Weight|589 lbs

    Dimensions|124 × 17 × 92 in

    Max. Crosscut|62″/1575mm

    Max. Rip Cut|Unlimited

    Max. Cut Thickness|1 3/4″/45mm

    Cut Accuracy, Straight and Square|1/64″/.4mm

    Saw Blade Diameter|8″/210mm

    Saw Motor Amperage|13 amps

    Saw Motor Horsepower|3 horsepower

    Saw motor type|worm driven motor

    Router Motor Amperage|15 Amps

    Router Motor Horsepower|3 Horsepower

    Frame Length|120″/3050mm

    Voltage|120 Volts

    Router Bit Collet|1/4″ or 1/4″ collet router bits

    Router Motor Type|Variable Speed
