SR5UA | Safety Speed | Routers

  • Description

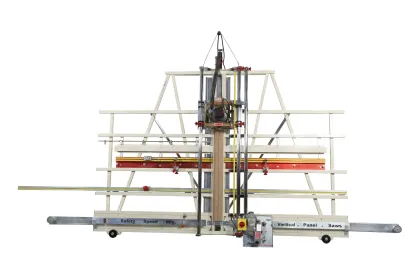

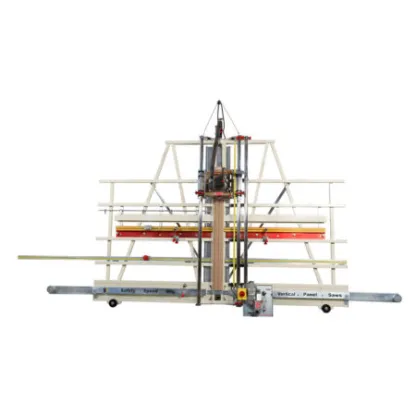

    The SR5UA Saw Router Combination Machine is a fully loaded solution for high production cutting and routing! The following upgrades and accessories are included in the price of this machine. The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.

    Standard Equipment

    *3 Hp worm drive saw motor.

    *3+ Hp heavy-duty router motor.

    *10 ft. Welded steel frame.

    *Chrome plated 1 ¾” guide tubes.

    *8 Nylatron roller bearing systems.

    *Adjustable vertical and horizontal rulers.

    *Quick change from vertical and horizontal cutting.

    *Thin material pressure guard.

    *Solid aluminum material rollers.

    *Counterweight system.

    *Adjustable floating router head.

    *MID-WAY FENCE™ with stop.


    *4 material clamps.

    *2 blind dado stops.


    *Fixed Stand.


    *Left and right quick stop gauges.

    *MID-WAY FENCE™ flip stop.

    *Dust hood and hose kit.

    *Hold down bar.

    *Specialty saw blade and router bit for v-grooving

  • Specs

    Weight|687 lbs

    Dimensions|124 × 17 × 92 in

    Max. Crosscut|62″/1575mm

    Max. Rip Cut|Unlimited

    Max. Cut Thickness|1 3/4″/45mm

    Cut Accuracy, Straight and Square|1/64″/.4mm

    Saw Motor Horsepower|3 Horsepower

    Saw Motor Type|Worm Drive

    Saw Motor Amps|13 amps

    Saw Motor Voltage|120 Volts

    Saw Blade Diameter|8″/210mm

    Router Motor Amps|15 amp

    Frame Length|120″/3050mm

    Router Motor Volt|120 Volt

    Router Motor Horsepower|3 Horsepower

    Router Motor Type|Variable Speed

    Router Bit Collet|1/4″ or 1/2″ collet router bits
