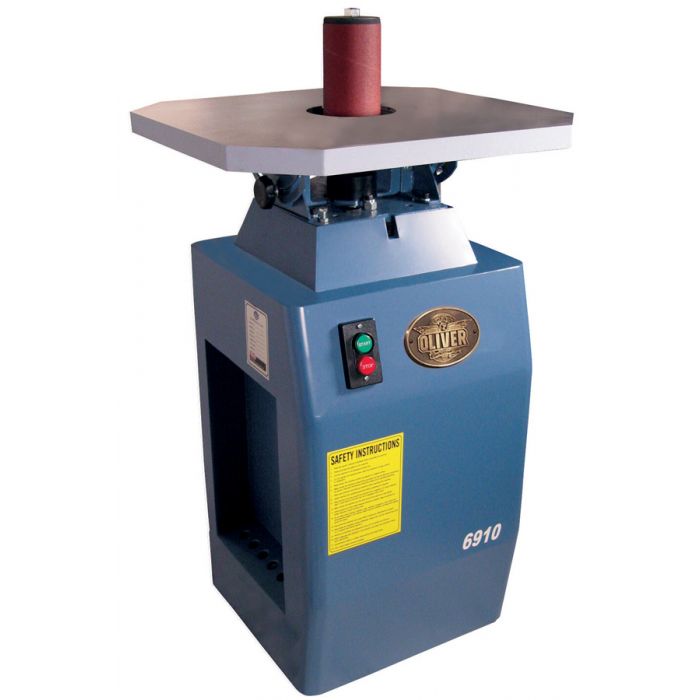

Description
•Precision ground table provide a stable work surface.
•Table tilts 45 degrees for added versatility.
•Unique corner cut table design allows better operator position.
•1-1/2” Spindle oscillation provides greater capacity.
•75-oscillations per minute lowers heat build-up providing a better finish.

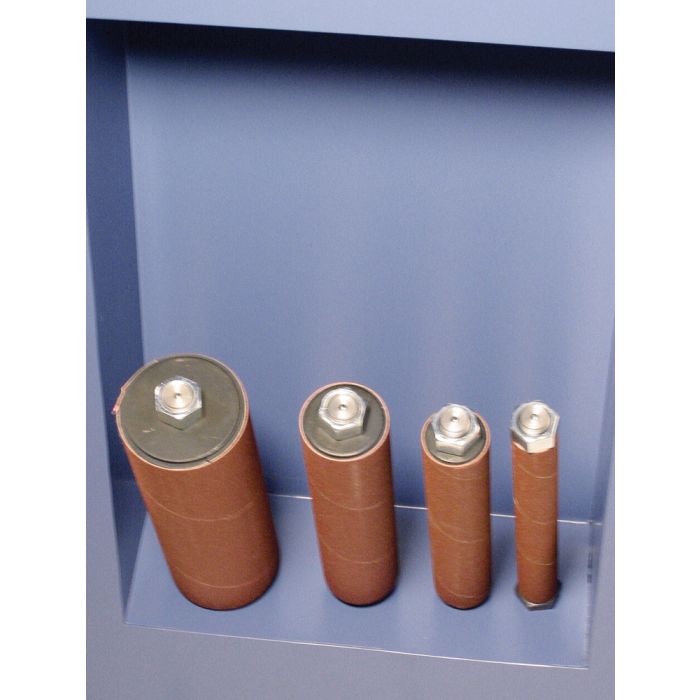

•10-spindle sizes are included with built-in storage for easy access.

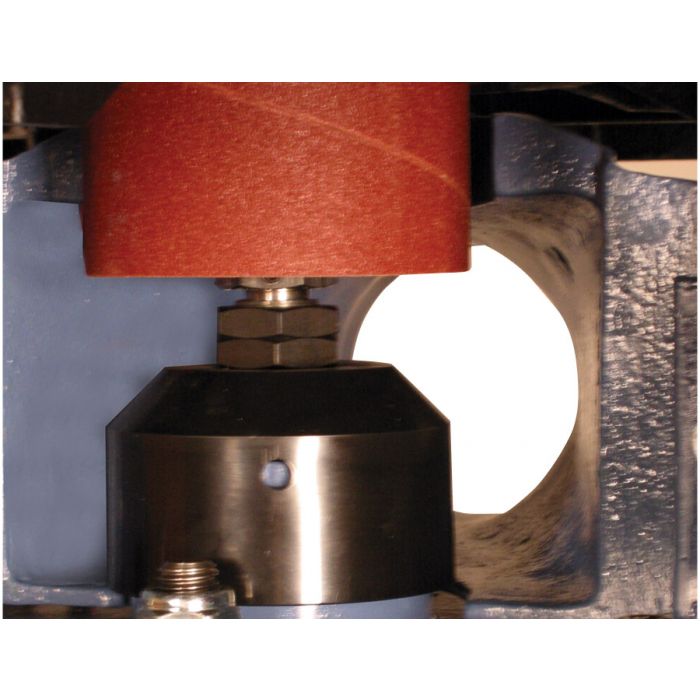

•Spindles are tapered and end-threaded allowing a quick change.
•Three table inserts are included to match the spindle choices.
•Heavy-gauge steel cabinet is uniquely designed for operator convenience.
•Oscillation mechanism runs in an oil bath for long life.
•Built-in 4” dust port allows efficient dust management.

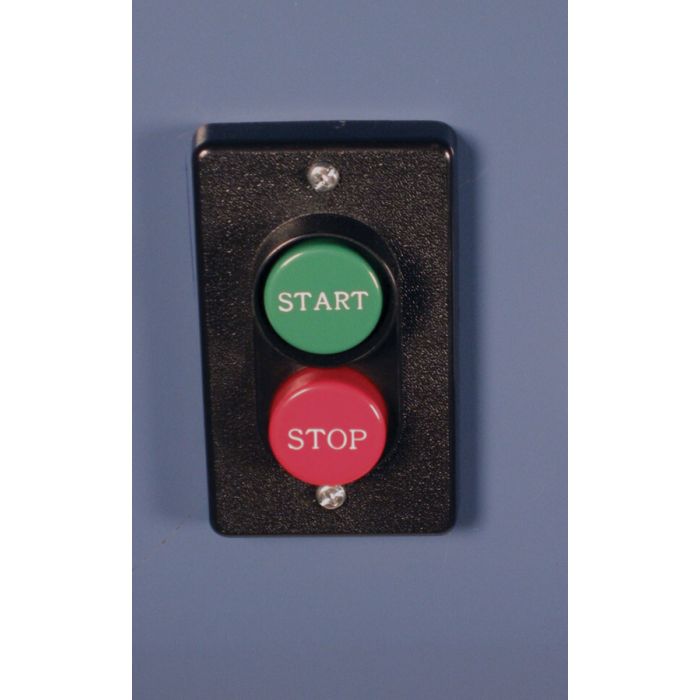

•Industrial push button controls are located for easy use.

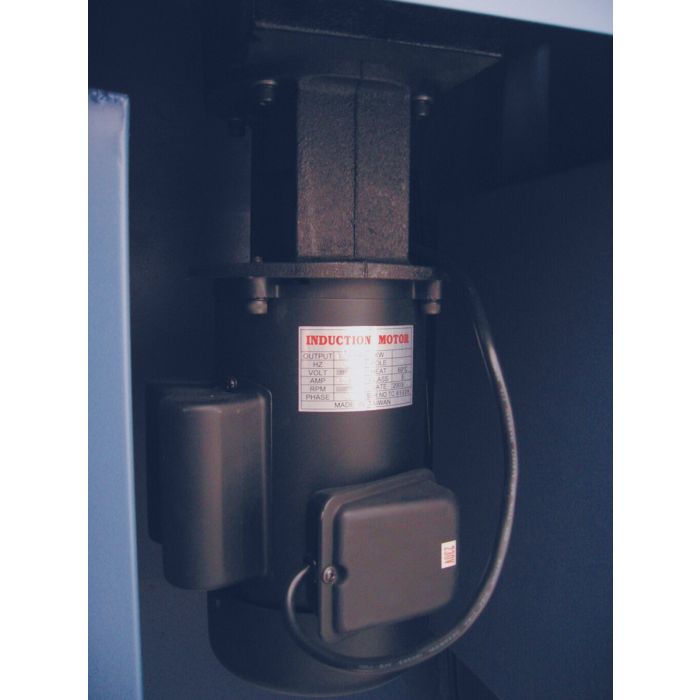

•Powerful TEFC 2HP single phase motor -
Specs
Table Material|Cast Iron
Table Size|25-1/4” x 27-1/4”
Table Tilt|0 to 45°
Table Height|42-1/2” (Floor to Top)
Number of Table Inserts|3
Spindle Speeds |1,720 RPM
Oscillation|1-1/2” Travel
Dust Port Diameter|4″
Oil|90 Weight Gear Oil
Spindle Sizes (dia. x length, in.)|1/4 x 5, 3/8 x 6, 1/2 x 6, 5/8 x 6, 3/4 x 9, 1 x 9, 1-1/2 x 9, 2 x 9, 3 x 9, 4 x 9
Footprint|19-1/2”L x 18-1/2” W
Motor|2HP, 115/230V Prewired 115V Plug (6/8 Amp)
Overall Dimensions|25-1/4 x 27-1/4 x 50
Net Weight|295 lbs.
Gross Weight|320 lbs. -
