Description

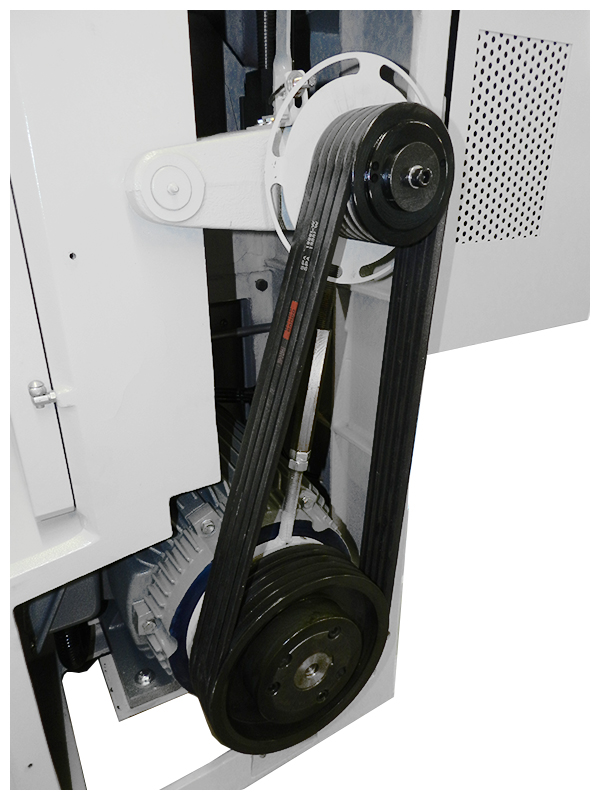

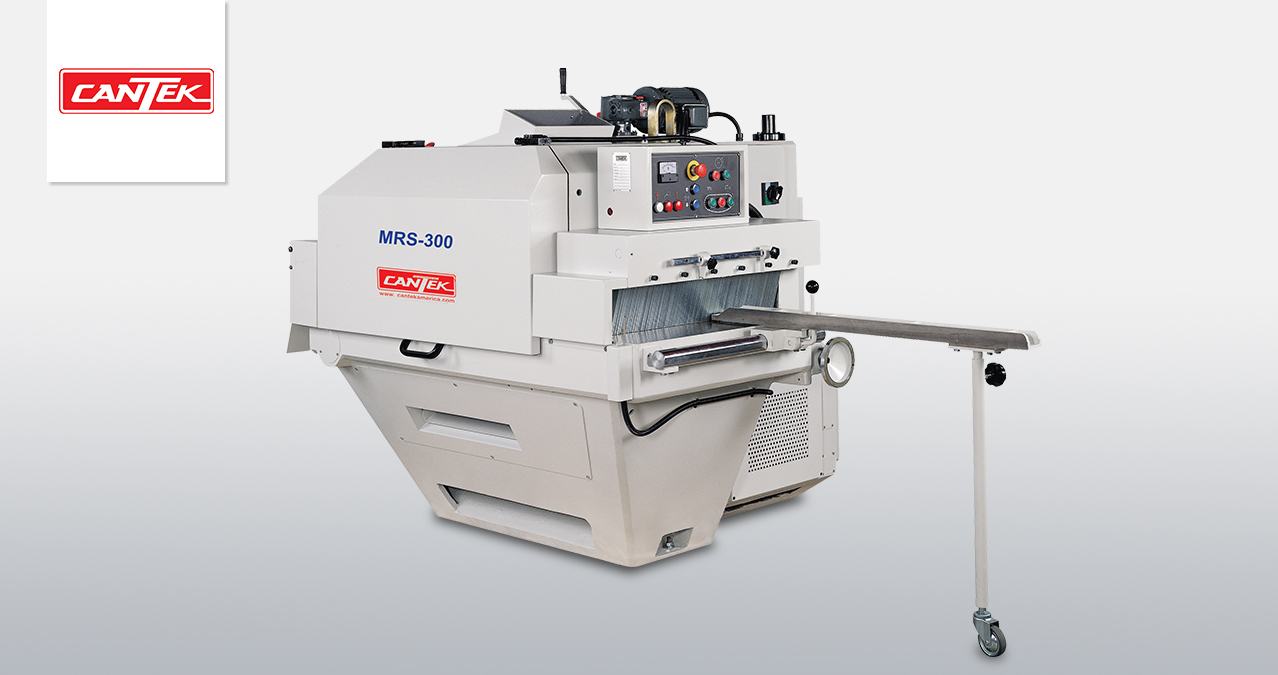

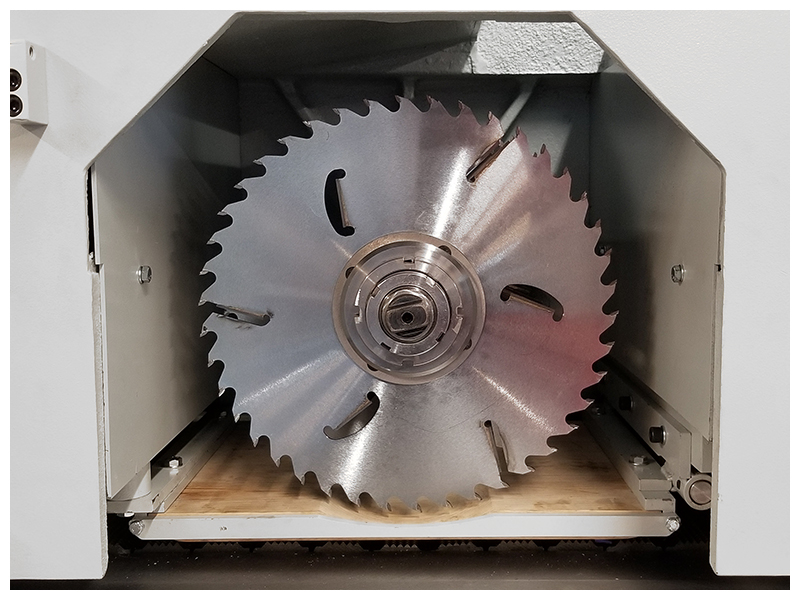

The Cantek MRS300 Multi Blade Gang Ripsaw is a true production multi ripsaw with an industrial cast iron machine body. The precision cast iron chain and track system allows for maximum durability and precision resulting in superior cut quality and accuracy. The removable saw sleeve system allows for fast changeovers between ripping operations leading to increase throughput. The MRS300 is also equipped with a powerful 50HP standard saw motor for maximum cutting depth with multiple rip blades and increase feed speeds. A minimum ripping length of 11.8” can be achieved with the optional short stock attachment.
-
Specs
Maximum Working Thickness:
14” Blade – With short stock attachment|3.74”
14”Blade – W/out short stock attachment|4.33”
15” Blade –W/out short stock attachment|4.72”
Minimum Length – without short stock attachment|23” – with short stock attachment|11.8”
Maximum cutting width|11.8”
Distance from column to center of chain|14.17”
Sawblade diameter|8” to 15”
Saw arbor sleeve diameter (Blade bore)|70 mm w/ keyways
Saw arbor diameter|50 mm
Saw arbor speed|3800 RPM
Saw motor HP|50 HP
Thickness setting motor|½ HP motor

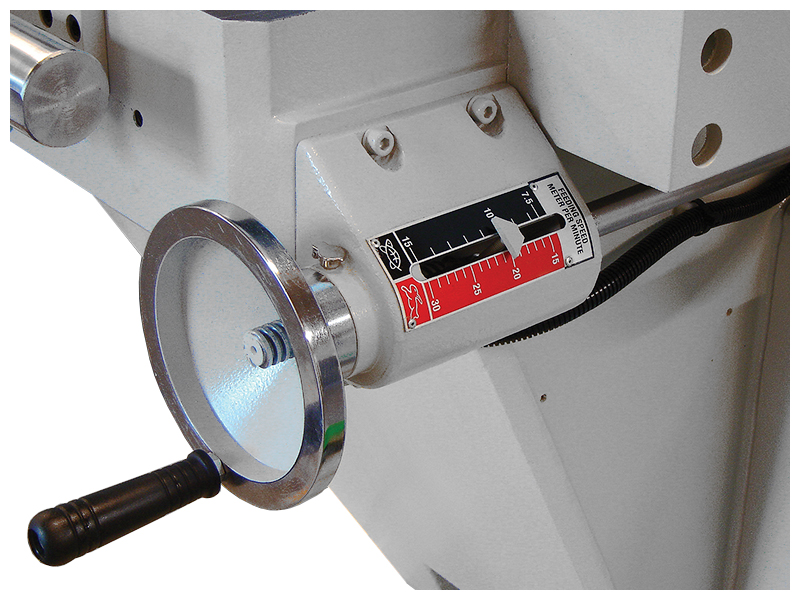

Feed speeds|25 – 100 FPM
Feed motor HP|2 HP
Dust hood diameter|2 @ 6”
Table size|60″ x 30”
Table height from floor|33.5″
Net weight|4510 lbs
Shipping weight|5060 lbs
Machine dimensions|82.68” 59” x 56 ½”
Shipping dimensions|70.87” x 66.93” x 63″
Electrics|460/3/60 = 69.5 Full Load Amps -
