Description

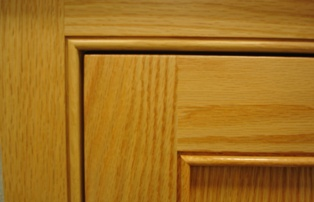

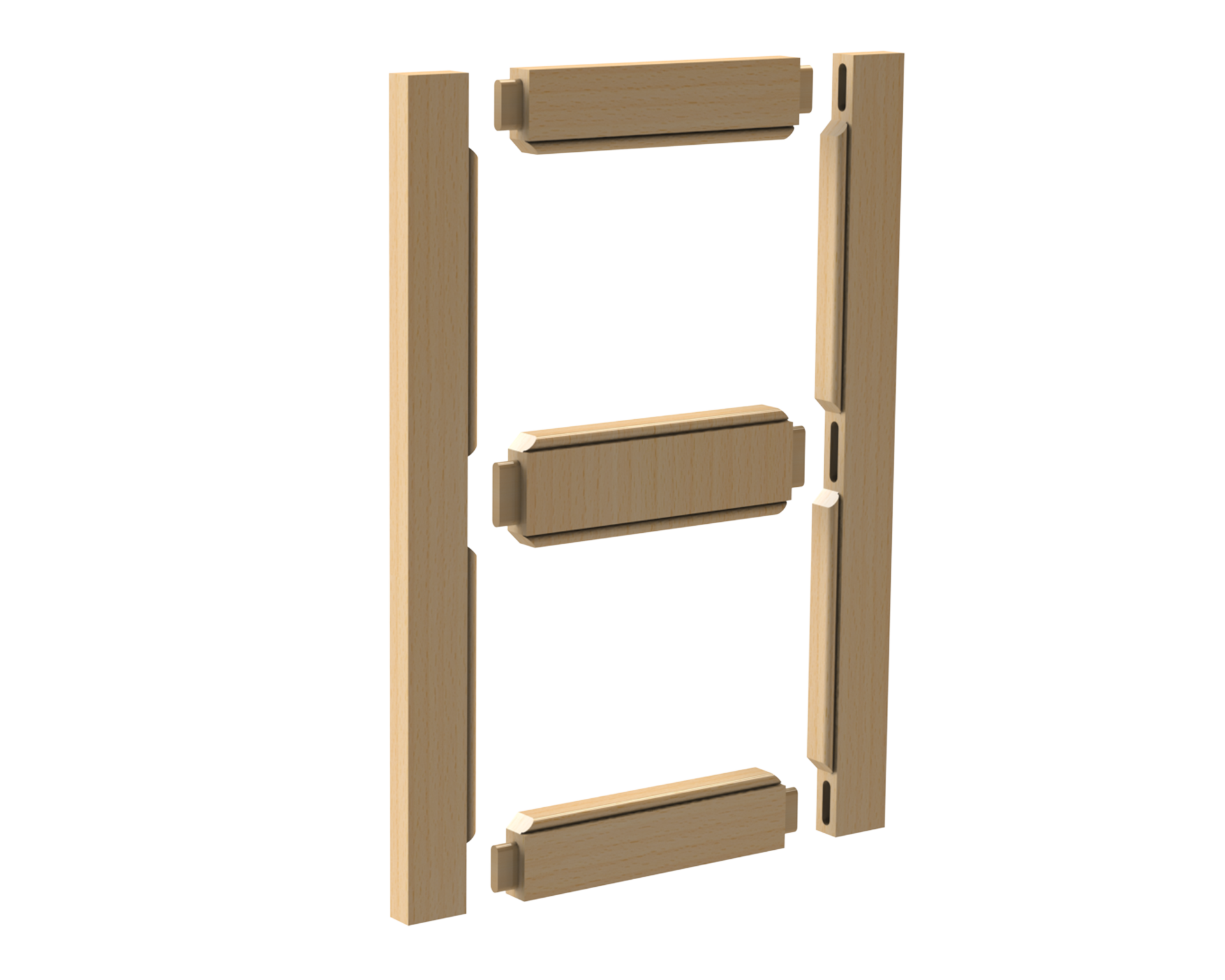

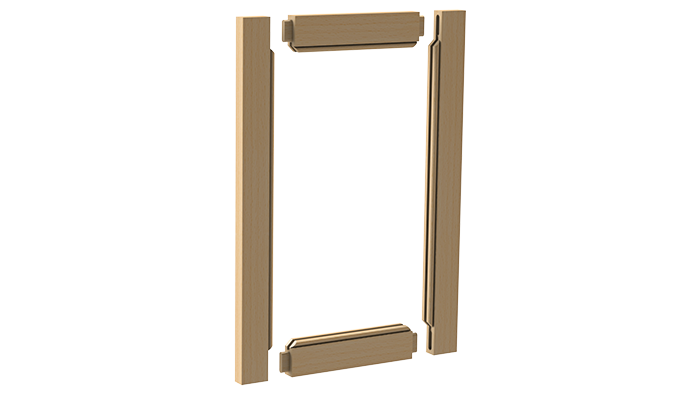

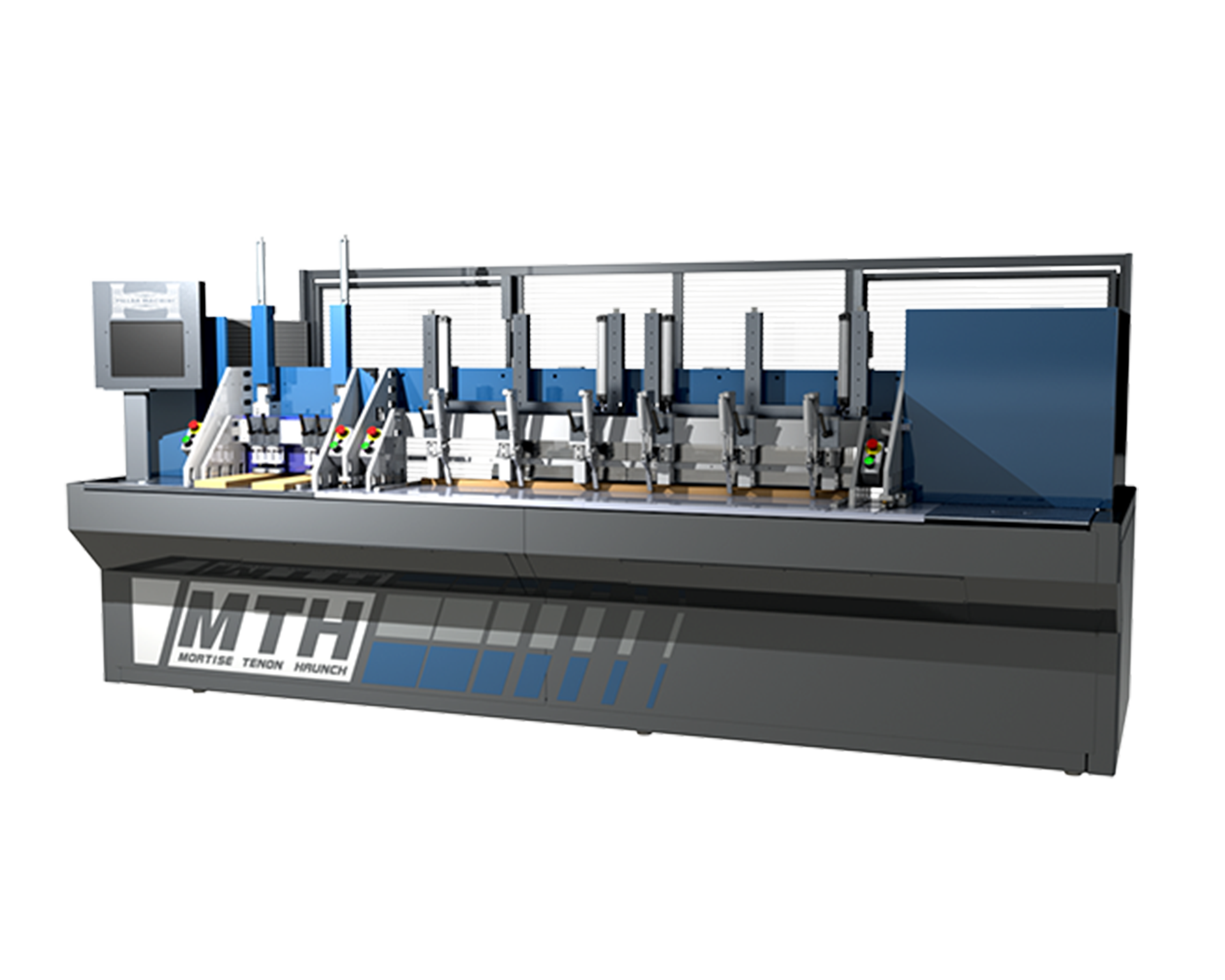

The MTH is a Multi-axis CNC Horizontal Machining Center. It is used for producing high quality Haunched Mortise & Tenon Joints which are used in many furniture and cabinet applications. The haunch head miters the profile for beaded face frame applications. The machine can be used to produce cabinet doors and entry door products as well.
-
Specs
•1″ Thick machined aluminum work surface for reliable referencing
•X, Y, Z and back fence Y axis control for positioning (4 total axis)
•15″ industrial color touchscreen for creating and/or selecting programs
•120″ zone for stiles – Left and Right hand fence
•12″ zone for rails – Left and Right hand fence
•1″ haunch depth (standard)
•3/4″ tenon height (standard)
•3 HP high frequency 18,000 RPM direct drive routing spindle for mortising
•7 HP high frequency 18,000 RPM direct drive routing spindle for tenoning
•3 HP spindle for haunching -
