MMTJ | Pillar | Mortisers & Tenoners

  • Power:
    230/460V 3PH
  • Description

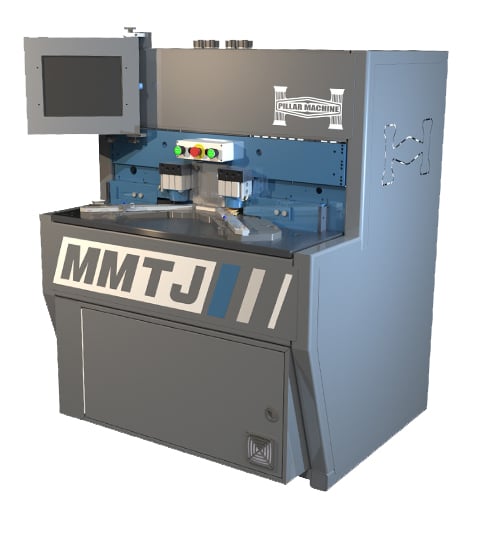

    The MMTJ is a full 3 Axis CNC machining center used for producing high quality miter joints used in cabinet door manufacturing. This machine produces between 175-200 doors per 8 hour shift with one operator. The easy to use software allows the operator to change from one saved program to another in seconds with only two touches to the screen. A password protected edit feature allows quick and easy editing of existing programs or creating new programs. A new program can be created from scratch in less than one minute with very little training.

  • Specs

    •3-Axis control for high quality joints and flexibility in machining various sizes of profiles. (X, Y and Z)

    •2 working zones

    •3 HP high frequency spindle for mortise (18,000 RPM)

    •6 HP high frequency spindle for tenon (18,000 RPM)

    •1″ x 3.5″ machining capability (larger sizes available upon request)

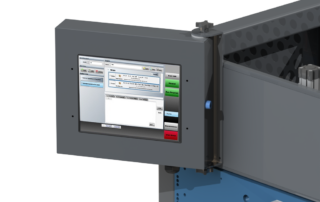

    •15″ industrial color touchscreen for creating and selecting programs
  • Download
