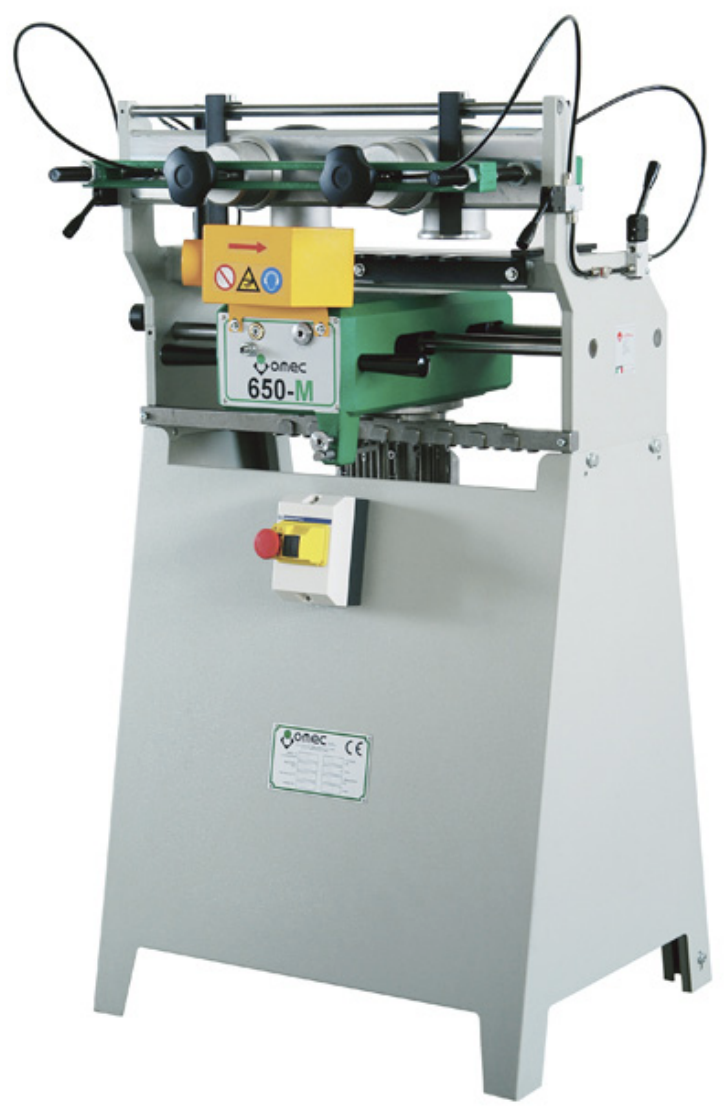

650M | Omec | Dovetailers

  • Power:
  • Description

    Omec 650M uses a 1 HP motor, linear bearings, adjustable eccentric bit, and comes with 4 templates standard. Clamping is done by four pneumatic cylinders for easier loading and unloading. The 16.5″ capacity enables you to make deeper drawers and chip breakers can be installed on the fences to minimize blowout on more difficult materials.

  • Specs

    On board machine installed power|1 HP

    Number of spindles|1

    Spindle revolutions|16,500 rpm

    Center to center of dovetail|0.98″, 1.57”, 1.97”, 3.15” (25mm-40mm-50mm-80mm)

    Machine net weight|286 lbs/130 kg

    Machine packaged weight|330 lbs/150 kg

    Overall dimensions|31.5″ x 28.35″ x 51.97″ (80cm x 72cm x 132cm)

    Packing dimensions|35.43″ x 29.53″ x 55.12″ (90cm x 75cm x 140cm) DIMENSIONAL LIMITS OF WORKPIECES




    Indent Height|0.31″(8mm)|0.71″(18mm)

    Front Thickness|0.28″(7mm)2.36″(60mm)

    Side Thickness|0.28″(7mm)|1.18″(30mm)
  • Download

Videos of Manual Dovetailer

650 M
