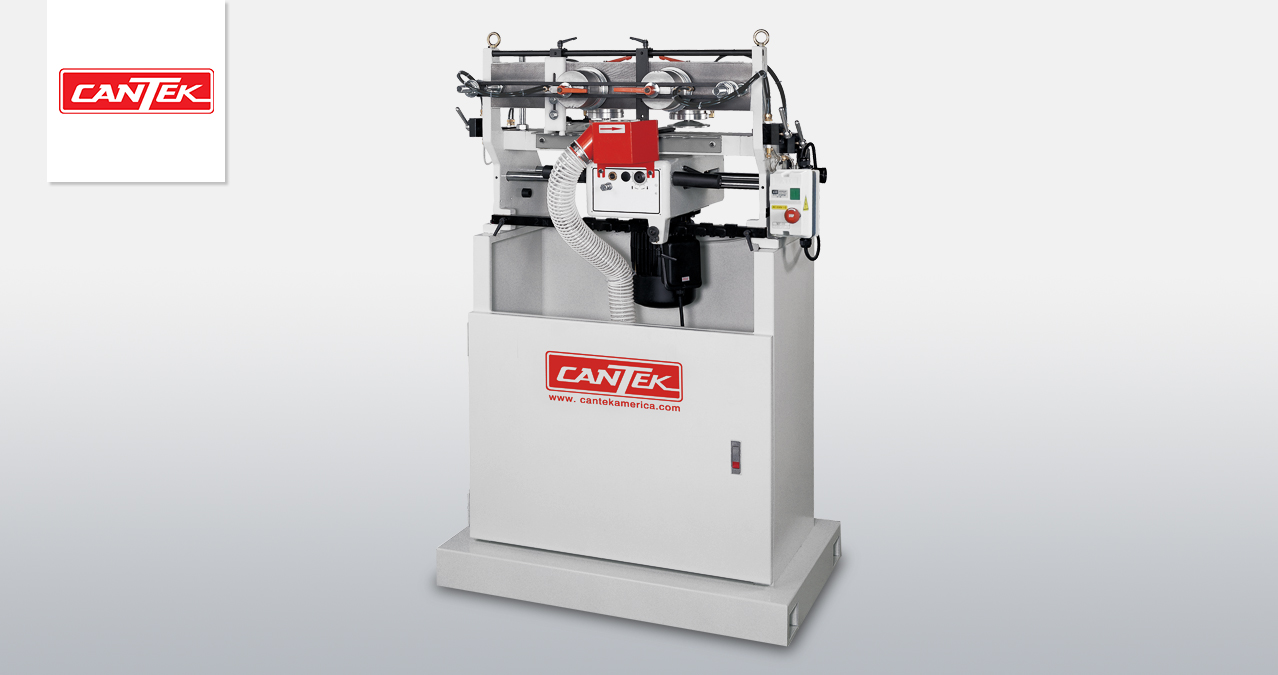

JDT65 | Cantek | Dovetailers

  • Power:
    230V 1PH 4.20AMPS
  • Description

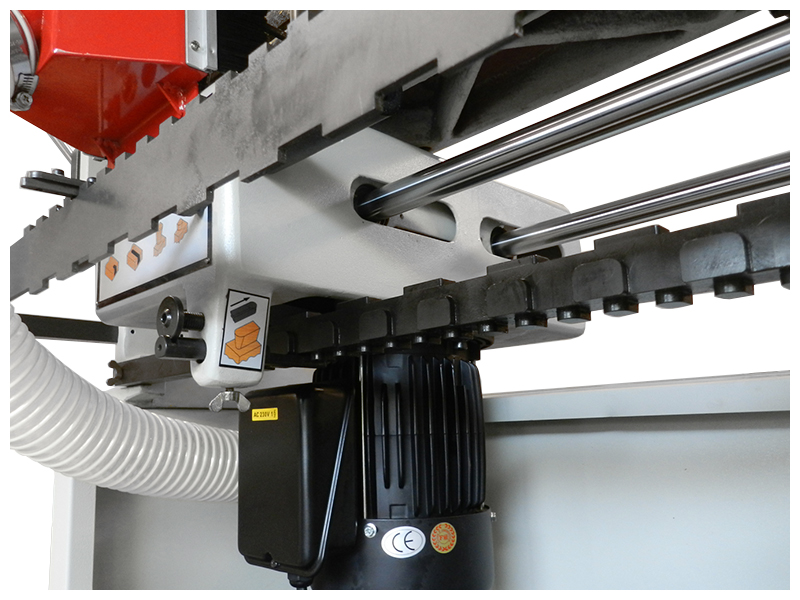

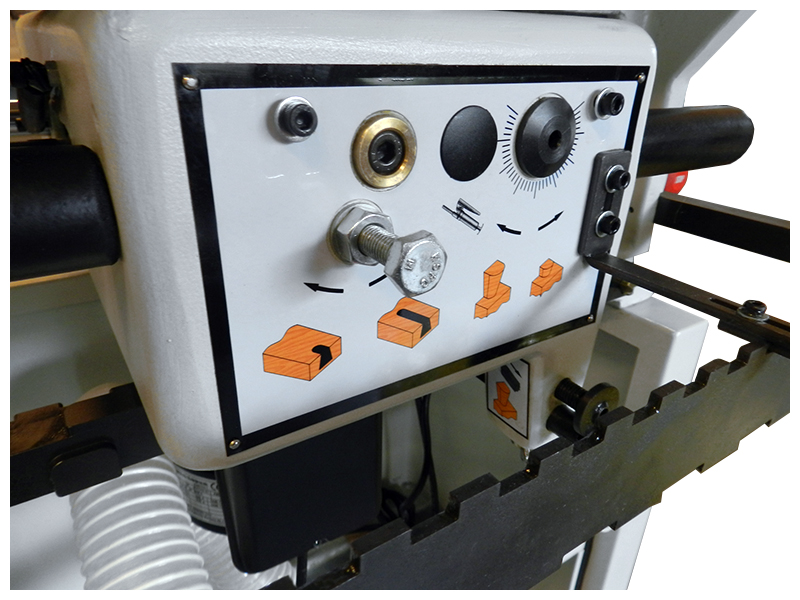

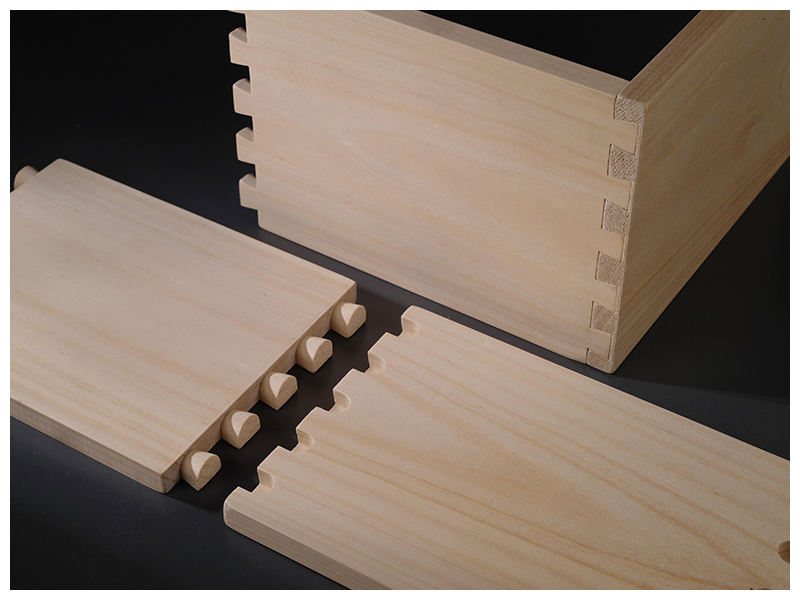

    Add prestige to your cabinets with aesthetically pleasing dovetail drawer boxes with the Cantek JDT65 manual dovetailer. Dovetails display your quality and are built to last!  Producing beautifully aesthetic dovetails for drawer box production from a wide range of wood types, including plywood and solid wood. The JDT65 machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity. The operator controls the dovetail unit by following a simple template allowing for ease of operation and quality joints.  Equipped with a choice of four pitch templates for varying types of dovetail joints.

  • Specs

    Minimum workpiece size|7.9″ x 2.4″

    Maximum workpiece size|59″ x 16.5″

    Minimum dovetail height|3/16″

    Maximum dovetail height|0.71″

    Minimum front thickness|0.28″

    Maximum front thickness|2.36″

    Minimum side thickness|0.28″

    Maximum side thickness|2.36″

    Number of spindles|1

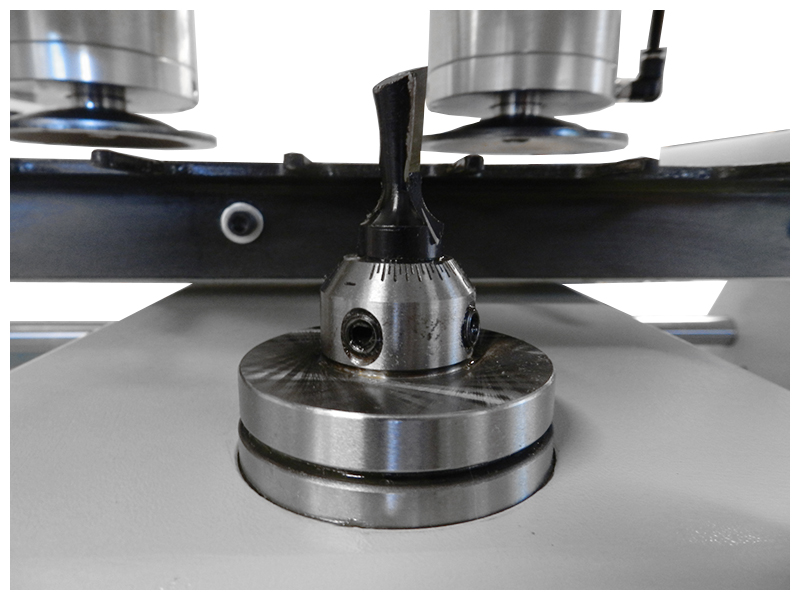

    Spindle speed (RPM)|18500 RPM

    Center spacing of dovetails|1″, 1.5″, 2″, 2.5″

    Table height from floor|46.5″

    Dust collection ports diameter|front 2.5″, rear 4″

    Air pressure requirement|6 bar

    Motor|1 HP

    Electrics|230/1/60 = 8.0 FLA

    Shipping dimensions|42 ½” x 30″ x 65 ½”

    N.W. / G.W.|440 lbs / 510 lbs.
