MU-3 | Hoffmann | Dovetailers

  • Power:
    120V 4.4AMPS
  • Description

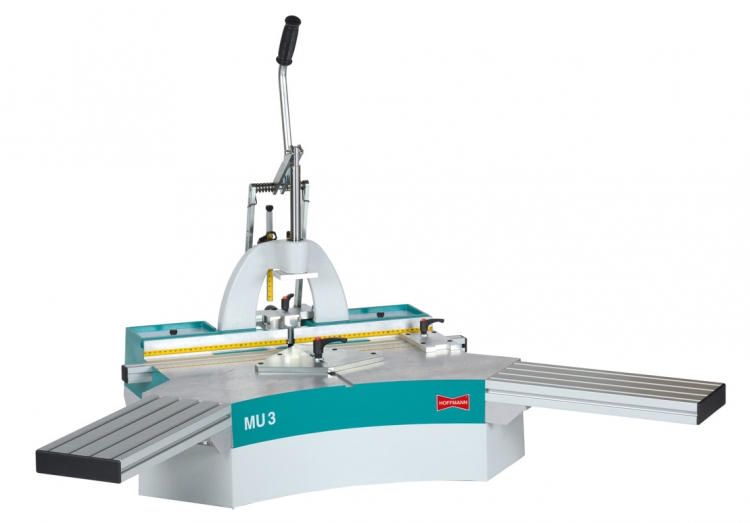

    Entry level, manually operated dovetail routing machine to rout a single dovetail keyway with each machining cycle. For Dovetail Key sizes W-0, W-1, W-2 and W-3.

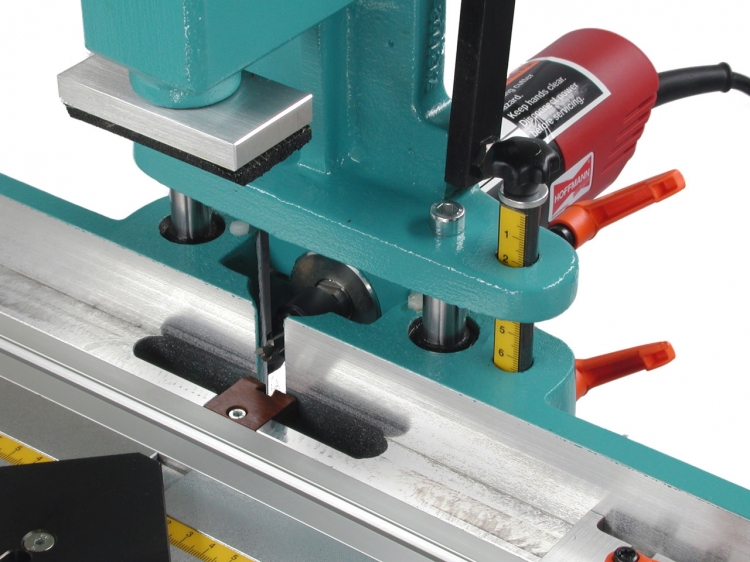

    The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting.

    Pulling the main lever downward starts the machining cycle:

    > Padded hold-down plate secures work-piece and motor is switched on

    > Continued pulling advances the router head until pre-set height is reached

    > Releasing the lever returns the motor to its home position and shuts off motor

    > Padded hold-down plate releases work-piece

    With the operator controlling the speed of all machine movements, output is greatly depended on material flow, handling and operator performance.

    The supplied router bit is solid tungsten carbide, made to exacting specifications. Depending on the routing depth and the material to be routed, the useable cutter life is approx. 10,000 strokes, often times even more. Every machine is shipped with a tool kit and set-up jig, which allows a router bit change in only minutes.

    Standard Features:

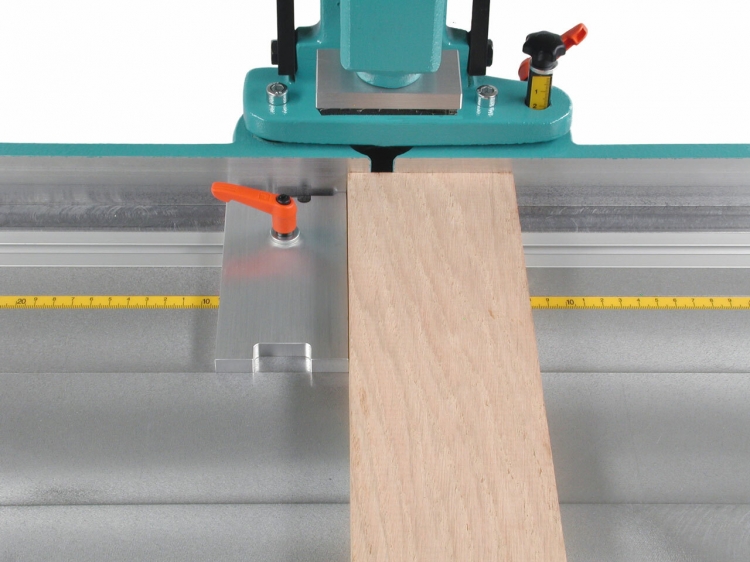

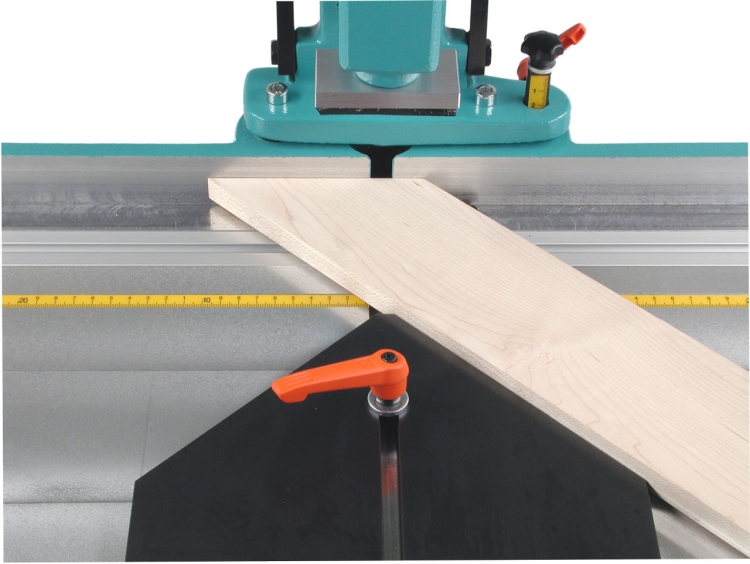

    Hoffmann Dovetail Routing Machine, model X20, ready for operation, W-2 solid carbide router bit installed, standard 45 degree center fence plate and square stop, toolkit and manual.

  • Specs

    Power Supply 120 volts – 7.4 Amps

    Motor 885 Watt motor with double front bearing

    Motor speed 35,000 rpm at idle

    Collet size 1/4”

    Motor carriage guides 20mm diameter guide rods, precision ground

    Operation manual– dual action design

    Max. height routing 3 3/8” – 85mm / moulding 5 1/8” – 130mm

    Dust collection port 2” – 50mm diameter

    Installed router bit W-2, solid carbide

    Available router bits W-0, W-1, W-2, W-3 (W-4 with optional larger motor)

    Dimensions W/D/H 29 1/8” x 25 5/8” x 32 3/4” (without optional table extensions)

    Weight 70.4 lbs.
