NM | Hoffmann | Face Frame Assembly

  • Description

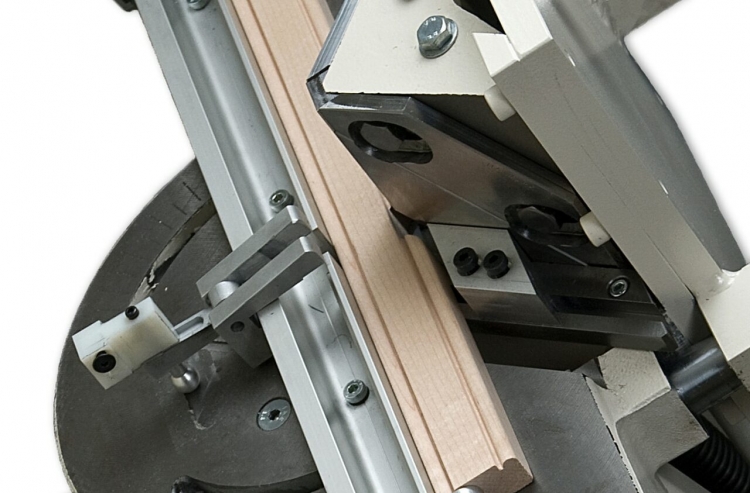

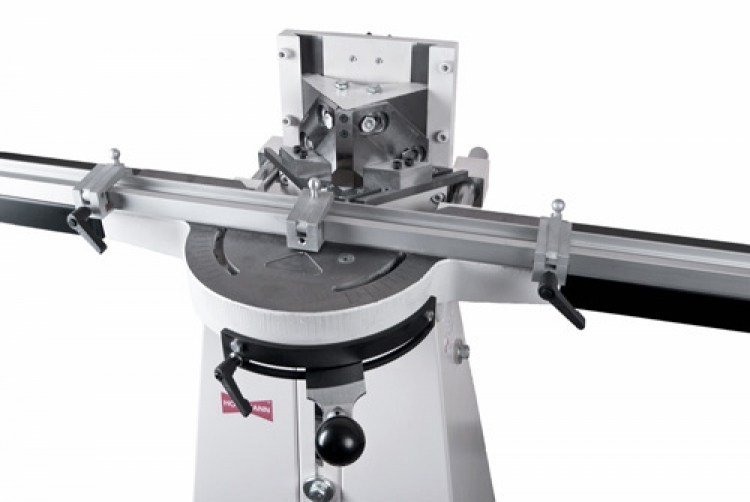

    The MORSO NM notching machine is manually operated, light-duty notching machine for the production of beaded face-frames, French-mitered cabinet doors as well as muntin and mullion joints. While this is smallest MORSO notching machine available, the manual operation of the machine, the shape of the cutting head and the MORSO length stop fences are based on the larger NFL and NFXL models. The main differences between the MORSO NM notching machine and the larger, heavy-duty MORSO NFL and MORSO NFXL notching machines are a smaller base frame and reduced footprint, lower table height, sheet-metal extension tables in place of cast-iron tables, overall lighter construction and smaller cutting head and knives. The center table is borrowed from a MORSO guillotine-style moulding chopper and the center stop is a flip-stop design.The vertical travel of the cutting head (and thus the resting position of the foot pedal) can be adjusted depending on workpiece thickness, assuring comfortable operation.

  • Specs

    Max. Moulding Width
    4″ (100mm)
    Max. Moulding Thickness
    3″ (75mm)
    Nose Knife Capacity
    1/2″ – 1″ width (1/4″, 5/16″, 3/8″ with optional smaller NM cutting head)
    Extension Tables
    sheet metal construction, black finished surface, 18 3/4″ long, one left and one right hand side
    Fence Rails
    silver anodized aluminum, 59 1/2″ total length, one left and one right hand side
    Flip Stops
    aluminum, with locking lever, one per side plus one center stop
    Table Height
    33″ – floor to table surface
    Width Including Fence Rails
    63″
    Weight
    110 lbs.
