NFL | Hoffmann | Face Frame Assembly

  • Description

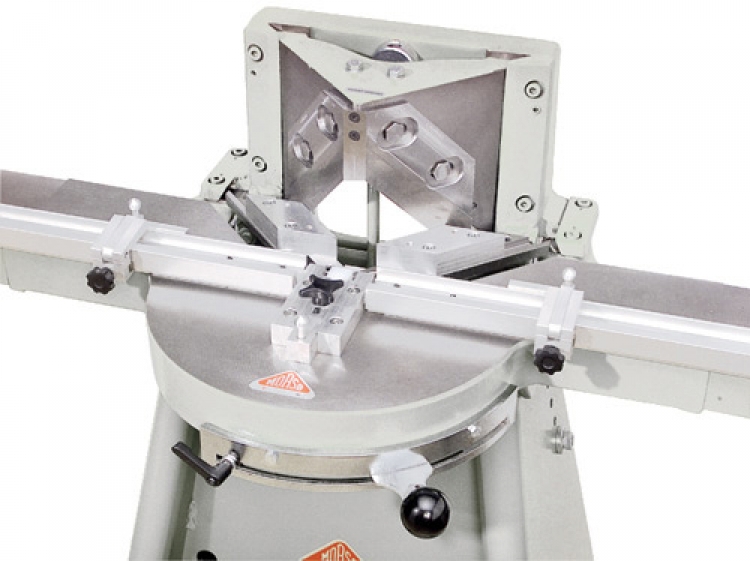

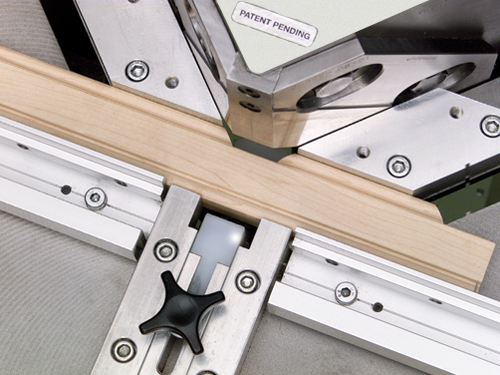

    The NFL notching machine is a heavy-duty, foot pedal operated notching machine for the production of beaded face-frames, French-mitered cabinet doors as well as muntin and mullion joints.  This manual model will accept moulding up to 2 3/4″ wide, allowing the operator to process many types of standard face frame moulding, except wider bottom and top rails. The machine features a heavy-duty steel frame with cast iron tabletop. The vertical travel of the cutting head, which is also made of cast-iron, can be adjusted depending on work-piece thickness, assuring comfortable operation.

    Factory-fitted cast-iron extensions tables for left and right side are included and so is a full set of MORSO U-channel fences and flip-stop (optional DGS 1000 fence system is a popular upgrade).

  • Specs

    Max. Moulding Width

    2 3/4″ (70mm)

    Max. Moulding Thickness

    6 1/4″ (155mm)

    Machine Controls

    manually controlled with hand lever and foot pedal

    Nose Knife Capacity

    1/2″ – 1″ width (1/4″, 5/16″, 3/8″ nose knives require smaller cutting head)

    Extension Tables

    heavy cast iron, machined surface, 30 3/4″ long, one left and one right hand side

    Fence Rails

    silver anodized aluminum, 59 1/2″ total length, one left and one right hand side

    Table Height

    33″ – floor to table surface

    Width Including Fence Rails



    220 lbs.
